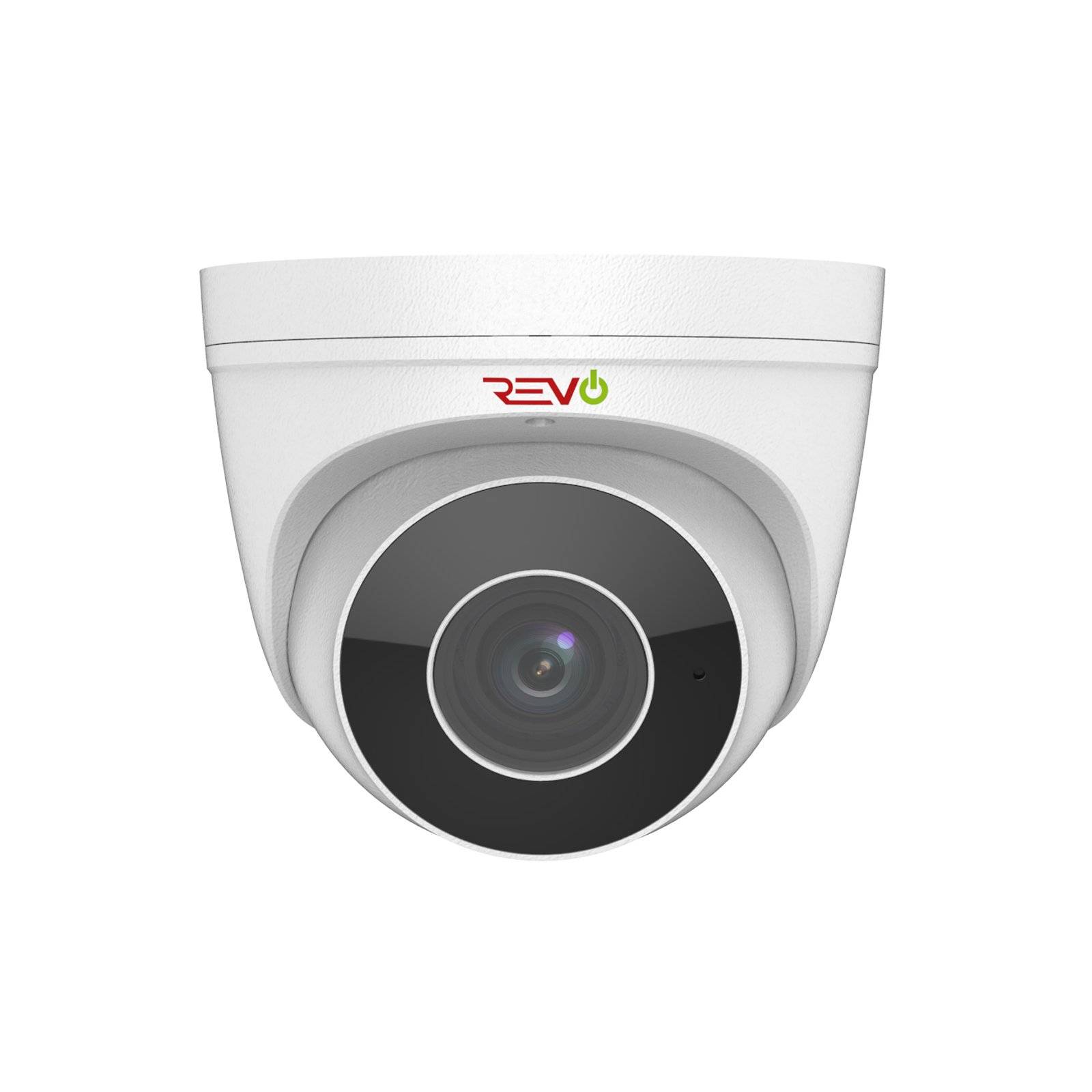

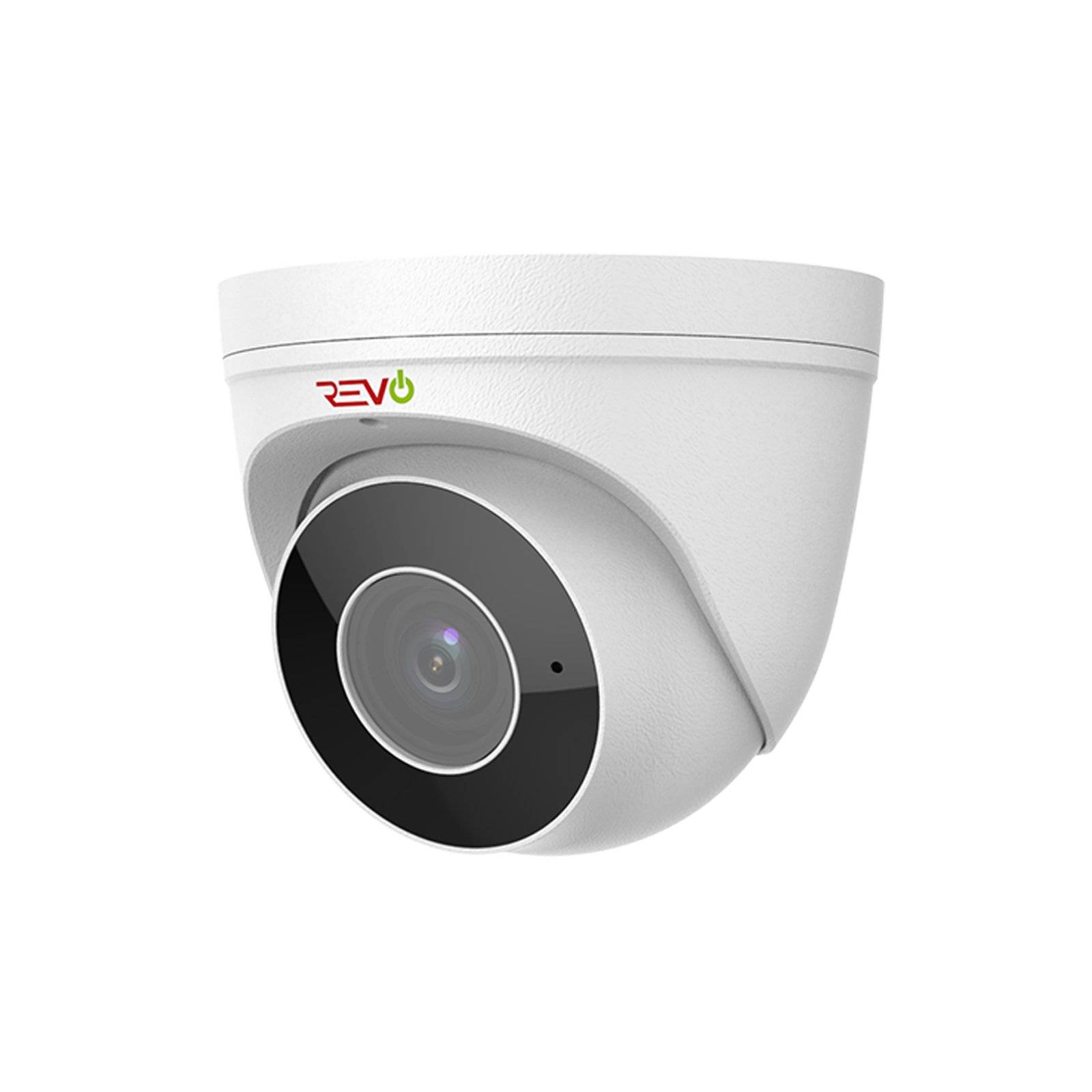

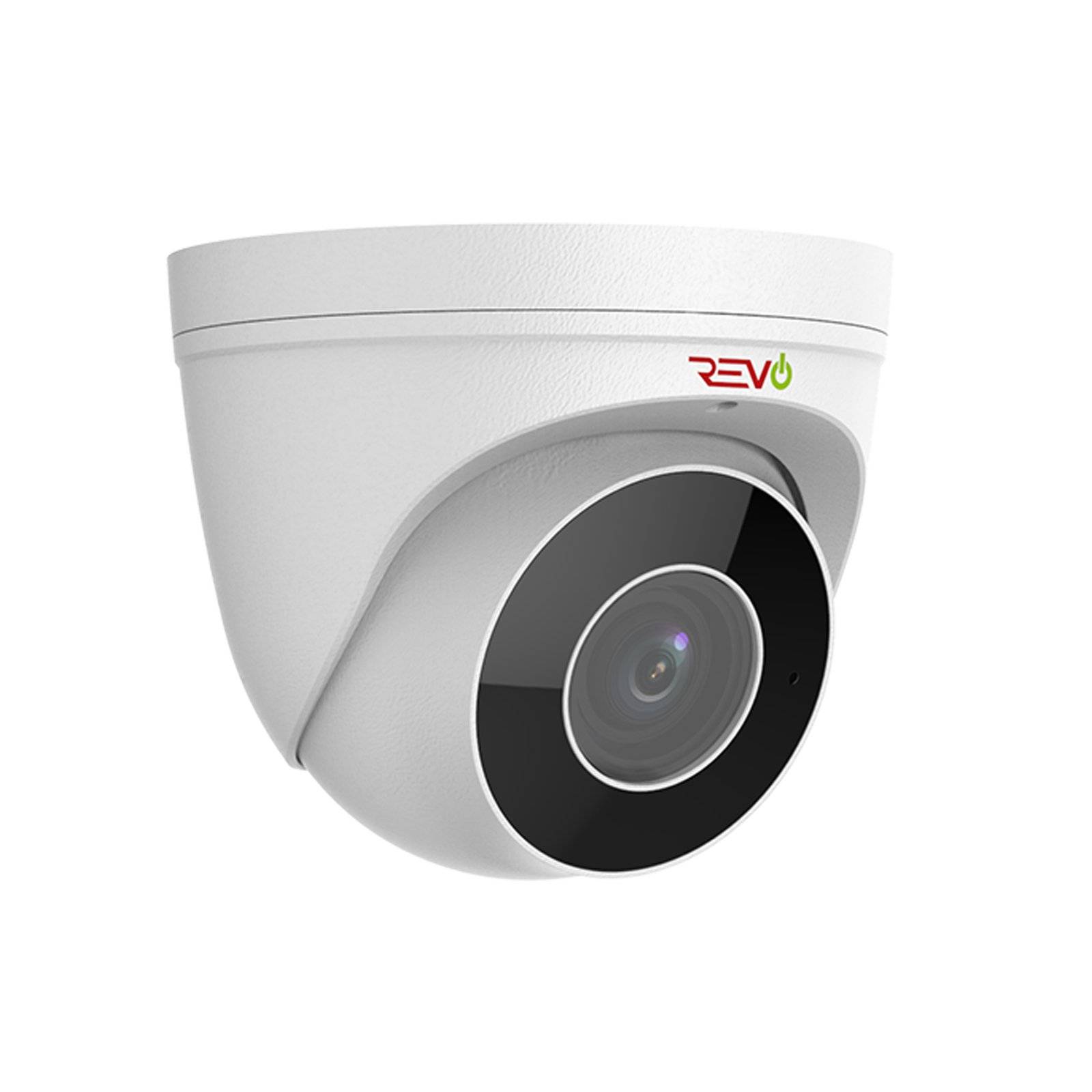

RUCT2812-1 4MP WDR (Motorized) VF Eyeball Network IR Camera
| Camera | |
|---|---|
| Sensor | 1/3″, progressive scan, 4.0 megapixel, CMOS |
| Lens | 2.7~12 mm,AF automatic focusing and motorized zoom lens |
| Angle of view(H) | 91.0°~27.0° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.01 Lux (F1.4, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
|---|---|
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
|---|---|
| Behavior Detection | Intrusion, cross line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
|---|---|
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|---|---|
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 8.16W |

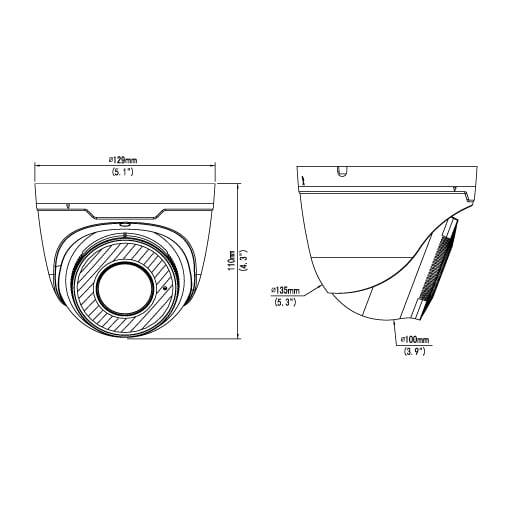

| Dimensions (Ø x H) | Φ129 x 110 mm (Ø5.08” x 4.3”) |
| Weight | 0.67 kg (1.48lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |

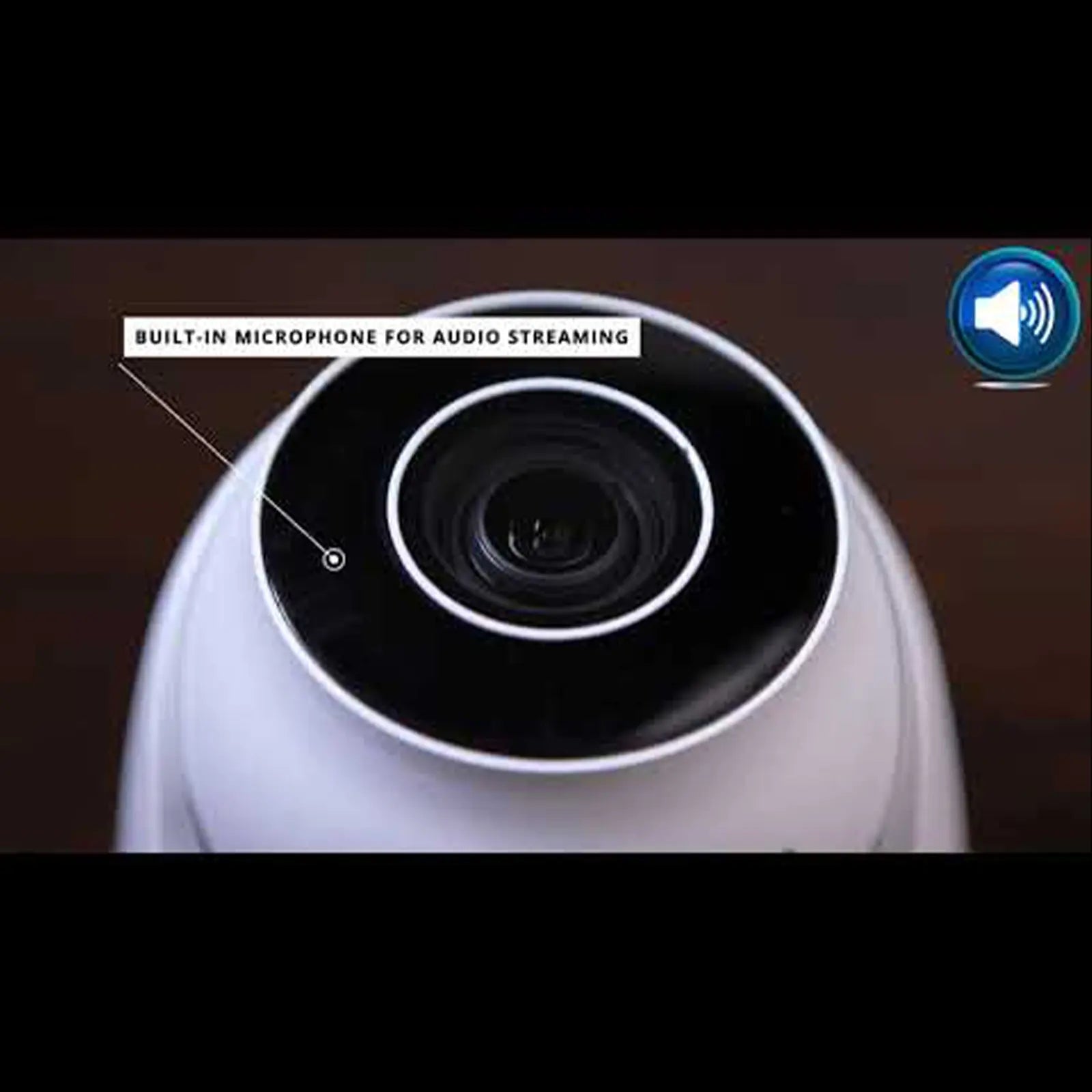

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra Plus offers additional features perfect for professional and premium residential applications. The RUCT2812-1 Revo Ultra Turret camera with Motorized Varifocal technology delivers incredible video quality of the standard Revo Ultra cameras with the added powerful ability to zoom in and out remotely. The REVO ULTRA Turret camera also come equipped with built-in Microphone for audio streaming and recording. The RUCT2812-1 comes equipped with Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -40F, rain or shine. The RUCT2812-1 steps up its weather resistant with an IP67 rating. When it comes to surveillance, every detail counts. Added features make the RUCT2812-1C not only powerful, but widely compatible. ONVIF conformance maximizes the compatibility of this camera for plug and play convenience. 4KV surge protection protects your investment. Finally, triple stream capability ensures the best video quality optimized for any connection speed. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
Features


Software Upgrade Via Cloud
Updating the Software of your REVO camera is fast and intuitive via the cloud. The software update can be initiated by the user from the system menu once an update is available.
Advanced Remote Access
You can monitor the security cameras from anywhere at anytime.
- Smart Phones & Tablets – REVO ULTRA Mobile App
- Browser Login – MyRevoCloud
- PC – REVO ULTRA REMOTE Software
Keep an Eye on your place, Even when you’re not there
Includes:
- 1 x 4MP Turret Camera
- 1 x 100ft. Cat 5e Cable
- Camera Mounting Screws
- Quick Start Guide
- Dimesions: 5.8” x 4.3”
- Weight: 1.7 lb
- Video Streaming: Triple
- Video Compression: H.265, H.264 & MJPG
Features

4X Optical Zoom
The Professional Grade 4K Motorized Varifocal Lens camera make it easy to monitor large areas. This unique feature allows the user to adjust the angle of view and zoom in and out remotely with adjustable 2.8 to 12mm motorized lens. It provides up to 175ft. of Night Vision distance.

4MP Resolution
Go beyond Full HD and experience the power of 4 Megapixel ULTRA HD Video. Double the power of 1080p standard HD. The cameras are equipped with high performance 4 Megapixel (2592×1520) image sensor and lens. This ensures ultra-high definition video with realistically vivid details.

True WDR
The ULTRA camera features true 120db WDR (Wide Dynamic Range). This high end feature allows the camera to generate clear overall image under strongly backlit or similar harsh lighting conditions. It is very useful for cameras installed indoors that will have a view with a large glass windows in the background that will let in bright sunlight.

Adjustable Angle of View
The ULTRA camera has a specialized vari-focal motorized lens for adjustable field of view coverage. The camera is very versatile and provides a coverage of 27° to 91°. It is very easy to adjust the horizontal field of view of the camera from the NVR interface, mobile app or PC/MAC browser.
More Features

Weather Resistant
The ULTRA camera work great no matter where you install it. The camera housing is designed to work outdoors and can handle temperatures as hot as 140°F and as cold as -31°F, rain or shine.

4th Generation LEDs
The ULTRA camera is equipped with the latest 4th Generation IR LEDS to provide the night vision range (175ft) and up to 50% better IR dispersion. The industrial automotive grade IR LEDs display night vision video vividly and with full detail. Night Vision quality is unmatched.

3DNR
Another great feature that is supported on ULTRA camera is 3DNR (Dynamic Noise Reduction). This high end feature helps the camera deliver crystal clear images by reducing the noise present in the video. Also, 3DNR reduces bandwidth and storage requirements.
Specs and design can change without previous notice
