Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
Save more with bundle deals!

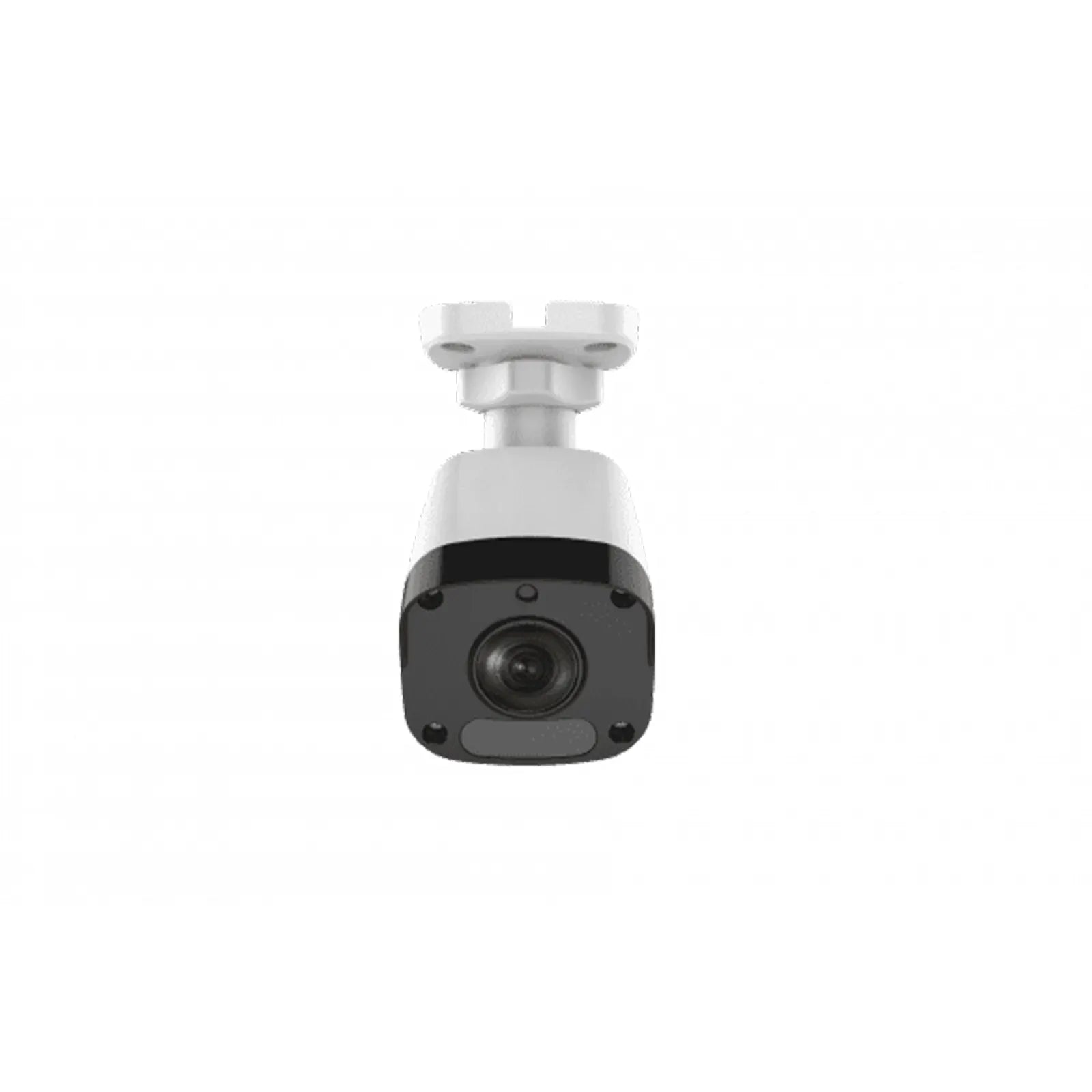

RUCB36-1AX 4MP Mini Fixed Bullet Network Camera with Audio
| Camera | |
|---|---|
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.8 |
| Angle of View (H) | 82° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N | >56dB |
| IR Range | Up to 98 ft (30 m) |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline, Main, High |
| Frame Rate |
Main Stream: 4MP (2688×1520) Max 30fps; 4MP (2560×1440) Max 30fps; 3MP (2304×1296) Max 30fps; 1080P (1920×1080) Max 30fps Sub Stream: 4CIF (704×576) Max 30fps Third Stream: CIF (352×288) Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Image | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° |
| HLC / BLC | Supported |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 kHz |
| Storage | |
|---|---|
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Smart | |
|---|---|
| Behavior Detection | Intrusion, Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Client | REVO ULTRA Myrevocloud REVO ULTRA REMOT |
| Interface | |
|---|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
|---|---|
| Power | 12 V DC ±25%, PoE (IEEE802.3 af), Max 6.4 W |
| Dimensions (L × W × H) | 165 × 63.1 × 62.5 mm (6.5” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ +140°F), Humidity 10%~95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Surge Protection | 2KV |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's RUCB36-1C Bullet Camera is based on IP technology. IP, or Internet Protocol, technology brings the power and beauty of digital high definition video right to the heart of your surveillance system. The Revo Ultra Bullet camera come equipped with built-in Microphone for audio streaming and recording The “RUCB36-1AC” Bullet Camera takes it one step further, featuring, optical grade, IR optimized glass, 3D Digital Noise Reduction, H.265 compression, and massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. Revo Ultra cameras also come equipped with Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. When it comes to surveillance, every detail counts.
Specs and design can change without previous notice
