SKU: RUCMD28-2XC

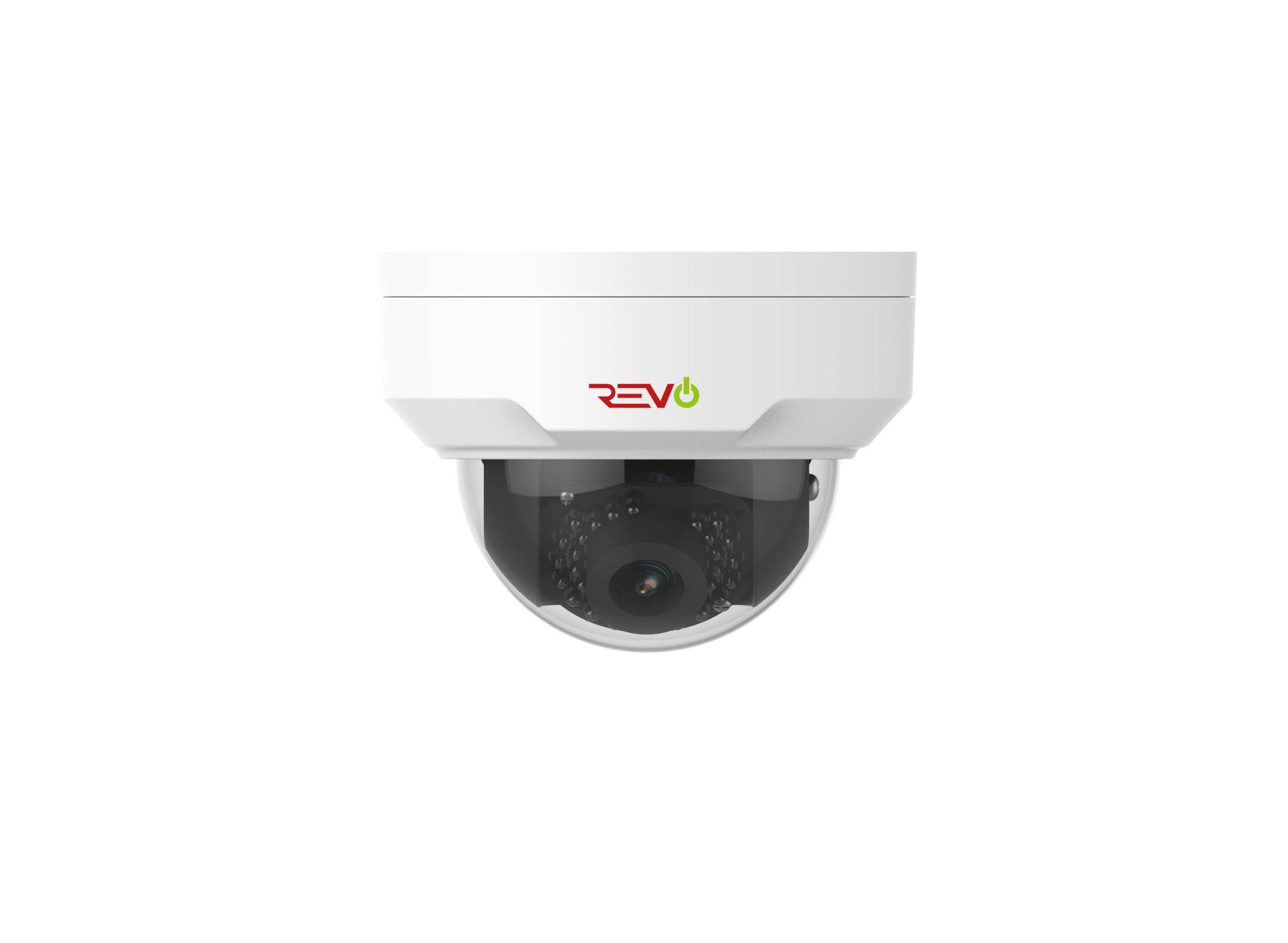

4th Gen Ultra HD 4 Megapixel IP Surveillance Mini Dome Camera
4th Gen Ultra HD 4 Megapixel IP Surveillance Mini Dome Camera
Couldn't load pickup availability
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
Save more with bundle deals!
RUCMD28-2XC 4MP Network IR Fixed Dome Camera
| Camera | |
|---|---|
| Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 77.6° |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR | 100 ft IR range |
| AWB(Auto white balance) | Auto/manual |
| Gain Control | Auto/manual |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| 9:16 Corridor Mode | Supported |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC±25%, PoE (IEEE 802.3af) Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
| Weight | 0.45 kg (0.99 lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's RUCMD36-1C Mini Dome Camera is based on IP technology. IP, or Internet Protocol, technology brings the power and beauty of digital high definition video right to the heart of your surveillance system. The Revo Ultra RUCMD36-1C Mini Dome Camera takes it one step further, featuring, Smart IR LEDs, 3D Digital Noise Reduction, and massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. Revo Ultra cameras also come equipped with Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. When it comes to surveillance, every detail counts.
Specs and design can change without previous notice
