SKU: RUP321B32G-8T

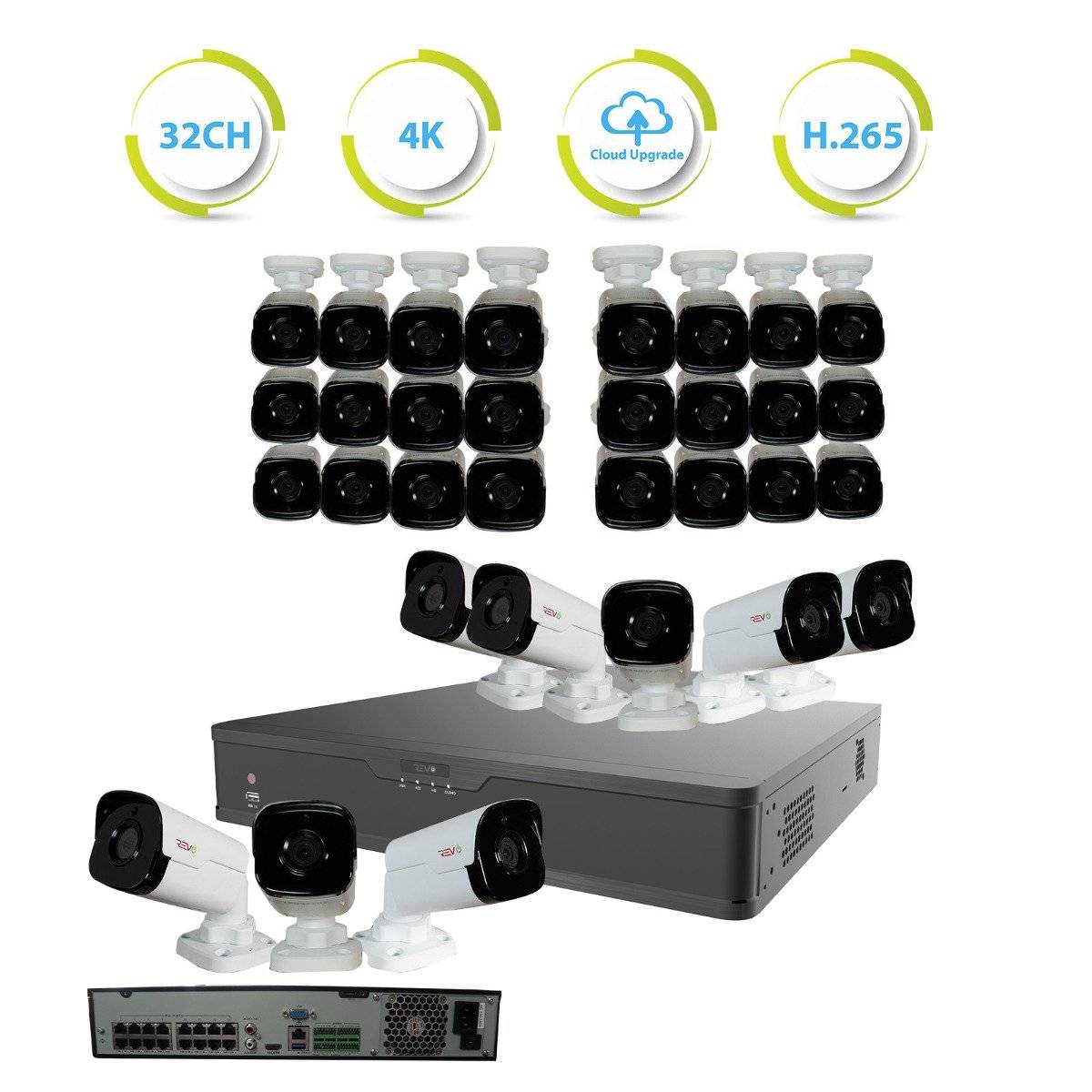

Ultra Plus HD 32 Ch. 8TB NVR Surveillance System with 32 Bullet Cameras

Ultra Plus HD 32 Ch. 8TB NVR Surveillance System with 32 Bullet Cameras

In stock
$3,999.99
$3,999.99
Sale Sold out
Guaranteed Safe Checkout pyament-icon
icon1

Free delivery

over $100

iocn2

Same day

dispatch

icon3

2-year

warranty

Key Features

  • 32 Ch. 8TB H.265 IP NVR with 16 RJ45 PoE Ports + 16 Ch. PoE Switch
  • 4MP Indoor/Outdoor IP Bullet Cameras with 100’ Night Vision (32)
  • 100’ Cat 5e Cable Included (32)
  • 1-ch VGA and 1-Ch HDMI (4K)
  • Supports up to 12MP Cameras
  • Supports easy firmware upgrade via Cloud (Recorder & Cameras)
  • 32TB Max Hard Drive Capacity
  • Corridor View Mode – Perfect for hallways, doors, windows.
  • Two-Step Smartphone View Setup – iPhone and Android
  • myrevocloud – Access your Ultra NVR from virtually any Internet Explorer browser
  • Revo Ultra EZStation Computer Software – Conveniently view multiple units at once
View full details
Also Available in a complete security bundle

Also Available in a complete security bundle

This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.

VIEW BUNDLE OPTIONS

Save more with bundle deals!

...

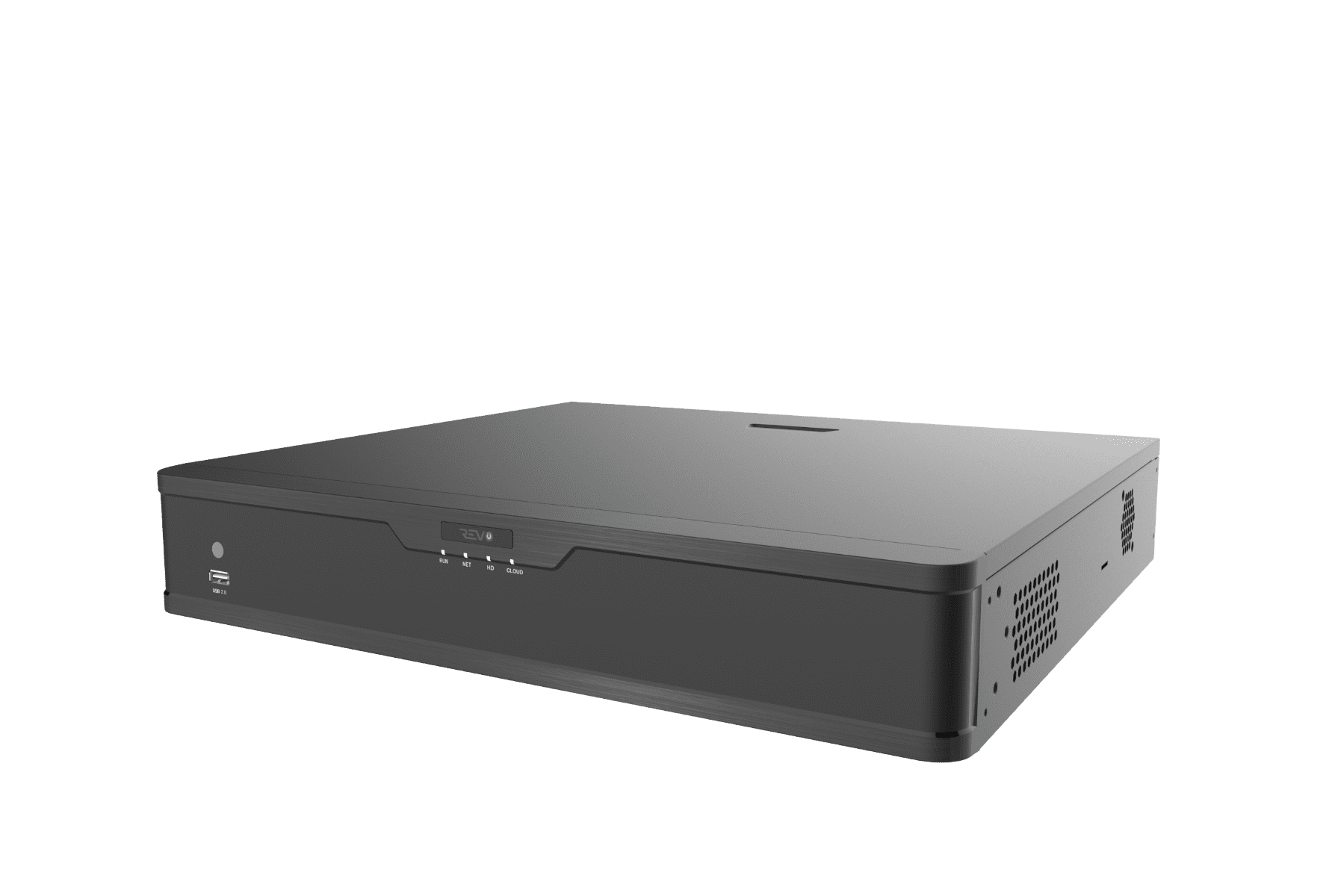

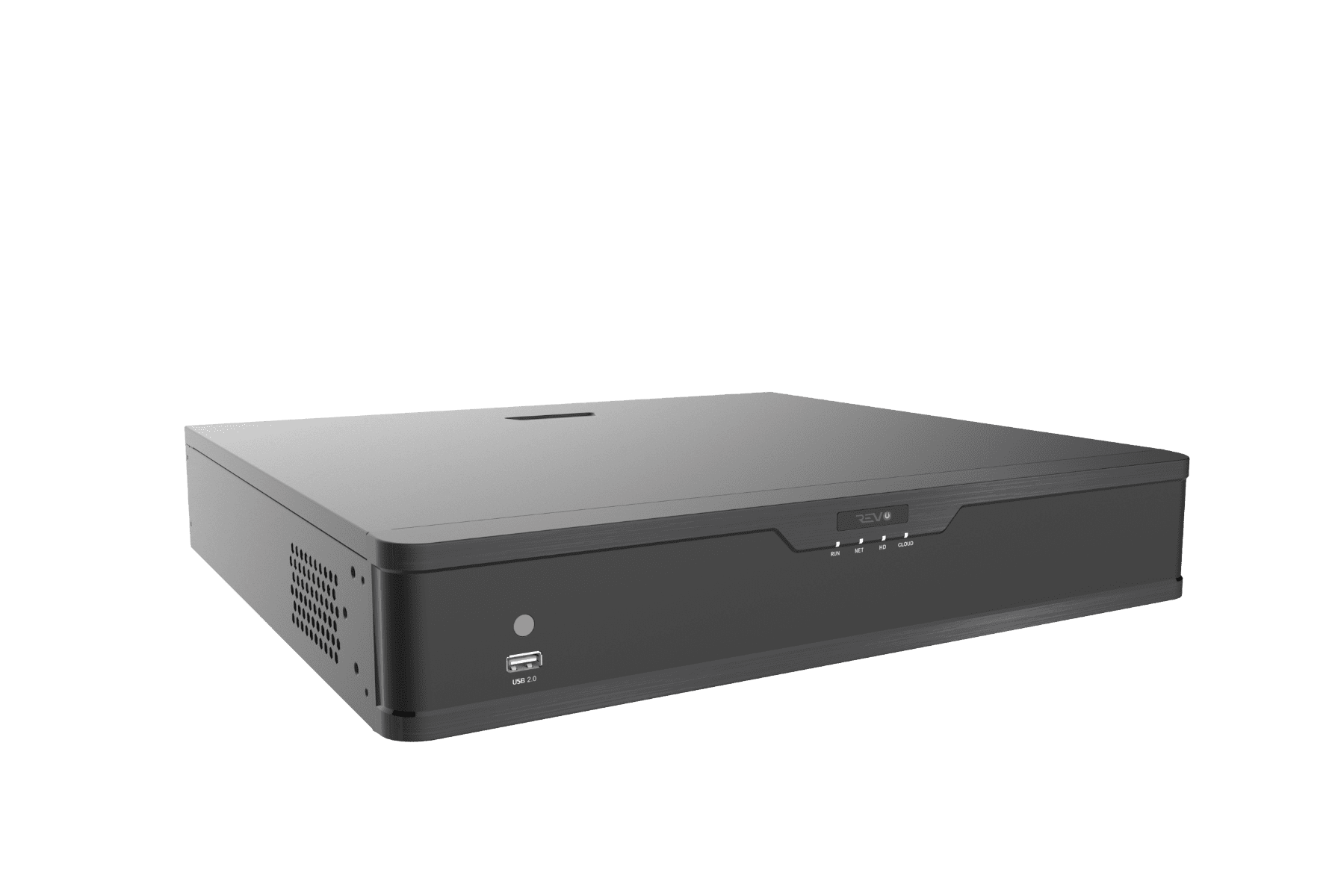

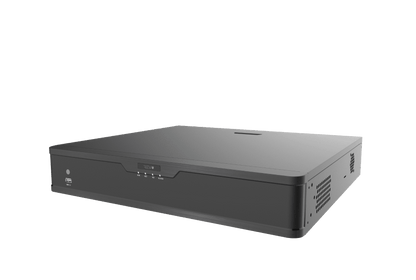

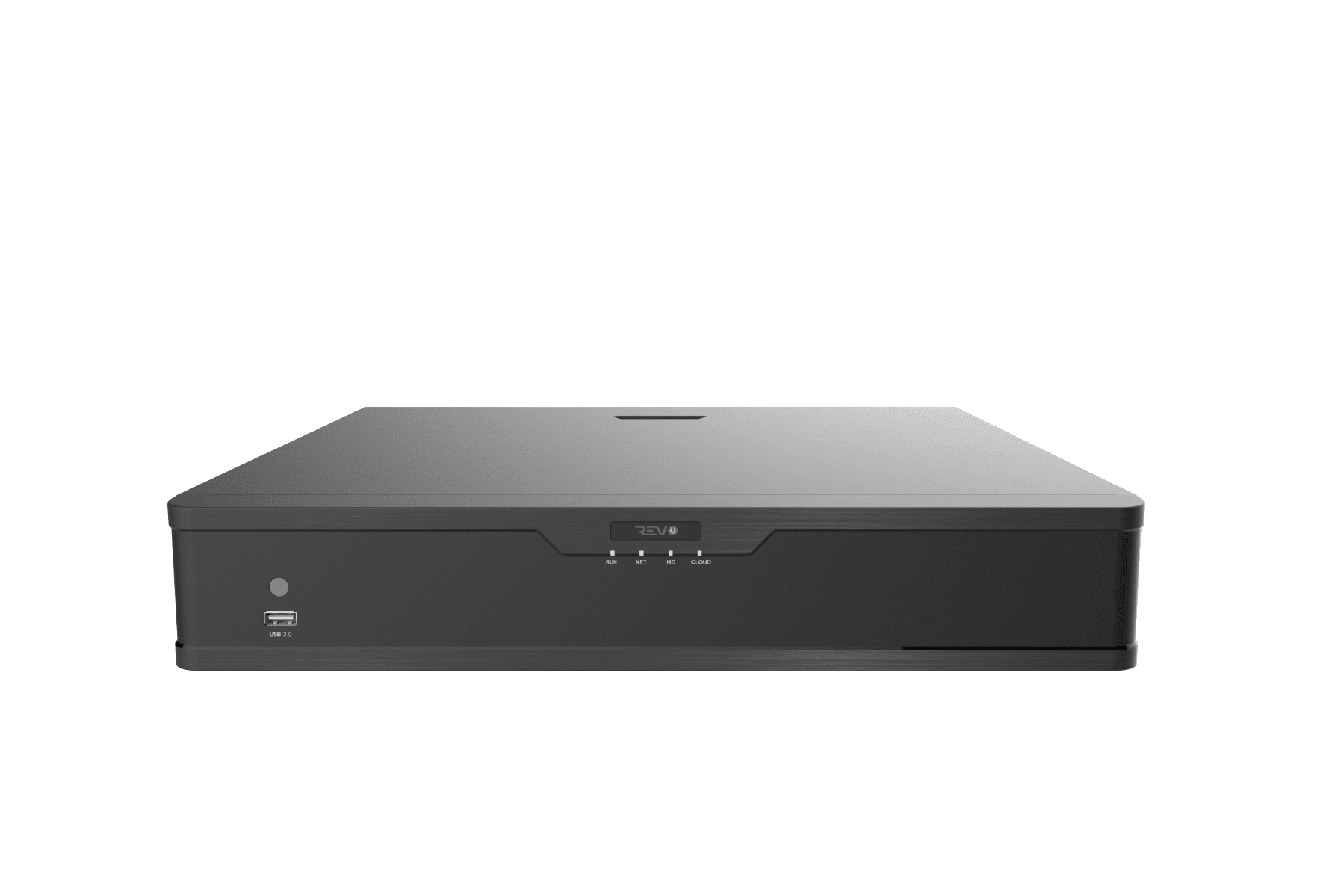

DVR-RUP32NVR1 32 Channel Digital Video Recorder

Video and Audio
IP Video Input 32-ch
Two-way audio Input 1-ch, RCA
Network
Incoming bandwidth 320Mbps
Outgoing bandwidth 320Mbps
Remote connection 128
Video/Audio Output
HDMI/VGA Output HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Decoding
Compression H.265/H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30
Software
Computer Operating System Windows, Mac OS
Internet Viewing HomeSafe View App
Handheld Device Supported iOS, Android, 3G/4G Smartphones & Tablets
Hard Disk
SATA 4 SATA interface
Capacity up to 8TB for each disk

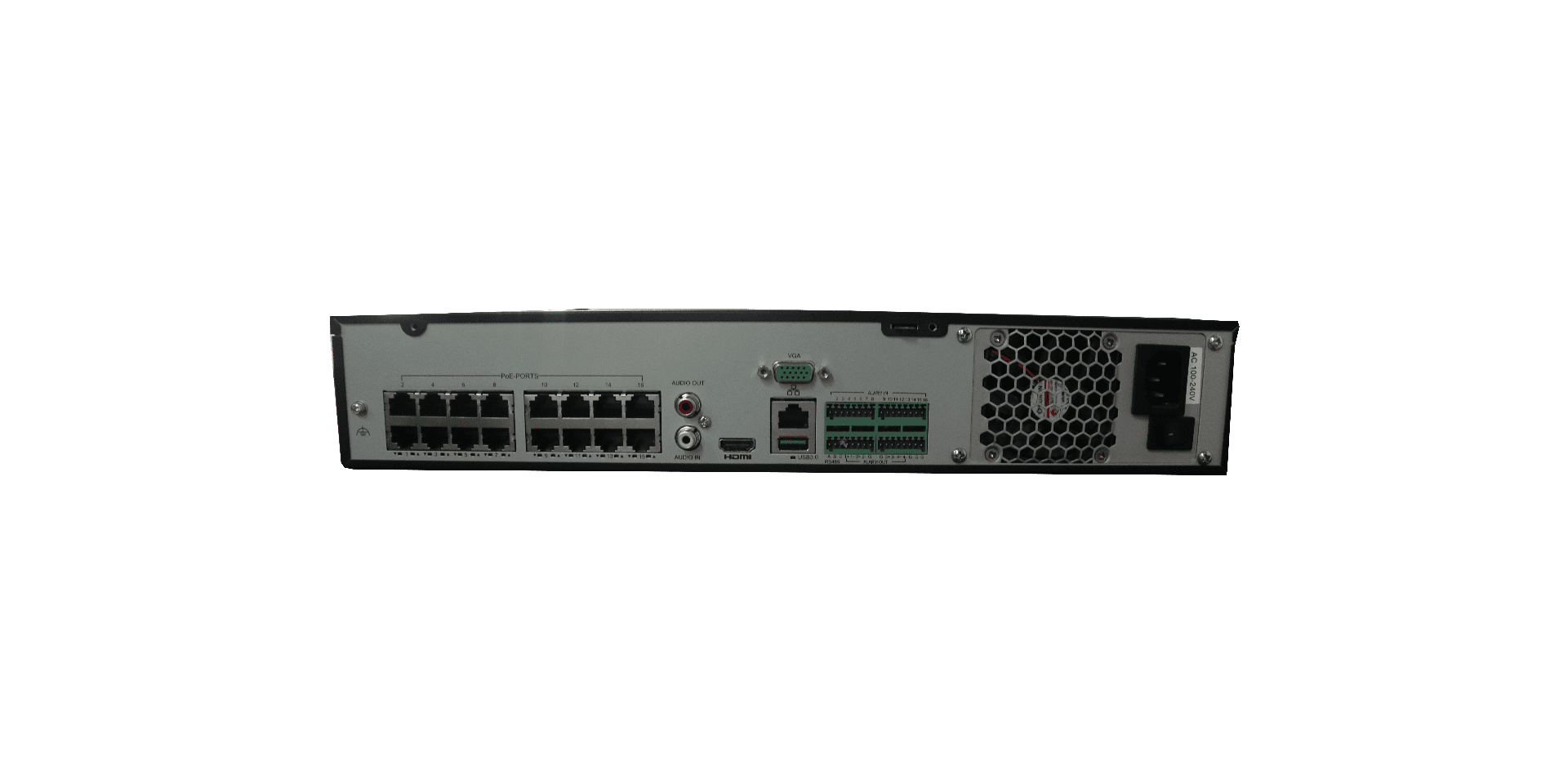

External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
Serial Interface 1 x RS485
USB Interface Front panel: 1 x USB2.0 Rear panel: 1 x USB3.0
Alarm in 16-CH
Alarm out 4-CH
Power Output 12 VDC
PoE
Interface 16 independent 100 Mbps PoE network interfaces
Max Power Max 30 W for single port Max 200W in total (12.5 W for each)
Supported Standard IEEE 802.3at
General
Power Supply 100 ~ 240 VAC
Consumption ( without HDD and PoE ) ≤ 20 W
Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity 10% ~ 90%
Dimensions 86 × 442 × 425mm ( 3.4” × 17.4” × 16.7” )
Weight ( without HDD ) ≤ 11.55 lb (5.24 Kg)
...

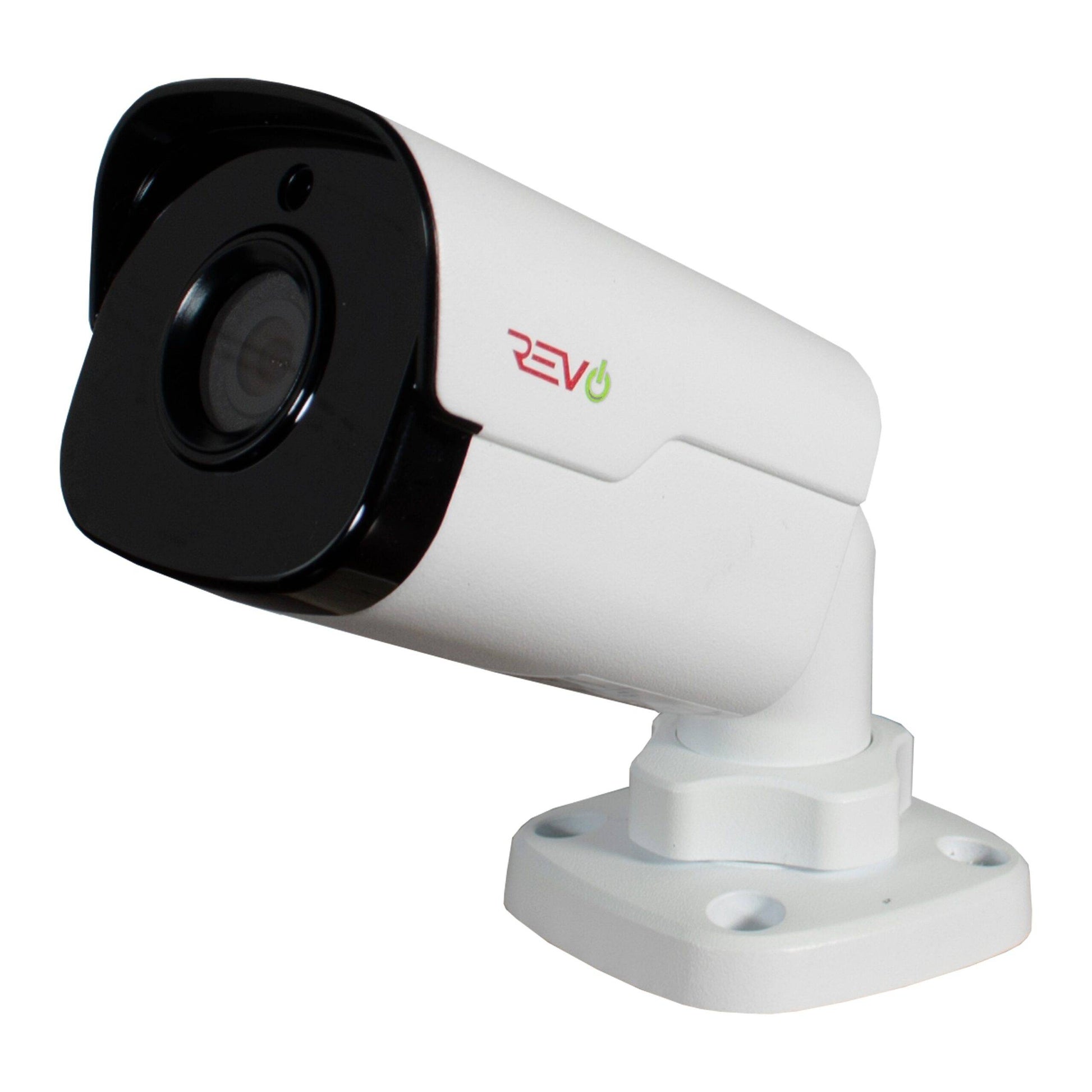

RUCB36-1 4MP IR Bullet Camera

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 3.6mm@F1.8 Angle of view(H): 90.5°
Shutter Auto/Manual, 1/6~1/8000 s
Min. Illumination Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 30m (98 ft) IR range
S/N >55dB
WDR 120dB
Noise Reduction 2D/3D
Video
Max. Resolution 2592×1520
Video Compression H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Motion Detection Up to 2 areas
Privacy Mask Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af
2.0 W (6.4 W with IR on)
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection IP66
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Enjoy additional professional and premium-residential features with Revo Ultra Plus™. The Revo Ultra's superb video quality is based on IP, or Internet Protocol, technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. Revo Ultra Plus™ NVRs feature state of the art 4K Video Output, H.265 Compression, support up to 12MP Cameras and up to an astounding 32TB of Hard Drive Capacity. View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using myrevocloud, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. Pre-event recording includes video before motion is detected providing valuable context leading up to the incident. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.

Specs and design can change without previous notice
