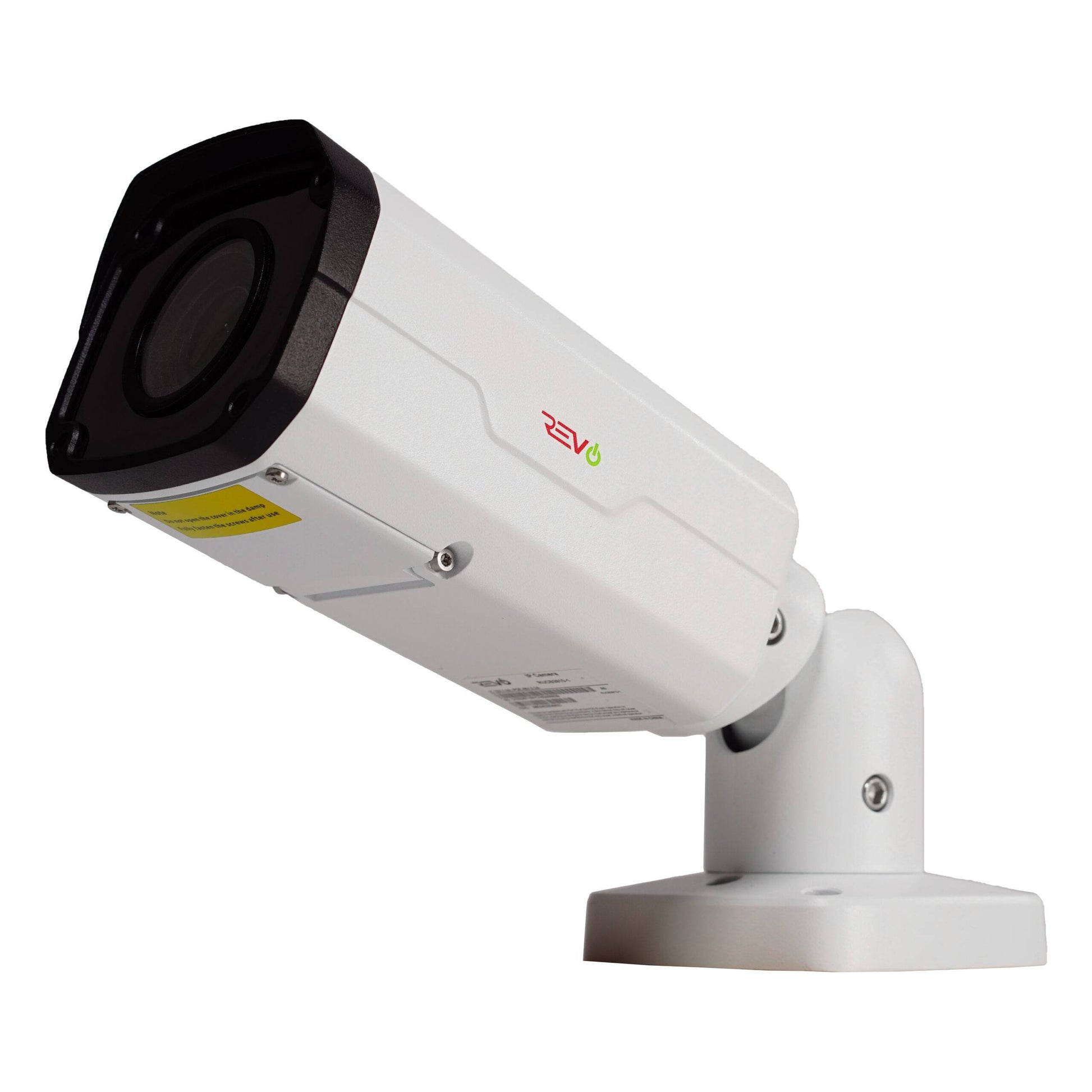

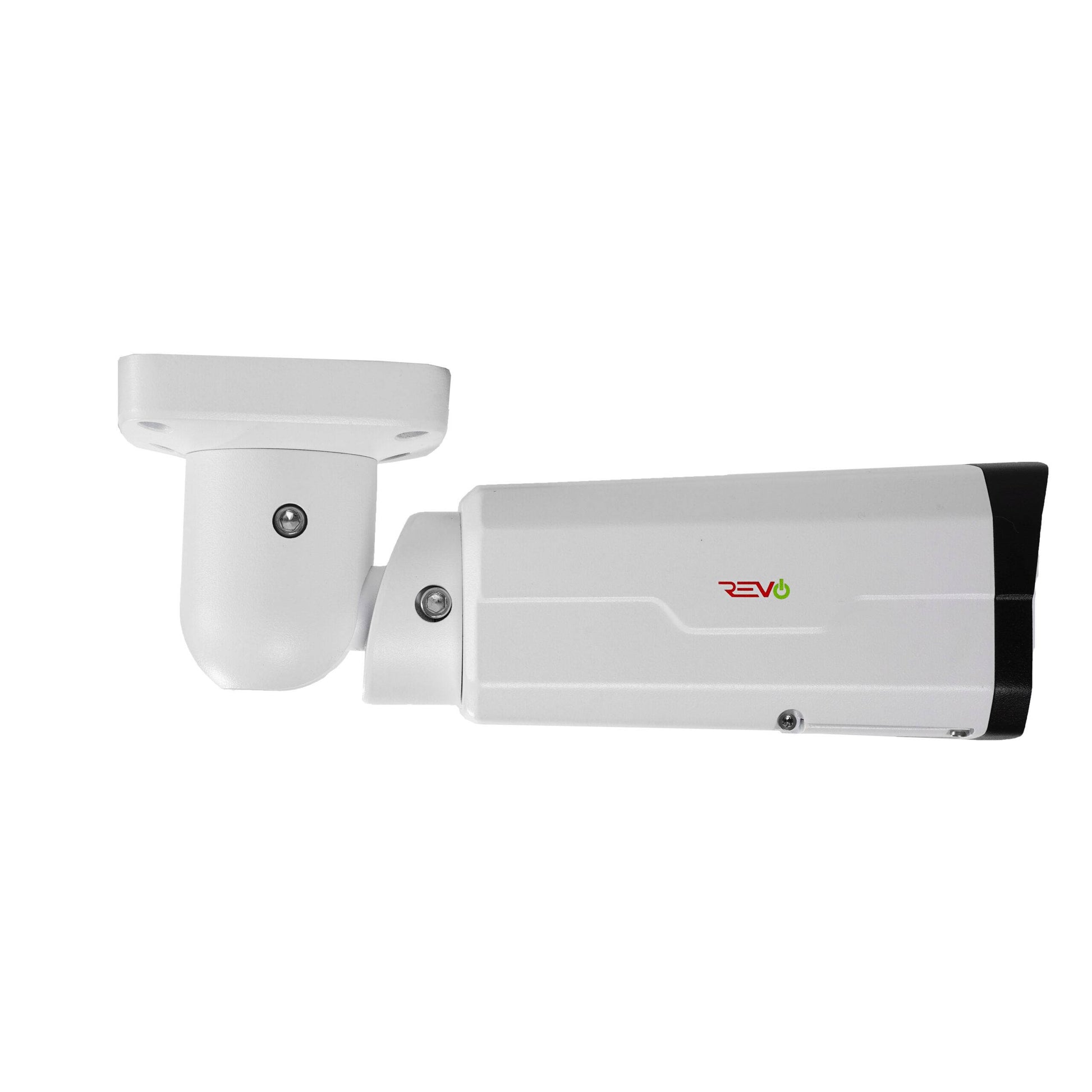

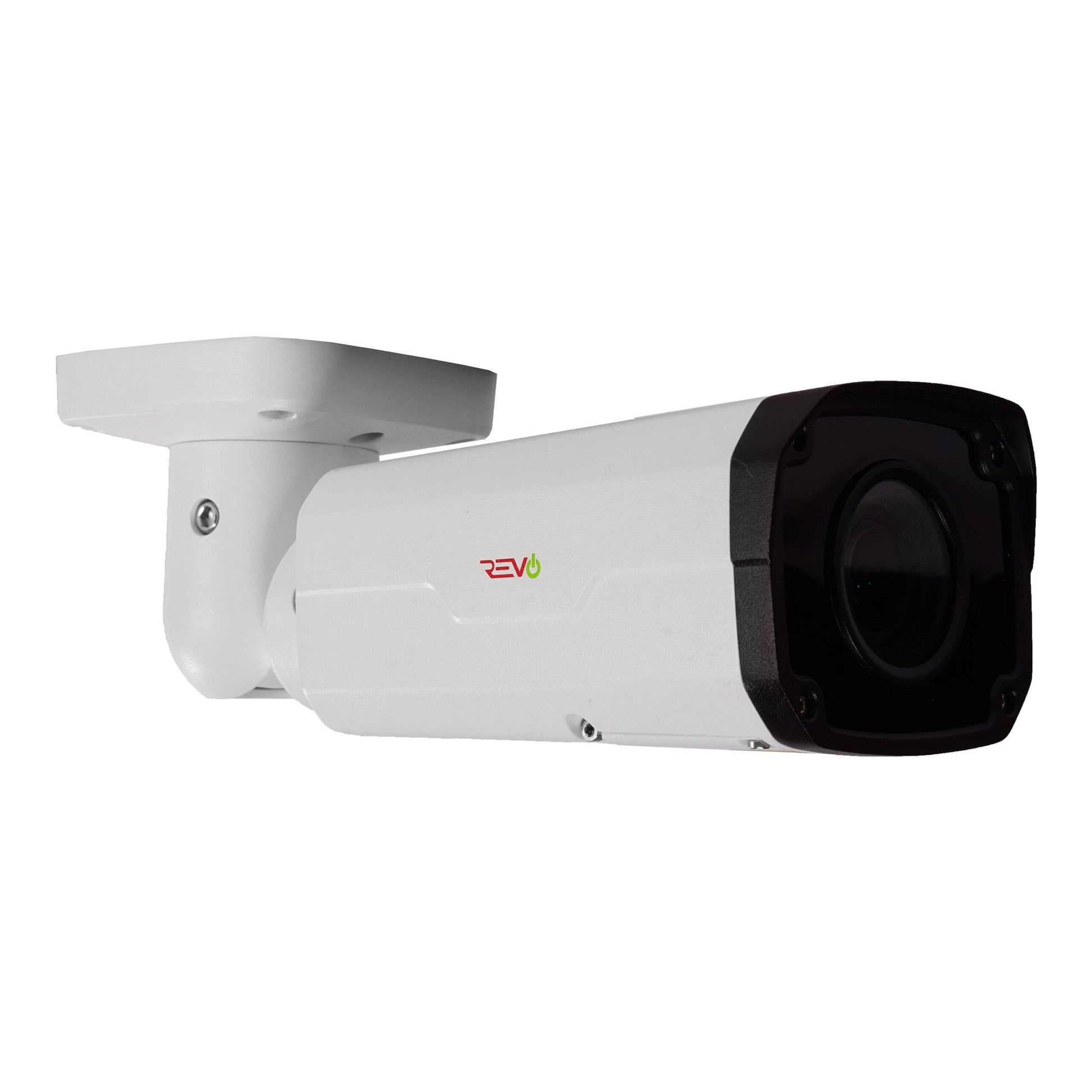

RUCB2810-1 4MP VF Motorized Network IR Bullet Camera
| Camera | |
|---|---|
| Sensor | 1/2.8″, 4 megapixel, progressive scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Lens | 2.8~12mm @F1.4; Angle of view: 102° ~ 33° |
| Zoom/Focus | Motor drive |
| Min. Illumination | Colour: 0.06 Lux (F1.4, 50IRE) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >55dB |
| WDR | 120dB |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
|---|---|
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
|---|---|
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Audio I/O | Audio cable Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 1 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC, or PoE (IEEE802.3 af Power consumption: 3.5W (5.5W with IR on) |
| Material | Cast aluminum |
| Dimensions (L × W × H) | 9.98” × 3.4” × 2.8” (253.4 ×86 ×71.7 mm) |
| Weight | 2.05 lb (0.93 kg ) |
| Working Environment | -31°F ~ 140°F (-35°C ~ +60°C), Humidity ≤ 90% RH(non-condensing) |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra Plus offers additional features perfect for professional and premium residential applications. The RUCB2810-1 Revo Ultra Vandal Bullet camera with Motorized Varifocal technology delivers incredible video quality of the standard Revo Ultra cameras with the added powerful ability to zoom in and out remotely. The RUCB2810-1 comes equipped with Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. The RUCB2810-1 steps up its powerful security with IK10 vandal resistant engineering. When it comes to surveillance, every detail counts. Added features make the RUCB2810-1 not only powerful, but widely compatible. 4KV surge protection protects your investment. Finally, triple stream capability ensures the best video quality optimized for any connection speed. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
Specs and design can change without previous notice
