SKU: RU162B16GA-4T

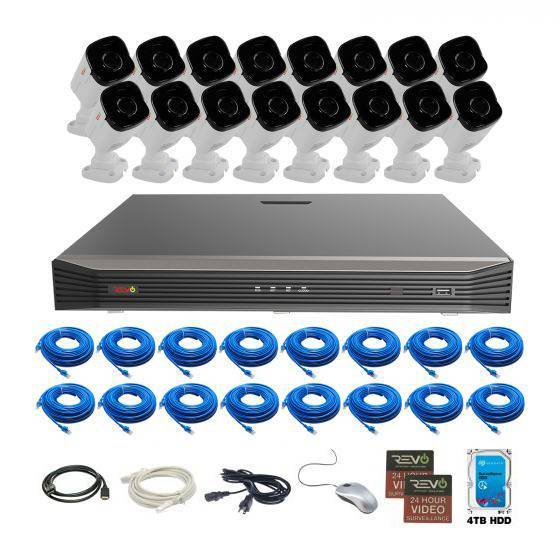

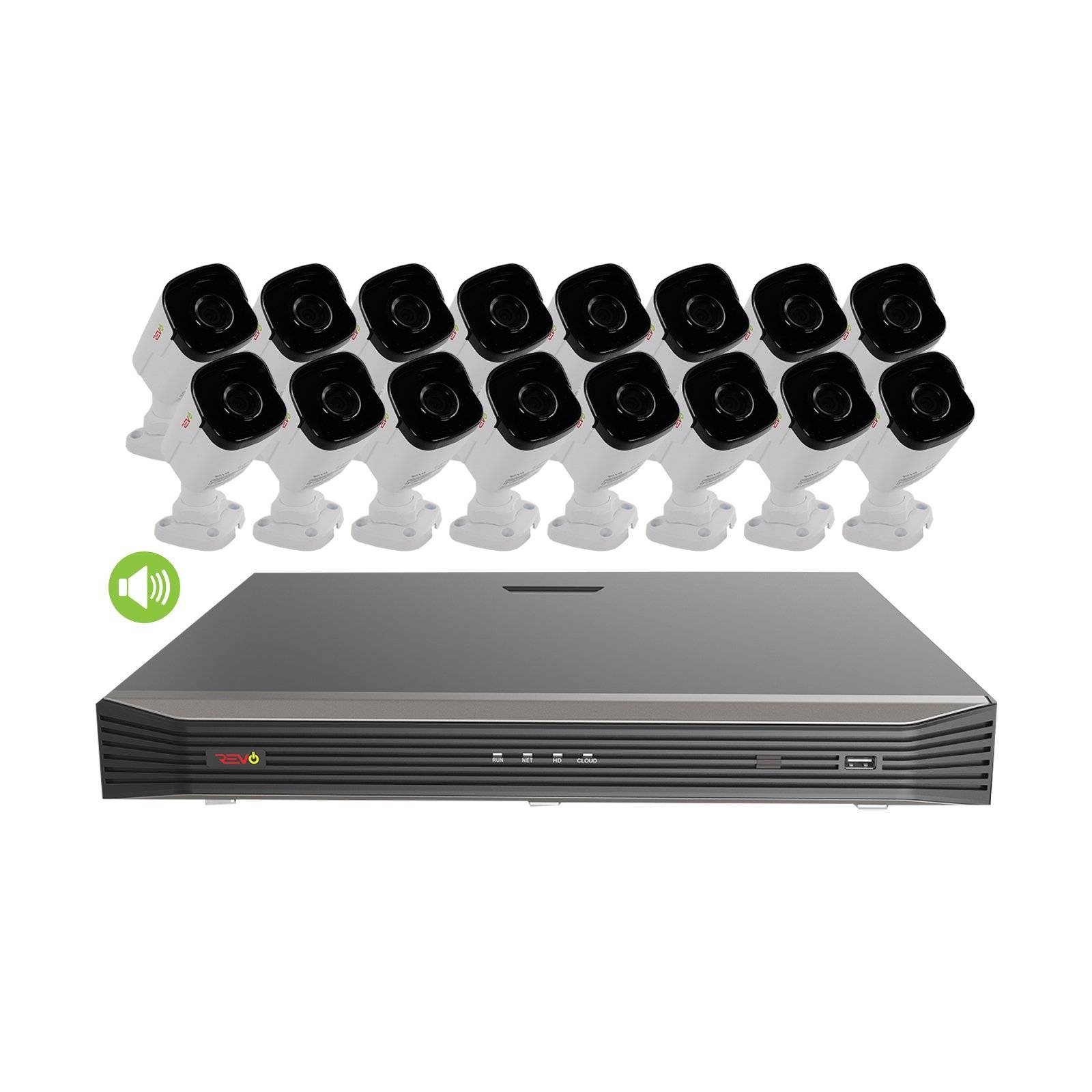

Ultra HD Audio Capable 16 Ch. 4TB NVR Surveillance System with 16 4 Megapixel Cameras

Ultra HD Audio Capable 16 Ch. 4TB NVR Surveillance System with 16 4 Megapixel Cameras

In stock
Regular price $2,593.34
Sale price $2,593.34 Regular price
Sale Sold out
Storage
Quantity
Guaranteed Safe Checkout pyament-icon
icon1

Free delivery

over $100

iocn2

Same day

dispatch

icon3

2-year

warranty

Key Features

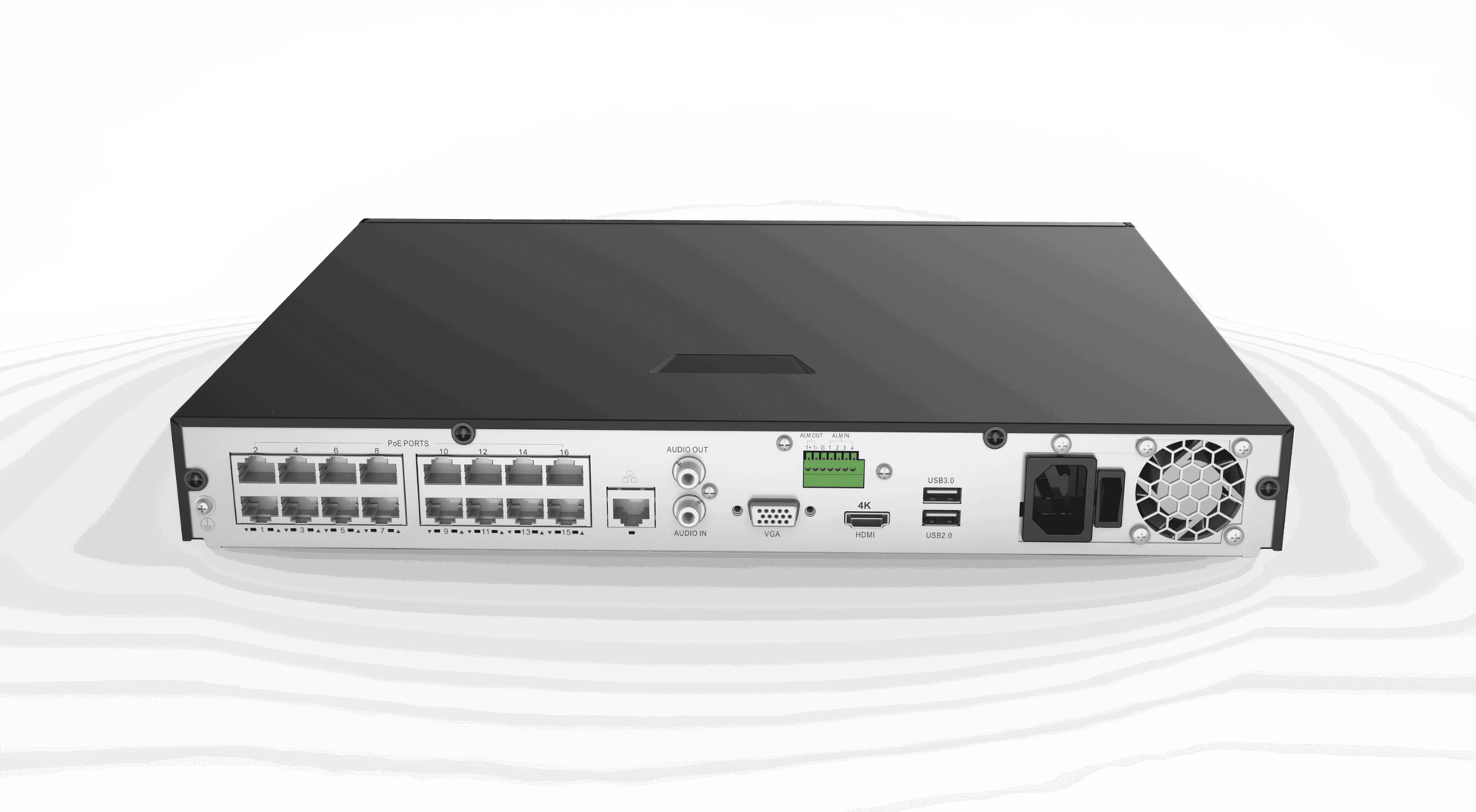

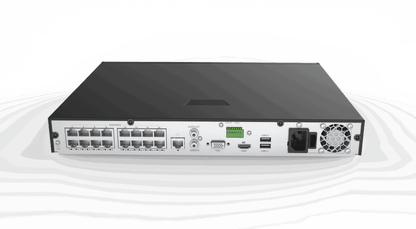

  • 16 Ch. 4K H.265 IP NVR with built-in 16 RJ45 PoE Ports
  • 4MP Indoor/Outdoor IP Bullet Cameras with built-in microphone (16)
  • 4TB Video Surveillance Grade HDD
  • Hassle free software upgrade via Cloud
  • 4K Recording Capability
  • 4K Video Output compatible with 4K monitors
  • 100’ Cat 5e Cable (16)
  • MyRevoCloud– Access your NVR from virtually any IE browser.
  • Two-Step Smartphone View Setup – iPhone and Android.
  • Revo Ultra Remote Computer Software – View multiple units at once
View full details
Also Available in a complete security bundle

Also Available in a complete security bundle

This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.

VIEW BUNDLE OPTIONS

Save more with bundle deals!

...

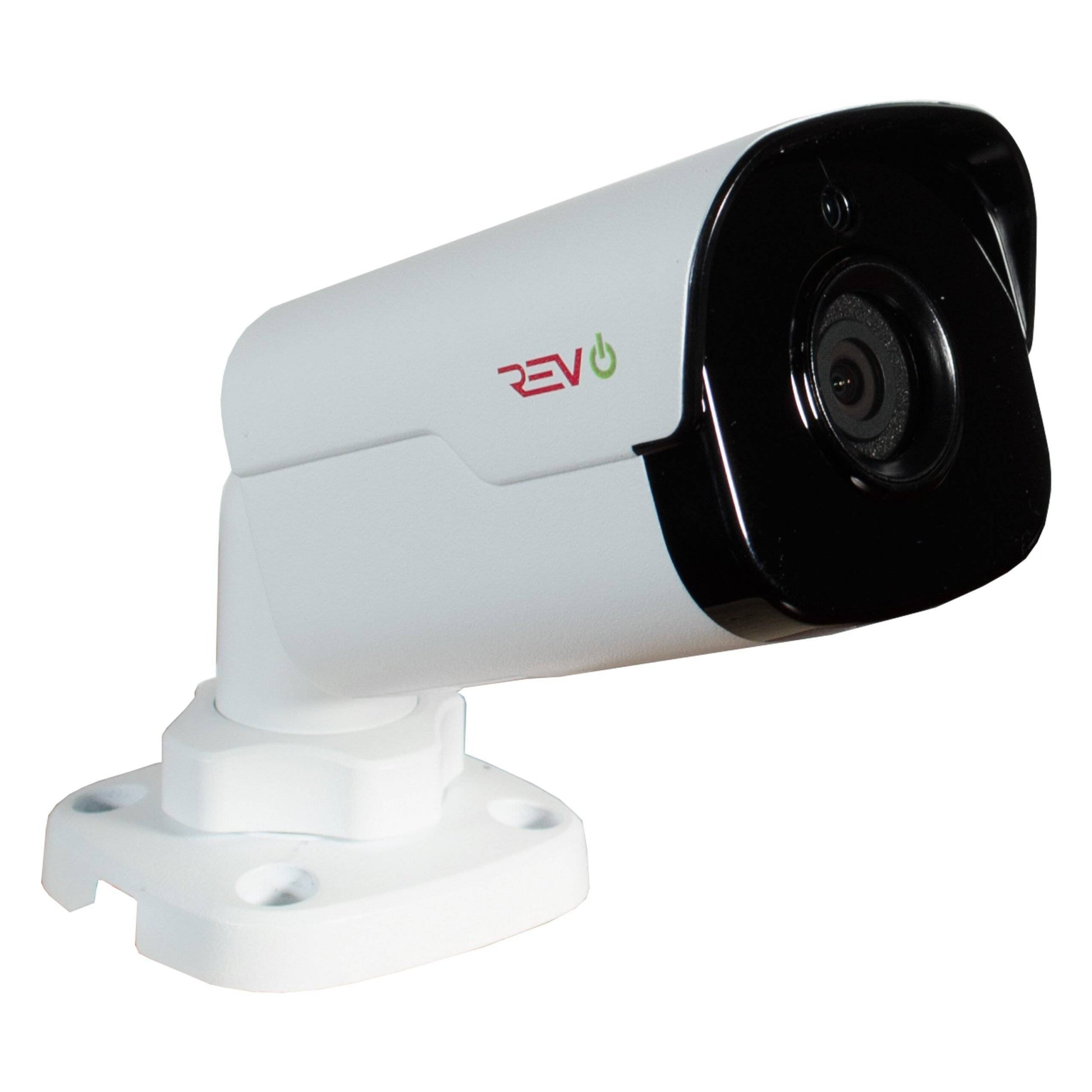

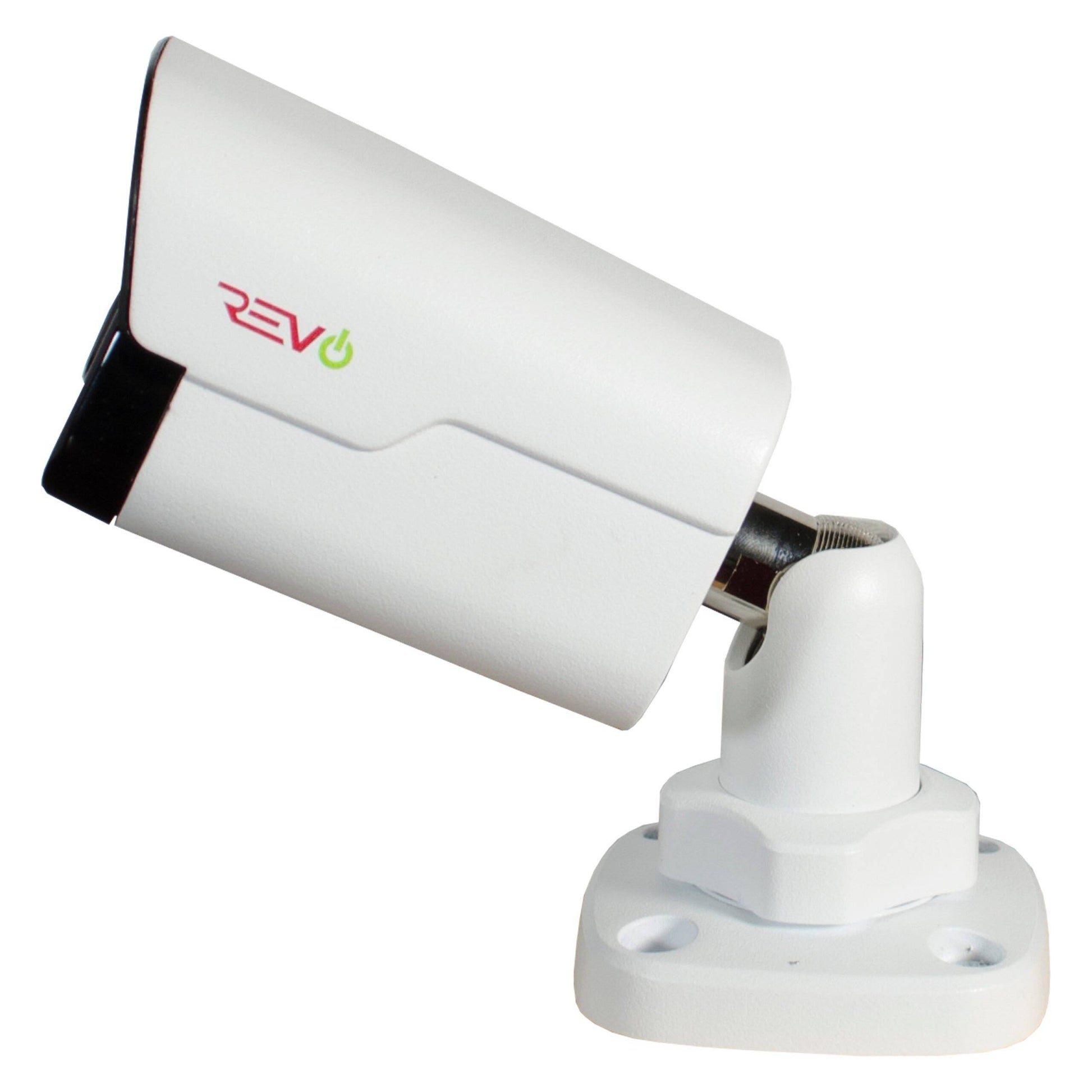

RUCB36-1 4MP IR Bullet Camera

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 3.6mm@F1.8 Angle of view(H): 90.5°
Shutter Auto/Manual, 1/6~1/8000 s
Min. Illumination Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 30m (98 ft) IR range
S/N >55dB
WDR 120dB
Noise Reduction 2D/3D
Video
Max. Resolution 2592×1520
Video Compression H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Motion Detection Up to 2 areas
Privacy Mask Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af
2.0 W (6.4 W with IR on)
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection IP66

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Its unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology. The RU162B16G-4T is a complete, plug and play HD surveillance system with 16 channel NVR, 4TB and 16x Four Megapixel HD Indoor/Outdoor Audio capable Bullet cameras. The REVO ULTRA NVR is powerful featuring state of the art H.265 Compression and 4K video output. Revo Ultra cameras features optical grade, IR anti reflection glass, massive 4 Megapixel Sensors, double the resolution of standard 1080p. They also come equipped with Smart commercial grade “OSRAM” LEDs. They strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Night vision video quality is unmatched. The “RUCB36-1A” Bullet camera has a built-in microphone for audio streaming and recording. The cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F. S.M.A.R.T. technology enables the system to monitor its own health and alert the user of any malfunction. The polished look and intuitive feel of the Ultra's interface is a joy for everyday use whether you're using the NVR itself, the Mobile App, Computer Software or Browser. Setup is a snap with PoE and Cat 5e cable. One cable carries everything between the Revo Ultra camera and NVR.

Specs and design can change without previous notice
