SKU: RU162B8G-4T

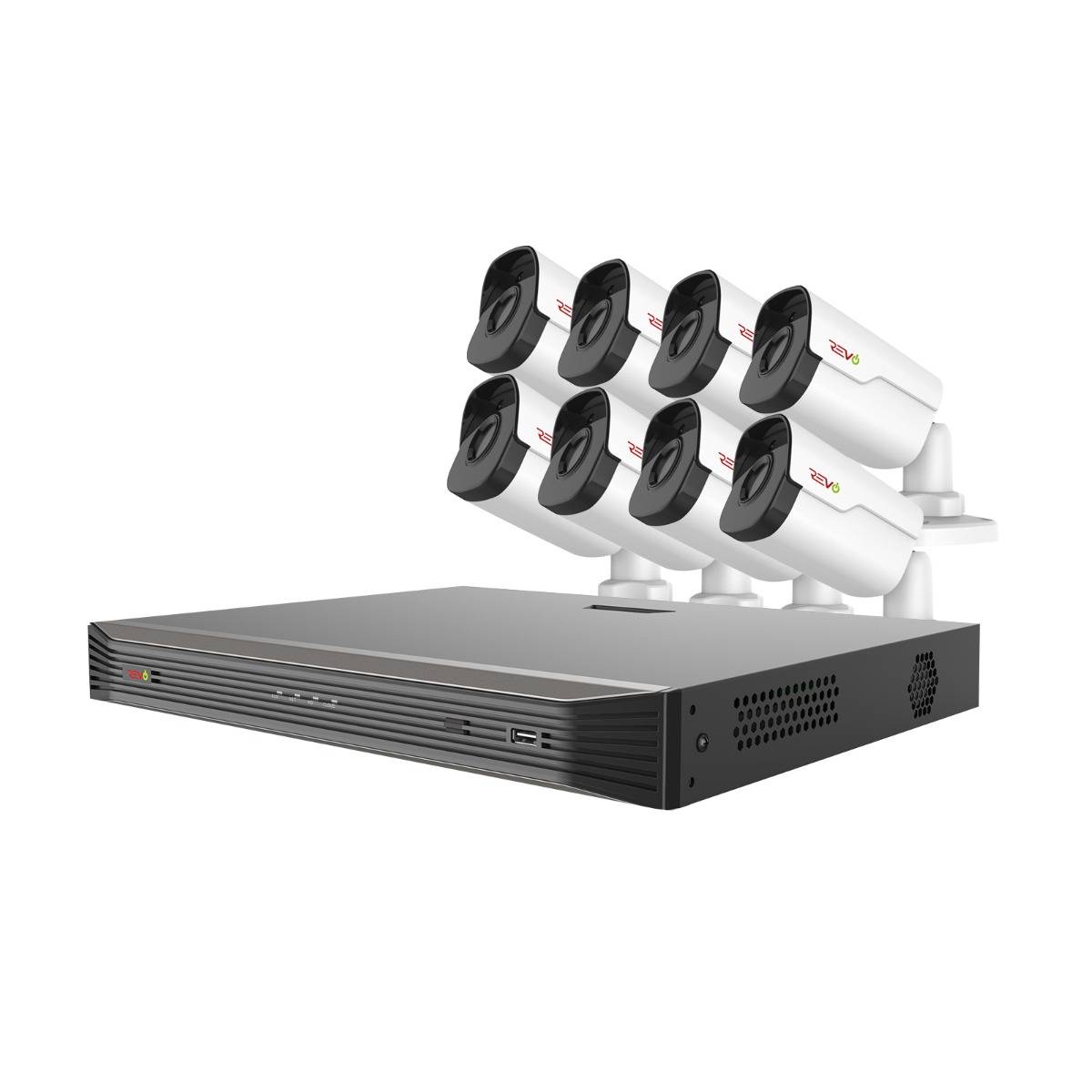

Ultra HD 16 Ch. 4TB NVR Home Surveillance System with 8 4MP IP Bullet Cameras
Ultra HD 16 Ch. 4TB NVR Home Surveillance System with 8 4MP IP Bullet Cameras
In stock
Regular price
$1,559.53
Sale price
$1,559.53
Regular price
Quantity
Couldn't load pickup availability
Guaranteed Safe Checkout
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
VIEW BUNDLE OPTIONS
Save more with bundle deals!
RUCMD36-1 4MP Network IR Fixed Dome Camera
| Camera | |
|---|---|
| Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 77.6° |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR | 100 ft IR range |
| AWB(Auto white balance) | Auto/manual |
| Gain Control | Auto/manual |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| 9:16 Corridor Mode | Supported |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC±25%, PoE (IEEE 802.3af) Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
| Weight | 0.45 kg (0.99 lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |

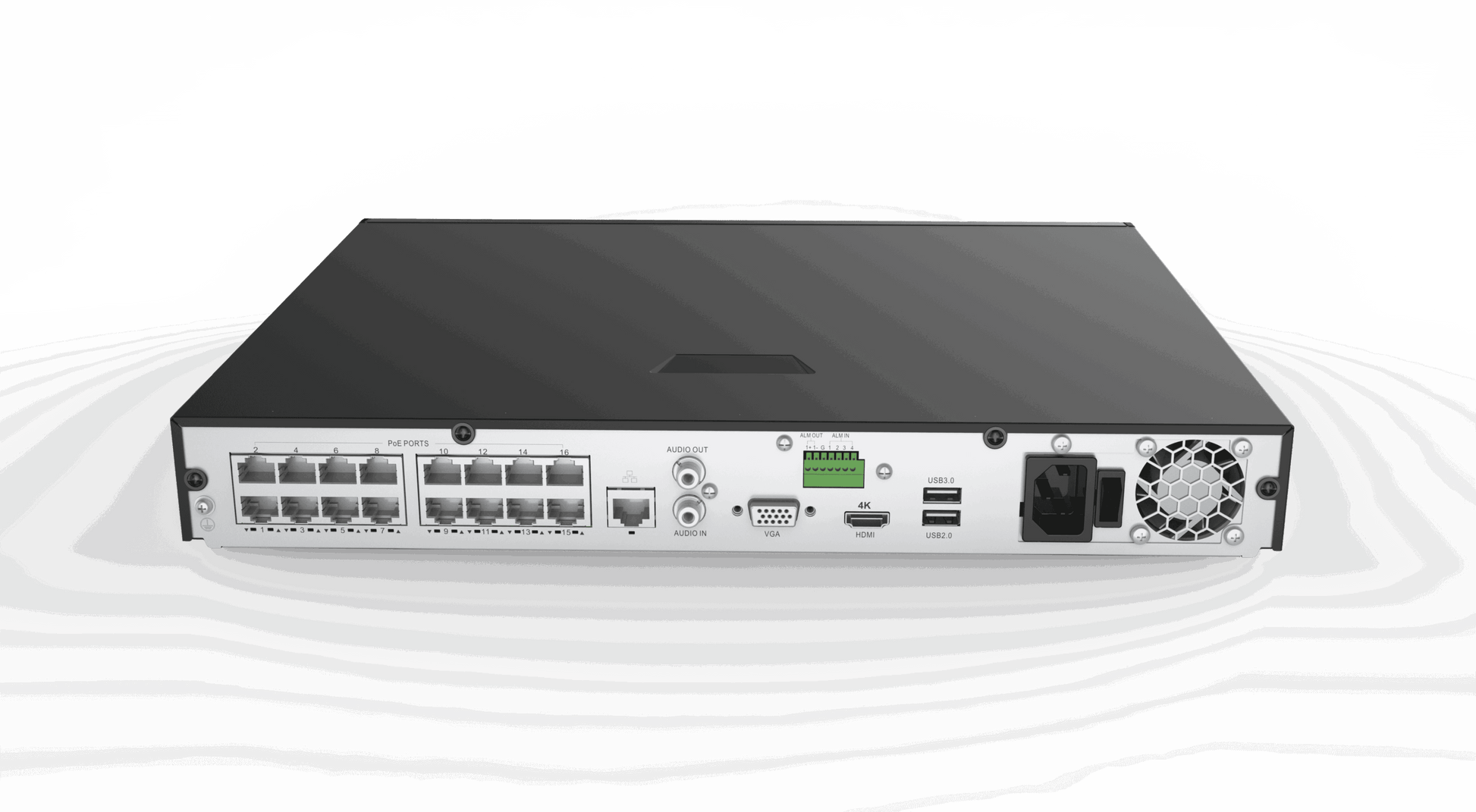

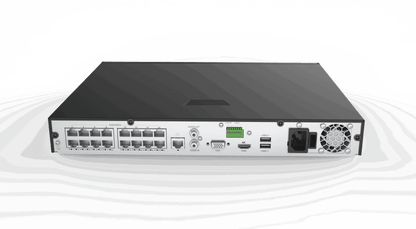

DVR-RU16NVR2 16 Channel Digital Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 16-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
|---|---|
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 320Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Decoding | |
|---|---|
| Compression | H.265/H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30 |
| Software | |
|---|---|
| Computer Operating System | Windows, Mac OS |
| Internet Viewing | HomeSafe View App |
| Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
| Hard Disk | |
|---|---|
| SATA | 2 SATA interface |
| Capacity | up to 8TB for each disk |
| External Interface | |
|---|---|
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0 Rear panel: 1 x USB3.0 |
| Alarm in | 4-CH |
| Alarm out | 4-CH |
| PoE | |
|---|---|
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30 W for single port Max240W in total (15 W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
|---|---|
| Power Supply | 100 ~ 240 VAC |
| Consumption ( without HDD and PoE ) | ≤ 20 W |
| Working Temperature | +14°F ~ +131°F |
| Working Humidity | 10% ~ 90% |
| Dimensions | 380mm x 315mm x 46mm ( 14.95” × 12.4” × 1.81” ) |
| Weight ( without HDD ) | ≤ 5.34 lb (2.42 Kg) |

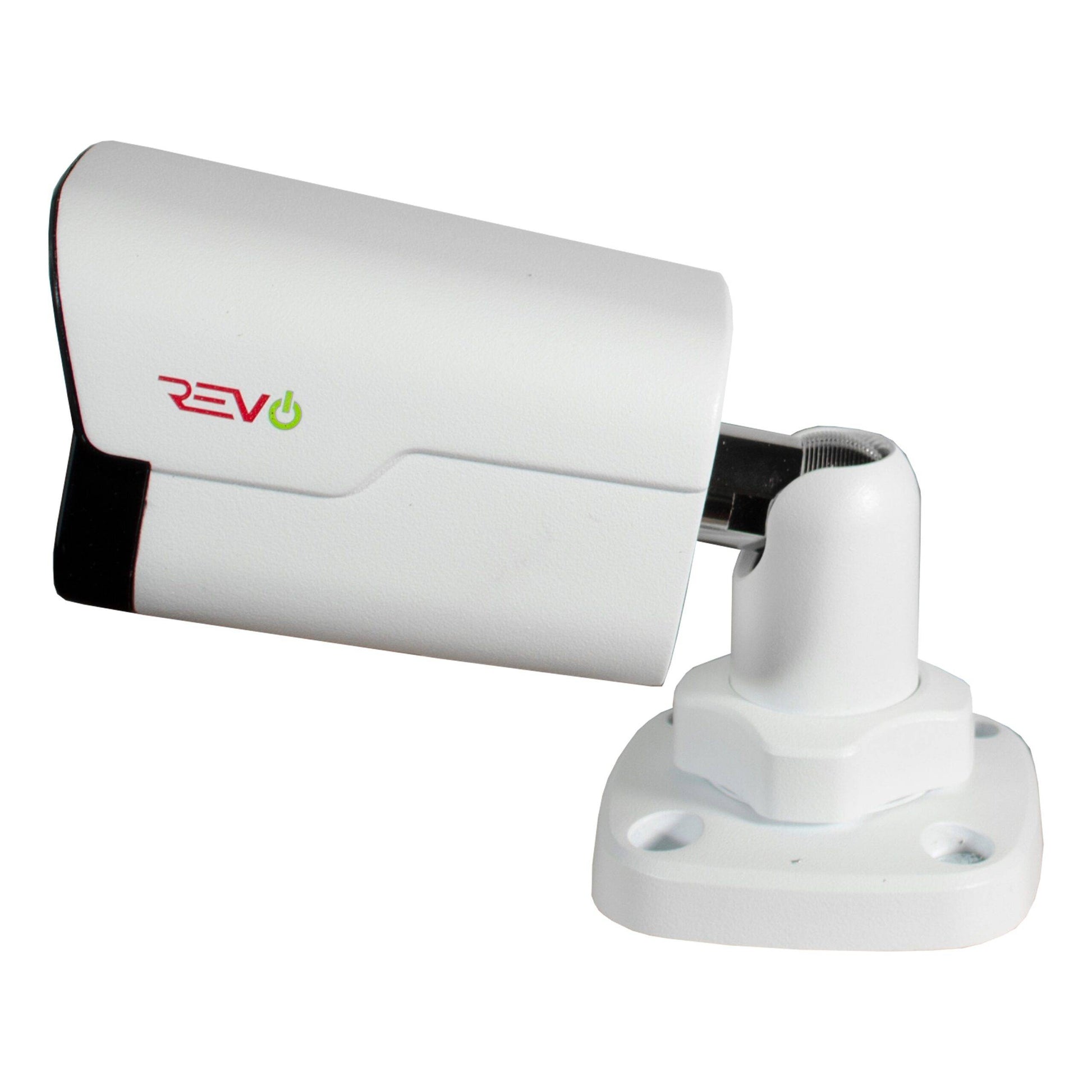

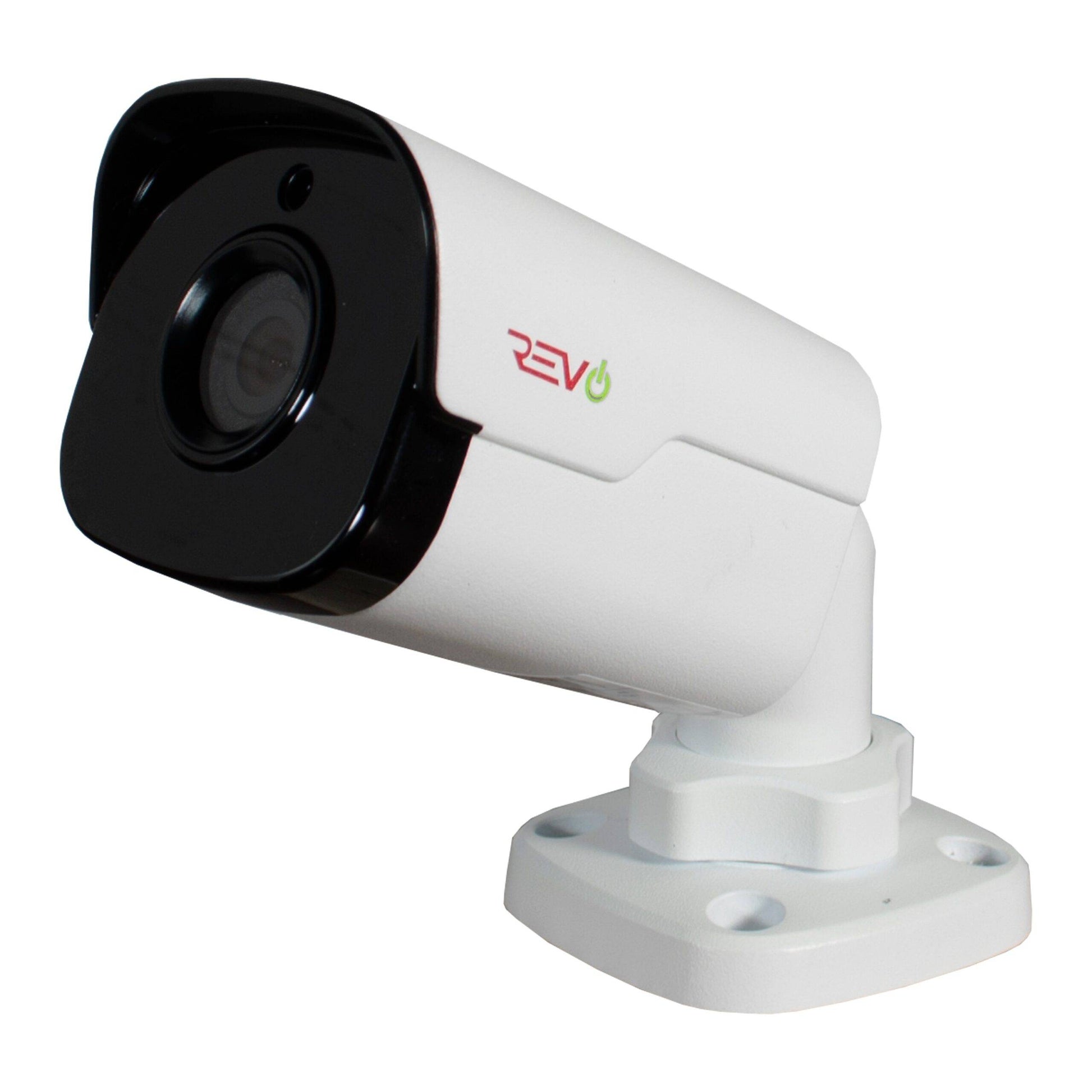

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Its unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology. The RU162B8G-4T is a complete, plug and play HD surveillance system with 16 channel NVR, 4TB and 8x Four Megapixel HD Indoor/Outdoor Bullet cameras. The REVO ULTRA NVR is powerful featuring state of the art H.265 Compression and 4K video output. Revo Ultra cameras features optical grade, IR anti reflection glass, massive 4 Megapixel Sensors, double the resolution of standard 1080p. They also come equipped with Smart commercial grade “OSRAM” LEDs. They strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Night vision video quality is unmatched. The cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F. S.M.A.R.T. technology enables the system to monitor its own health and alert the user of any malfunction. The polished look and intuitive feel of the Ultra's interface is a joy for everyday use whether you're using the NVR itself, the Mobile App, Computer Software or Browser. Setup is a snap with PoE and Cat 5e cable. One cable carries everything between the Revo Ultra camera and NVR.
Specs and design can change without previous notice
