SKU: RU162MD8GB8G-4T

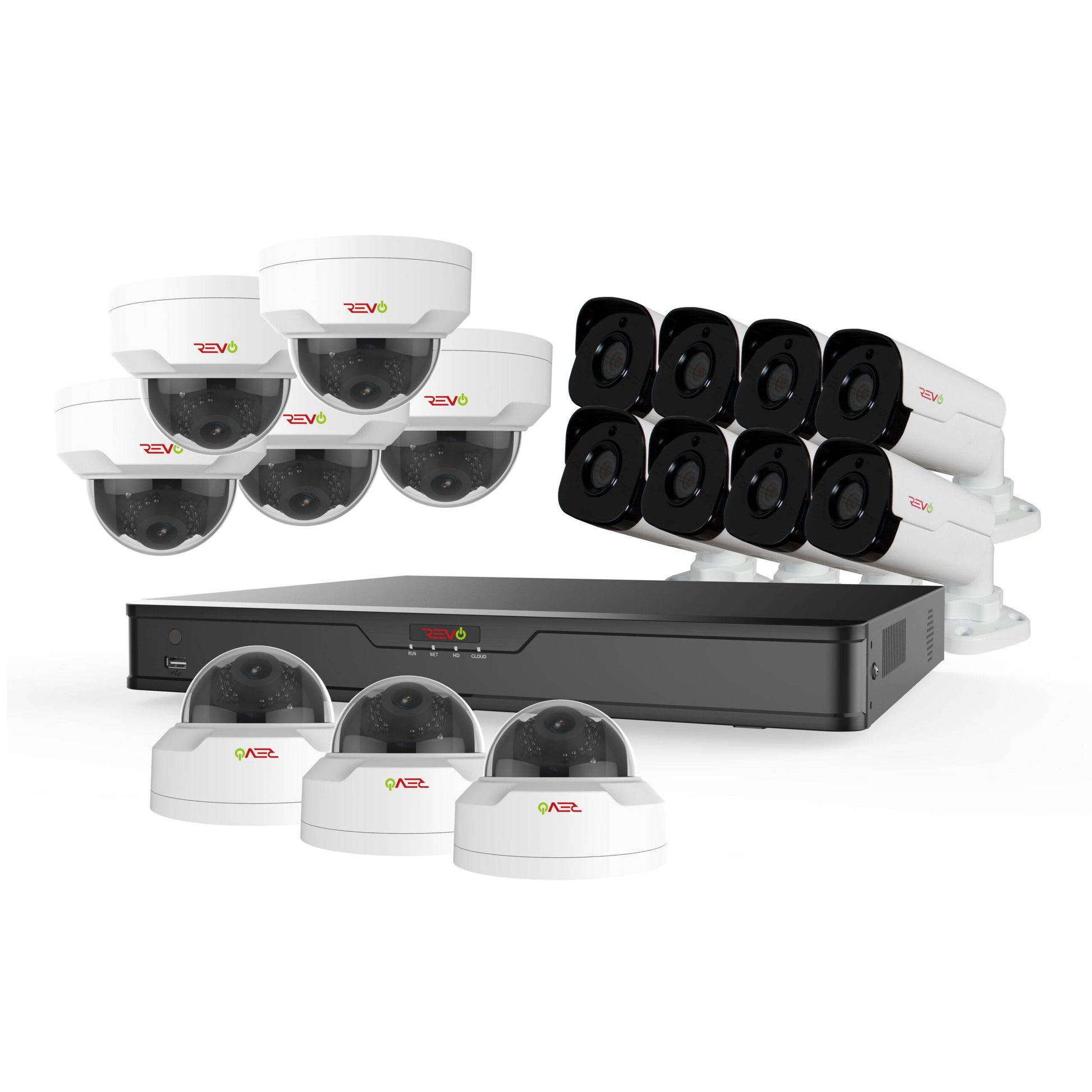

Ultra HD 16 Ch. 4TB NVR Home Surveillance System & 16 4MP Security Cameras
Ultra HD 16 Ch. 4TB NVR Home Surveillance System & 16 4MP Security Cameras
In stock
Regular price
$2,305.18
Sale price
$2,305.18
Regular price
Quantity
Couldn't load pickup availability
Guaranteed Safe Checkout
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
VIEW BUNDLE OPTIONS
Save more with bundle deals!

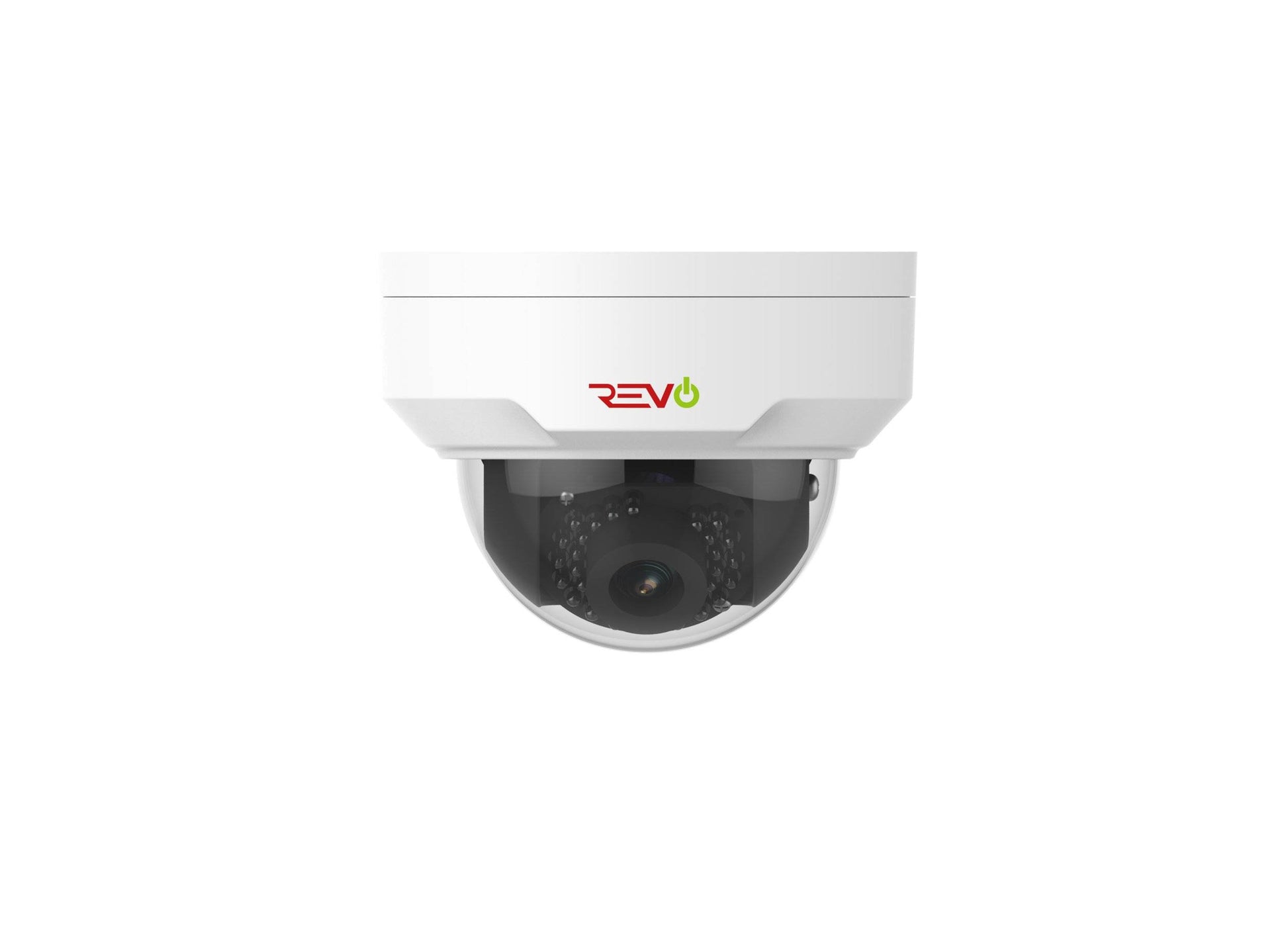

RUCMD36-1 4MP Network IR Fixed Dome Camera
| Camera | |
|---|---|
| Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 77.6° |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR | 100 ft IR range |
| AWB(Auto white balance) | Auto/manual |
| Gain Control | Auto/manual |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| 9:16 Corridor Mode | Supported |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC±25%, PoE (IEEE 802.3af) Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
| Weight | 0.45 kg (0.99 lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |

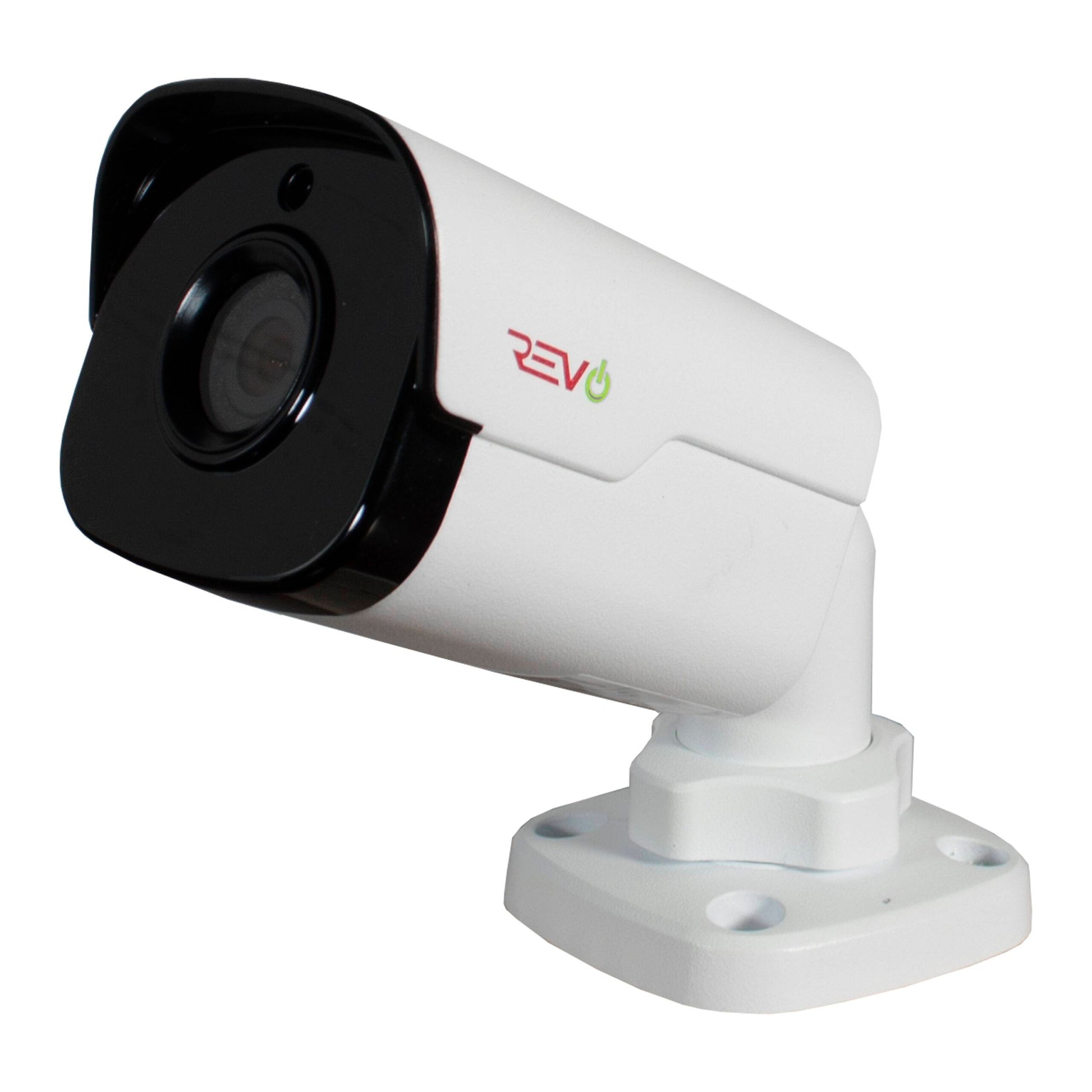

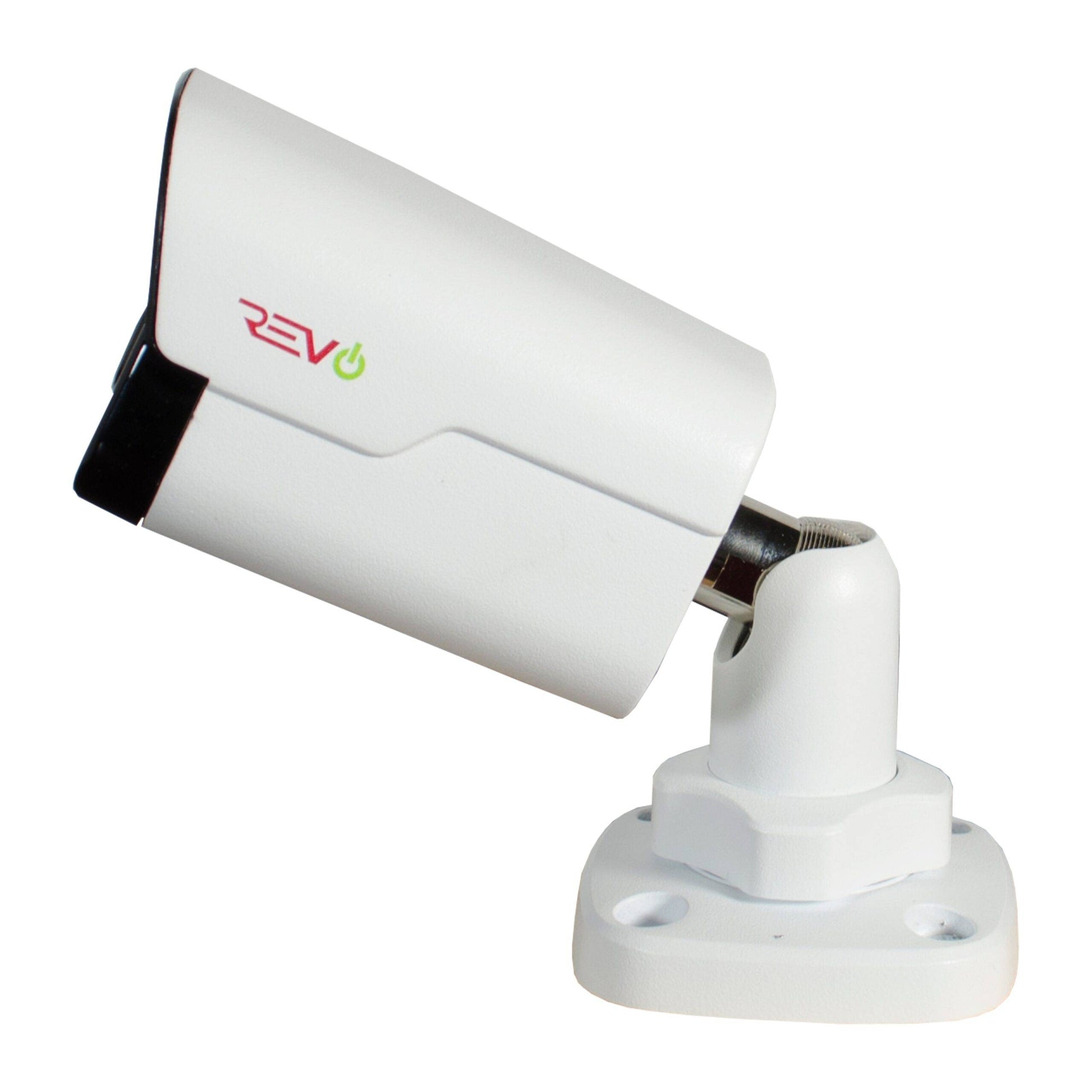

RUCB36-1 4MP IR Bullet Camera
| Camera | |
|---|---|
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 90.5° |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55dB |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC, or PoE (IEEE802.3 af 2.0 W (6.4 W with IR on) |
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |

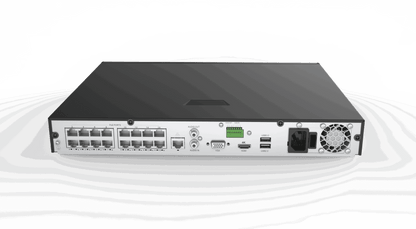

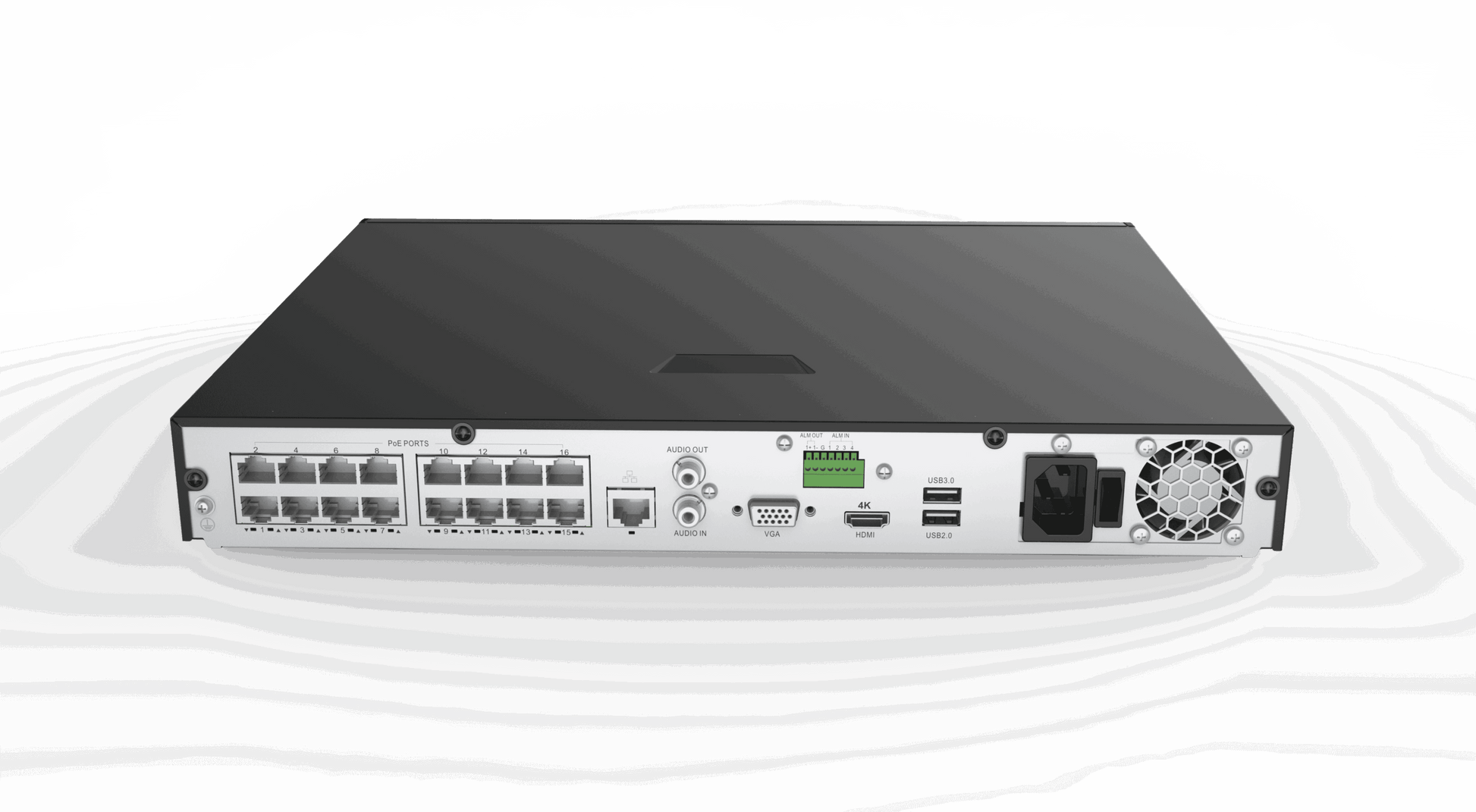

DVR-RU16NVR2 16 Channel Digital Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 16-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
|---|---|
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 320Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Decoding | |
|---|---|
| Compression | H.265/H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30 |
| Software | |
|---|---|
| Computer Operating System | Windows, Mac OS |
| Internet Viewing | HomeSafe View App |
| Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
| Hard Disk | |
|---|---|
| SATA | 2 SATA interface |
| Capacity | up to 8TB for each disk |
| External Interface | |
|---|---|
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0 Rear panel: 1 x USB3.0 |
| Alarm in | 4-CH |
| Alarm out | 4-CH |
| PoE | |
|---|---|
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30 W for single port Max240W in total (15 W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
|---|---|
| Power Supply | 100 ~ 240 VAC |
| Consumption ( without HDD and PoE ) | ≤ 20 W |
| Working Temperature | +14°F ~ +131°F |
| Working Humidity | 10% ~ 90% |
| Dimensions | 380mm x 315mm x 46mm ( 14.95” × 12.4” × 1.81” ) |
| Weight ( without HDD ) | ≤ 5.34 lb (2.42 Kg) |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The RU162MD8GB8G-4T system features a high powered 16CH H.265 NVR, 8 Indoor/Outdoor IR Mini Dome and 8 IR Bullet Cameras. The cameras feature 3D Digital Noise Reduction, massive 4 Megapixel Sensors - double the resolution of standard 1080p HD. Smart IR LEDs illuminate the scene up to an impressive 100' in total darkness. The cameras is built for the outdoors, handling temperatures as hot as 140F and as cold as -31F, rain or shine. View your Revo Ultra 4MP system from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using MyRevoCloud, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. .Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
Specs and design can change without previous notice
