SKU: RUCB28-4Z

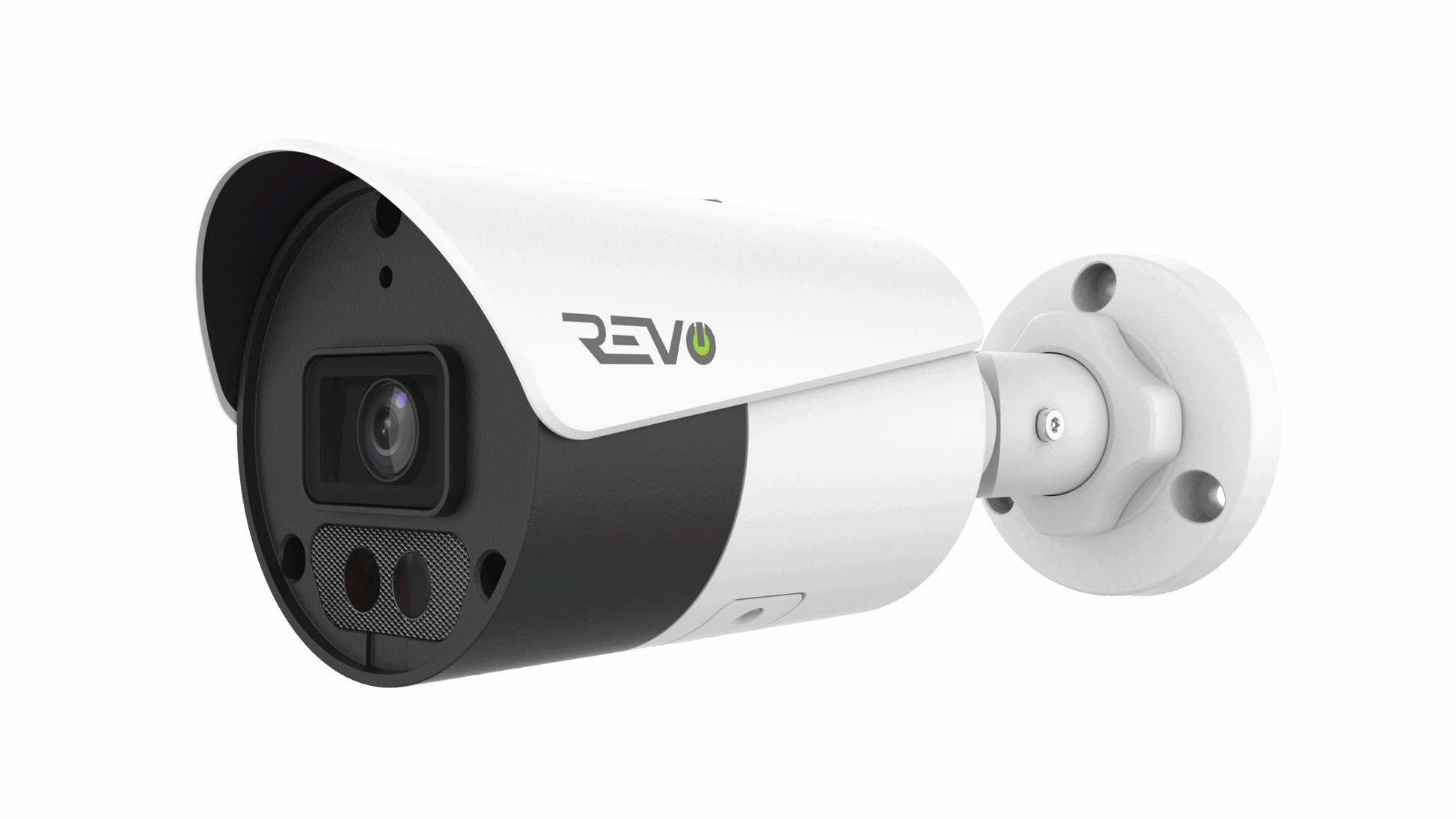

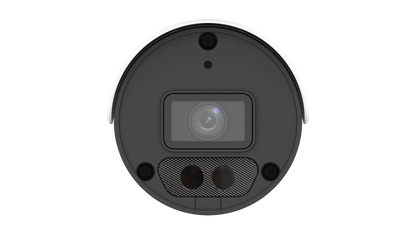

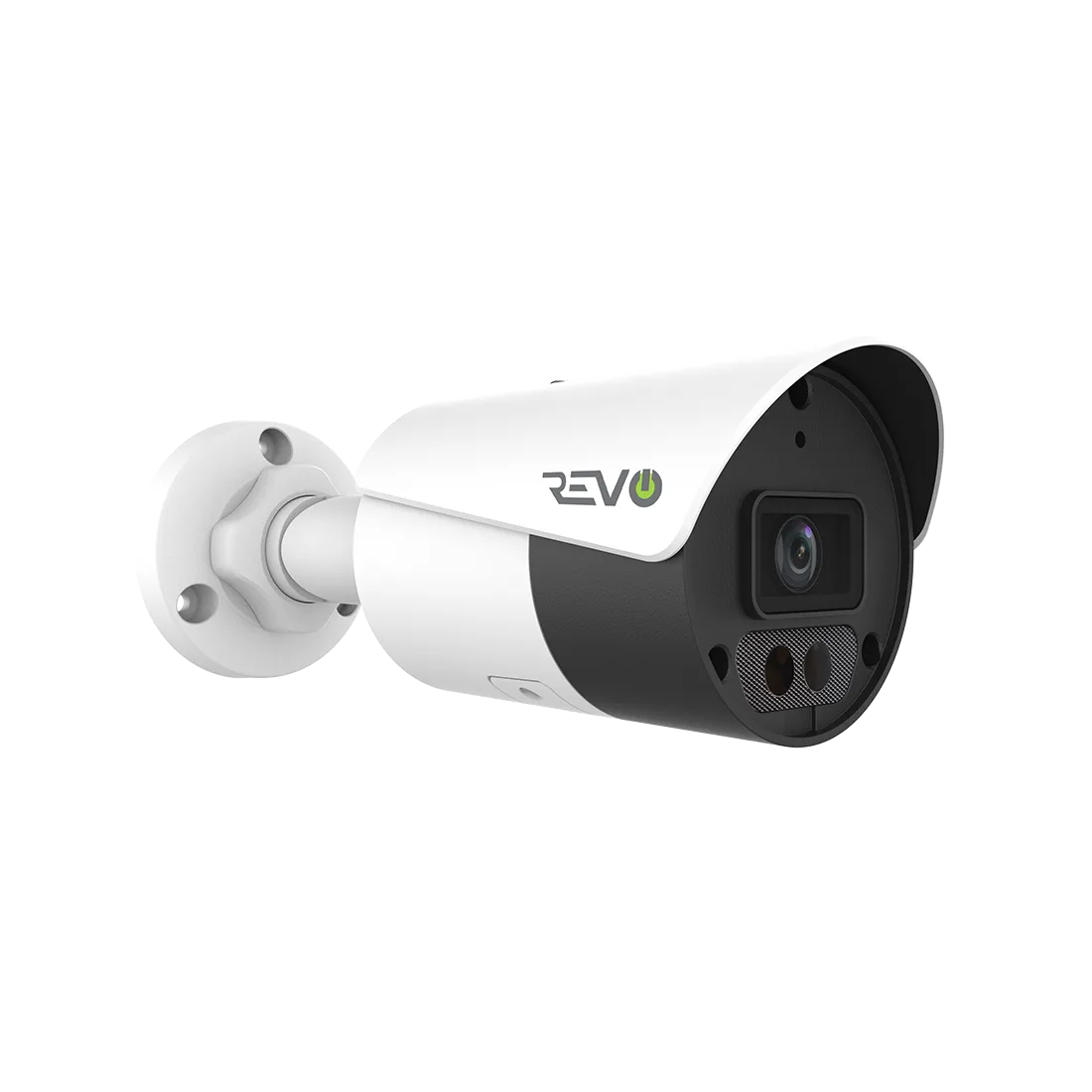

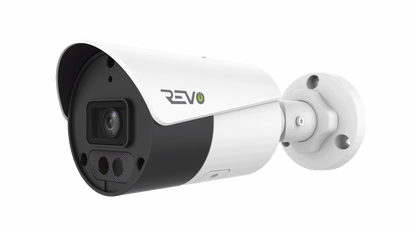

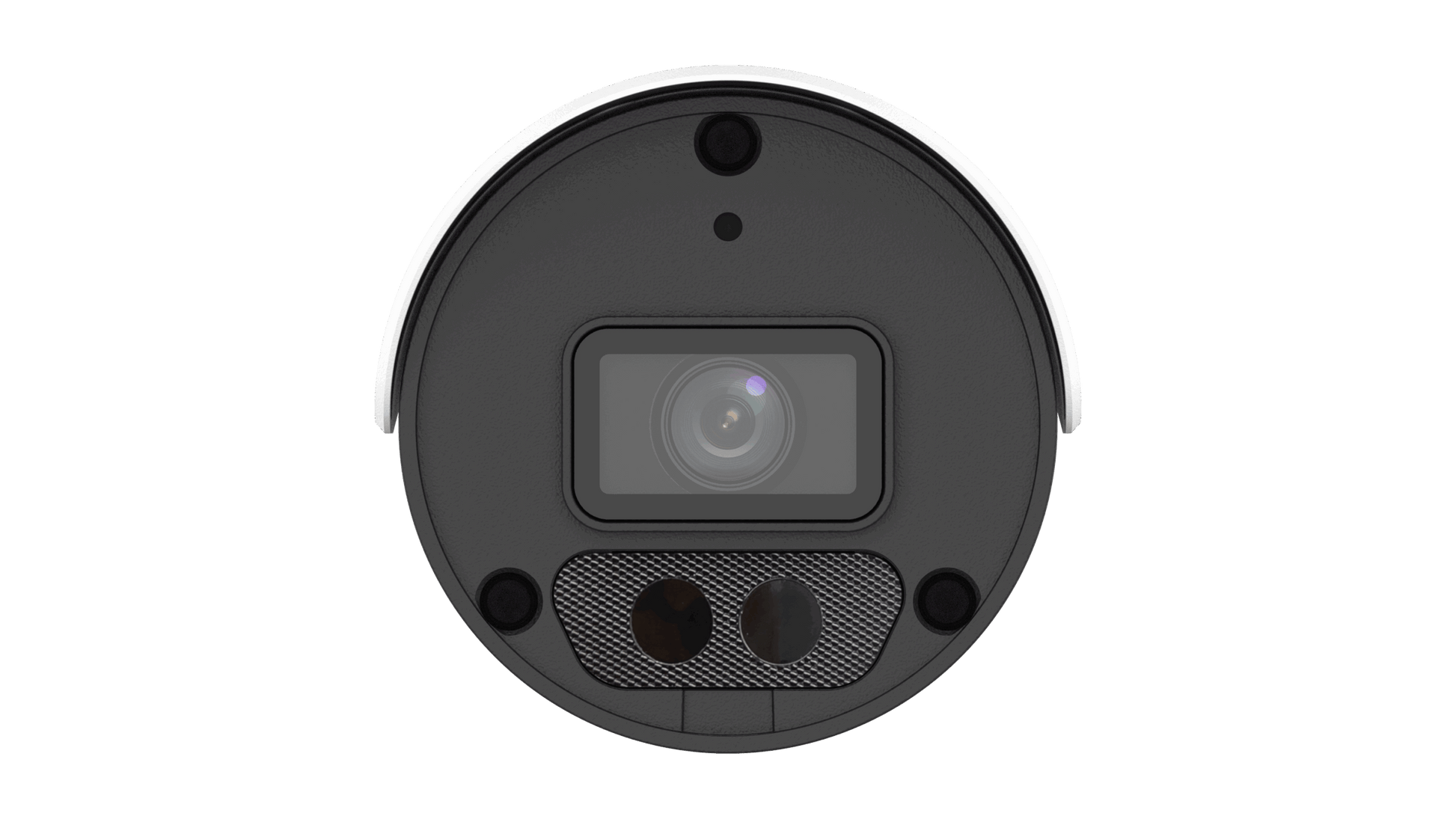

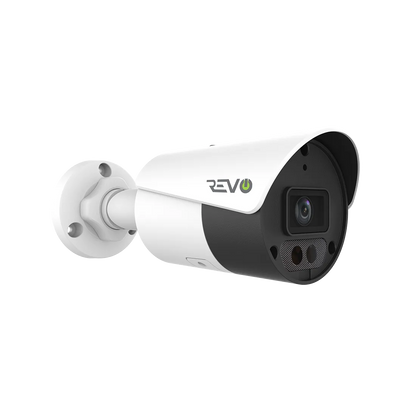

REVO ULTRA 4K (8 Megapixel) Fixed Lens Indoor/Outdoor Bullet Camera w/ 100' CAT5e Cable
REVO ULTRA 4K (8 Megapixel) Fixed Lens Indoor/Outdoor Bullet Camera w/ 100' CAT5e Cable
Couldn't load pickup availability
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
Save more with bundle deals!
REVO ULTRA 8MP HD Fixed IR Mini Bullet Network Camera
| Camera | |
|---|---|
| Max Resolution | 8 MP |
| Sensor | 1/2.8″ CMOS |
| Min. Illumination | Support Easystar: color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | DWDR |
| Lens | |
|---|---|
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 98.7° |
| Field of View (V) | 53.9° |
| Field of View (D) | 103.6° |
| DORI | |
|---|---|
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 285.1 ft. (86.9 m) |
| DORI Distance (Observe) | 114.2 ft. (34.8 m) |
| DORI Distance (Recognize) | 57.1 ft. (17.4 m) |
| DORI Distance (Identify) | 28.5 ft. (8.7 m) |
| Illuminator | |
|---|---|
| Supplemental Light | IR |
| Illumination Distance (IR) | 100 ft. (30 m) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
|---|---|
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Events | |
|---|---|
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
|---|---|
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
|---|---|
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | REVO ULTRA APP, REVO ULTRA PRO APP, MYREVOCLOUD.COM, REVO ULTRA REMOTE |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
|---|---|
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
|---|---|
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
|---|---|
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.9 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 7.5″ × 2.9″ × 2.8″ (190 mm × 73 mm × 71 mm) (L × W × H) |
| Weight | 0.88 lb. (0.40 kg) |
| Material | Graphene + Metal |
| Working Environment | -22 ℉ to 140 ℉, (-30 ℃ to 60 ℃), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -22 ℉ to 140 ℉, (-30 ℃ to 60 ℃), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business.
The Revo Ultra's RUCB28-4X Bullet Camera is based on IP technology. IP, or Internet Protocol, technology brings the power and beauty of digital high definition video right to the heart of your surveillance system. The “RUCB28-4X” Bullet Camera takes it one step further, featuring, optical grade, IR optimized glass, True WDR, H.265 compression, and massive 4K (8 Megapixel) Sensors, four times the resolution of standard 1080p HD. Revo Ultra cameras also come equipped with a built-in mic, Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100' in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. When it comes to surveillance, every detail counts.
Specs and design can change without previous notice
