SKU: RU41B4GM22-1T

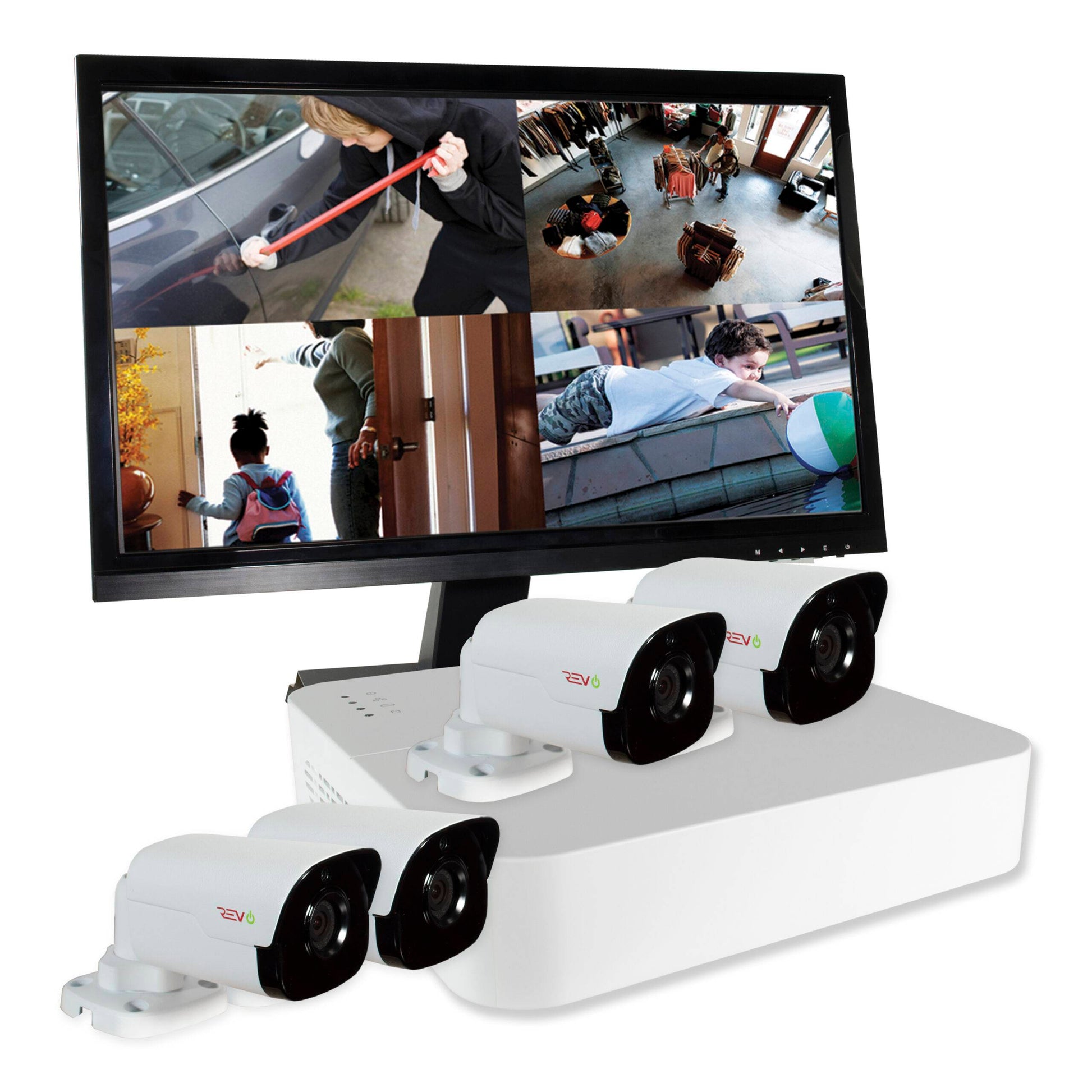

Ultra™ HD Surveillance System with Security Cameras & Monitor
Ultra™ HD Surveillance System with Security Cameras & Monitor
In stock
Regular price
$699.99
Sale price
$699.99
Regular price
Quantity
Couldn't load pickup availability
Guaranteed Safe Checkout
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
VIEW BUNDLE OPTIONS
Save more with bundle deals!

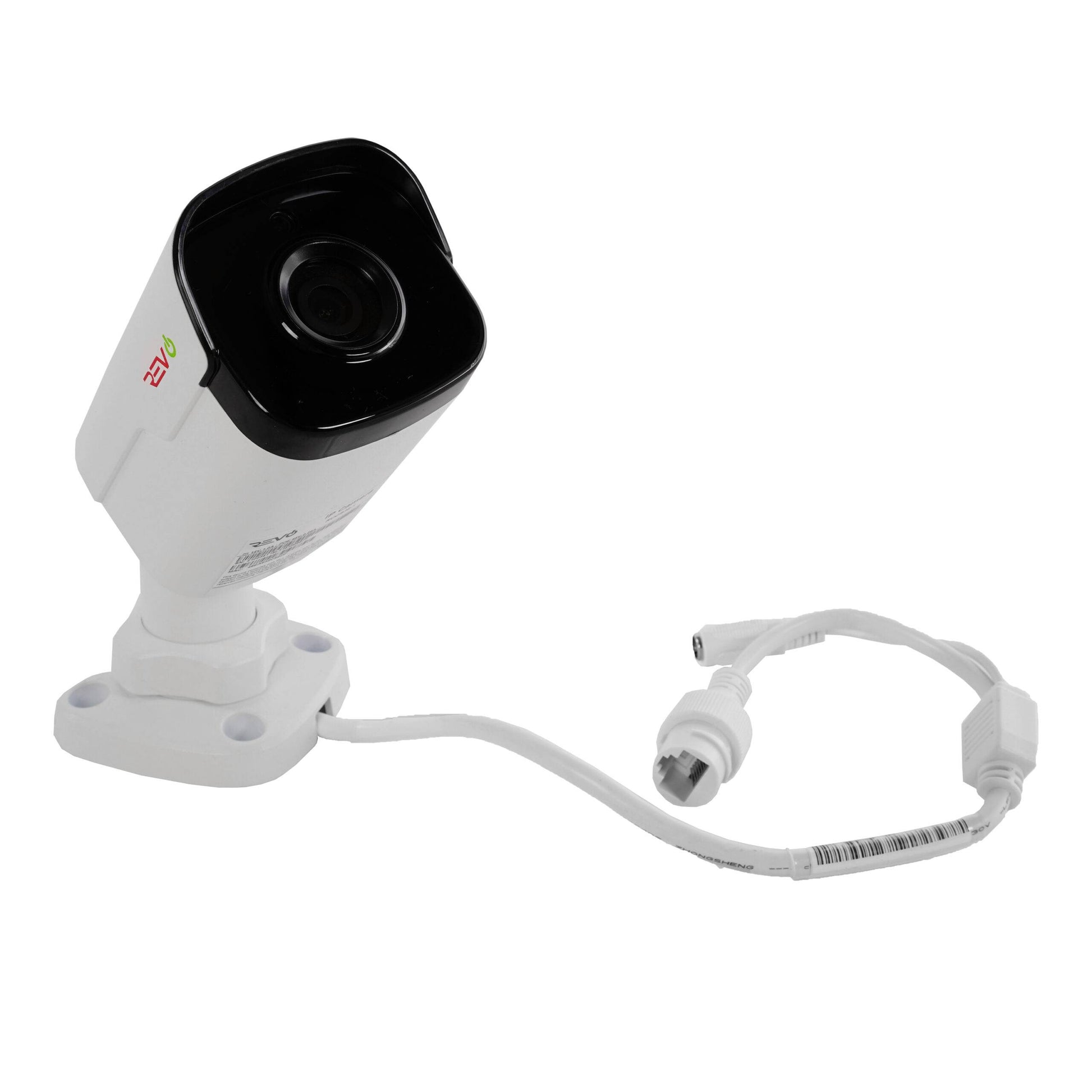

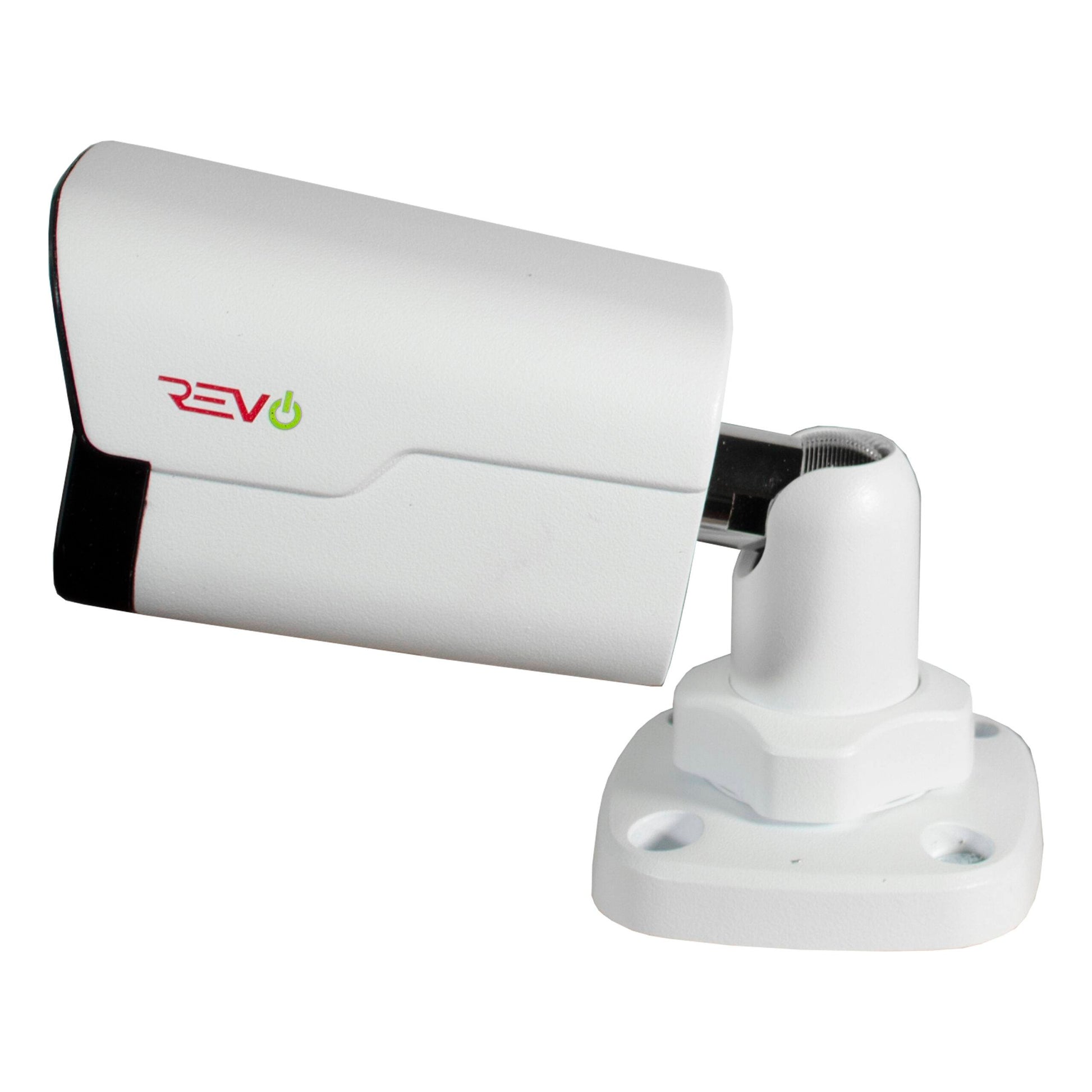

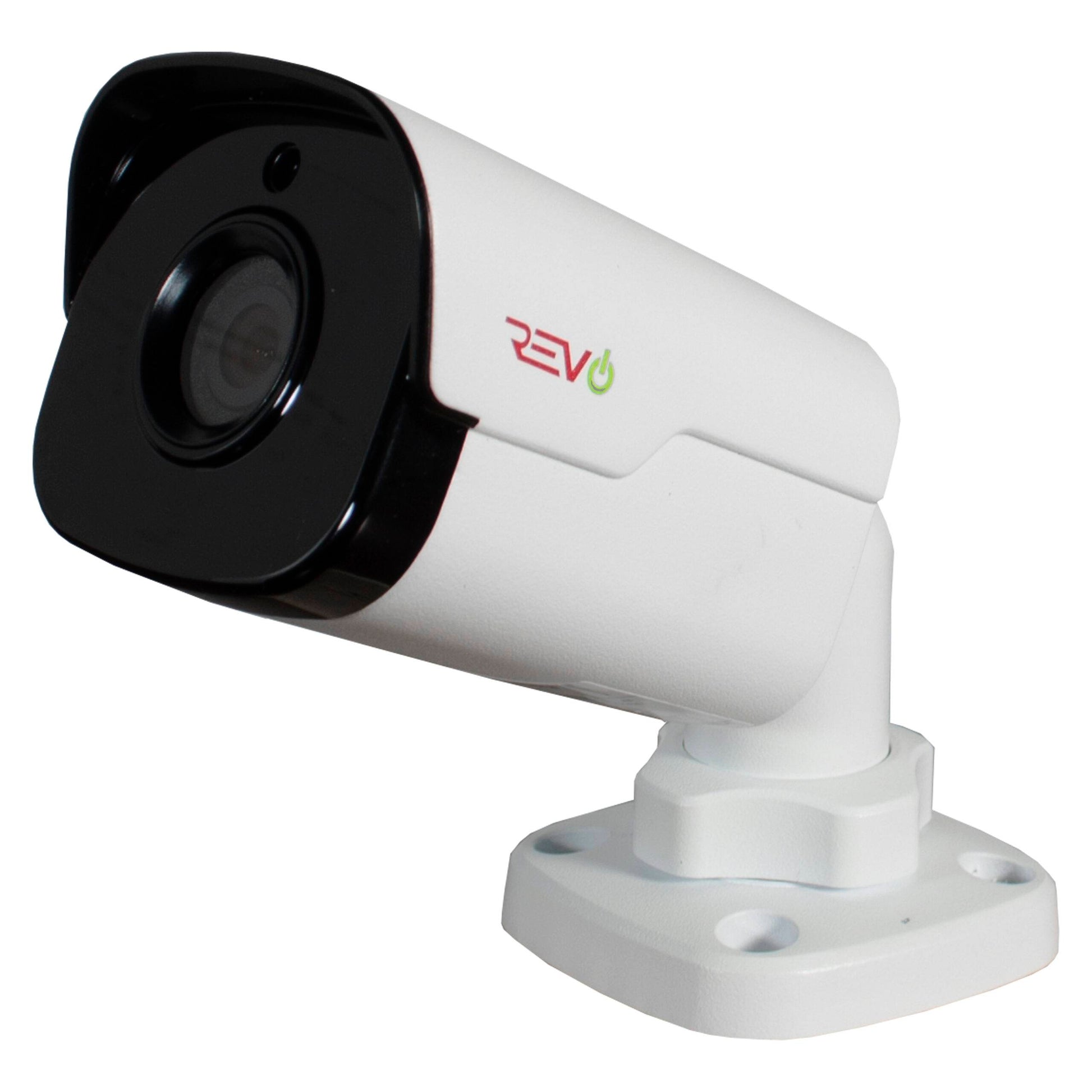

RUCB36-1 4MP IR Bullet Camera
| Camera | |
|---|---|
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 90.5° |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55dB |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC, or PoE (IEEE802.3 af 2.0 W (6.4 W with IR on) |
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |

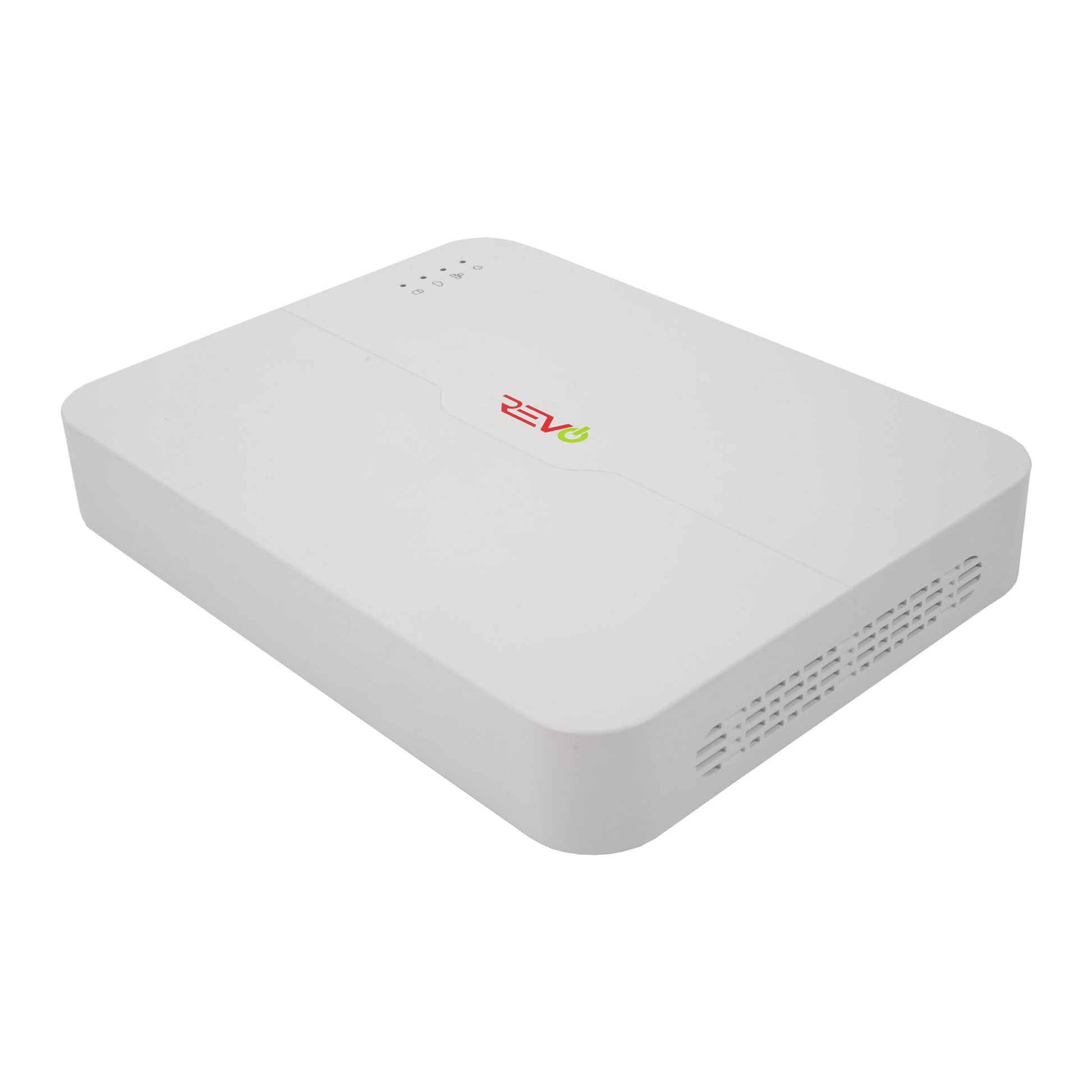

DVR-RU4NVR2 4 Channel Digital Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 4-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
|---|---|
| Incoming bandwidth | 60Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Decoding | |
|---|---|
| Compression | H.265/H.264 |
| Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25 |
| Software | |
|---|---|
| Computer Operating System | Windows, Mac OS |
| Internet Viewing | HomeSafe View App |
| Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
| Hard Disk | |
|---|---|
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |

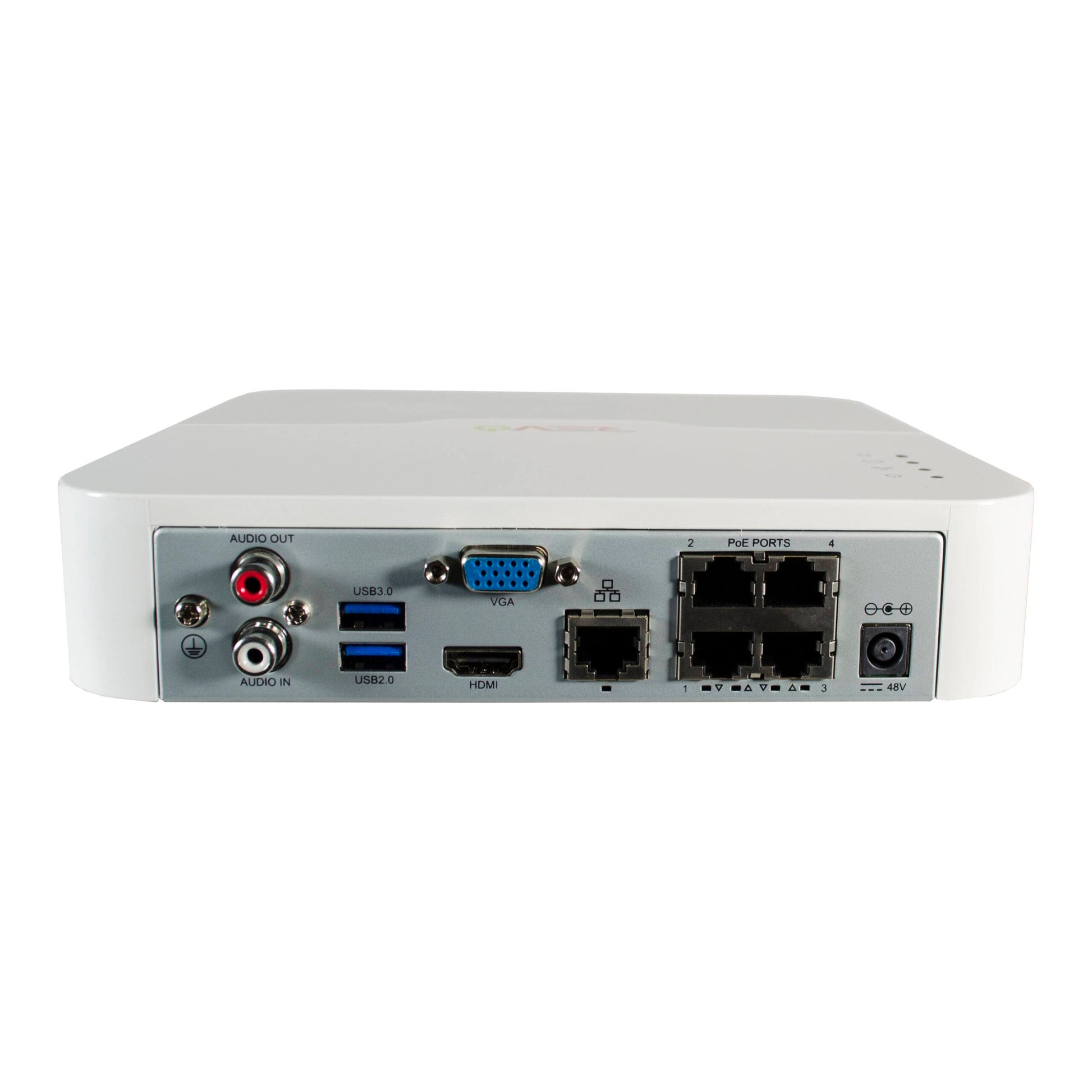

| External Interface | |
|---|---|
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| PoE | |
|---|---|
| Interface | 4 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30 W for single port Max 54W in total (13.5 W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
|---|---|
| Power Supply | 48V DC |
| Consumption ( without HDD and PoE ) | ≤ 8 W |
| Working Temperature | +14°F ~ +131°F (-10°C ~ + 55°C) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 42 x 205 x 205mm (1.7’’ x 8.1’’ x 8.1’’) |
| Weight ( without HDD ) | 1.3 lb (0.59kg) |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the perfect solution for your micro market.
The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 4 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. The 4 Indoor/Outdoor bullet cameras feature, optical grade glass, 3D Digital Noise Reduction, massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. IR arrays illuminate the scene up to an unprecedented 100' in total darkness.
View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using MyRevoCloud . Want to view and manage multiple Revo Ultra units at different locations from a single computer? With Revo ULTRA REMOTE Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.
The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 4 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. The 4 Indoor/Outdoor bullet cameras feature, optical grade glass, 3D Digital Noise Reduction, massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. IR arrays illuminate the scene up to an unprecedented 100' in total darkness.
View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using MyRevoCloud . Want to view and manage multiple Revo Ultra units at different locations from a single computer? With Revo ULTRA REMOTE Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.
Specs and design can change without previous notice
