SKU: RU16NVR3BX-16T

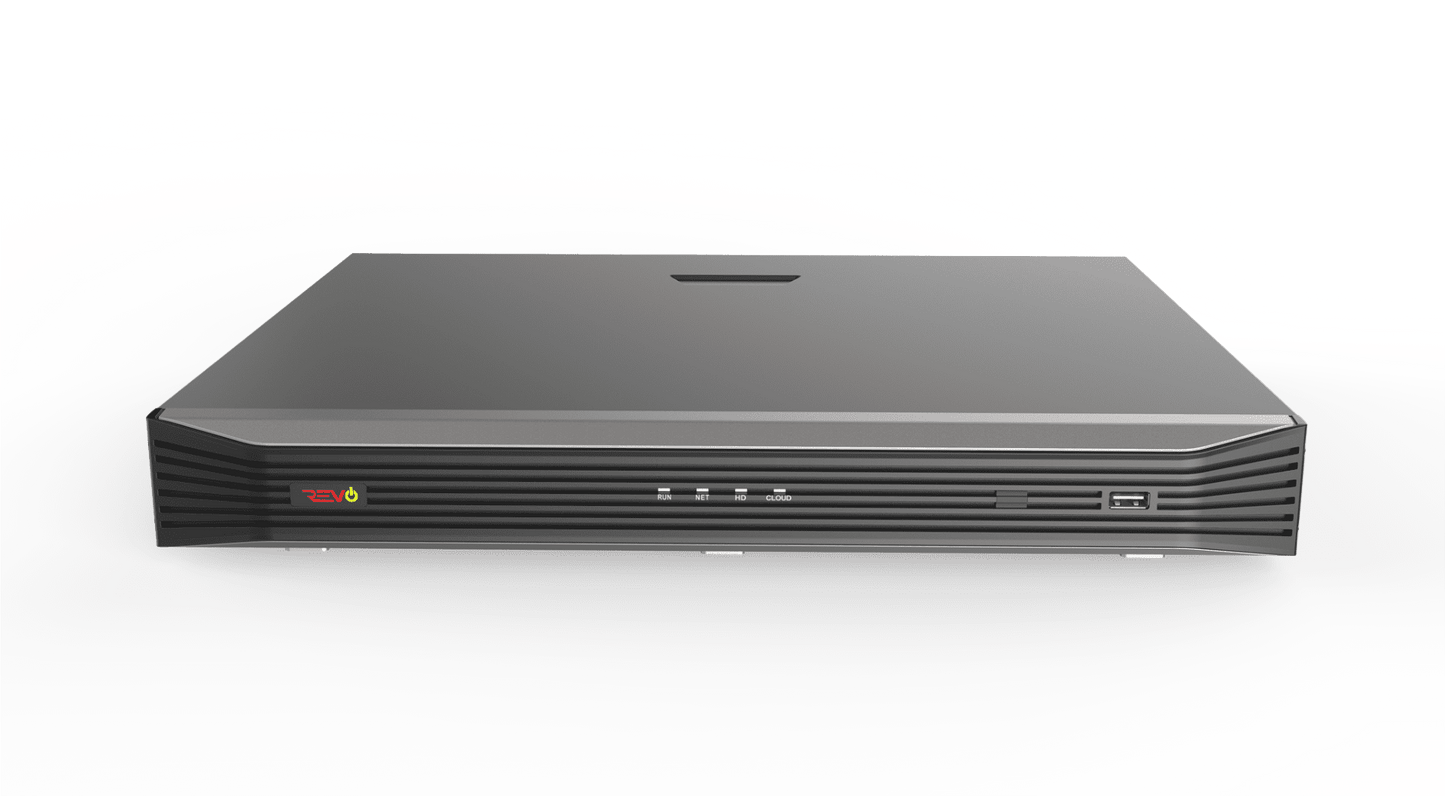

Ultra HD 16 Channel NVR

Ultra HD 16 Channel NVR

In stock
$1,199.99
$1,199.99
Sale Sold out
Storage
Guaranteed Safe Checkout pyament-icon
icon1

Free delivery

over $100

iocn2

Same day

dispatch

icon3

2-year

warranty

Key Features

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • 2 SATA HDD, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
View full details
Also Available in a complete security bundle

Also Available in a complete security bundle

This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.

VIEW BUNDLE OPTIONS

Save more with bundle deals!

...

DVR-RU16NVR2 16 Channel Digital Video Recorder

Video and Audio
IP Video Input 16-ch
Two-way audio Input 1-ch, RCA
Network
Incoming bandwidth 320Mbps
Outgoing bandwidth 160Mbps
Remote connection 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser IE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Two-way Audio 1-ch, RCA(Using the audio input and output)
Audio Compression 1-ch, RCA(Using the audio input and output)
Liveview display 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Compression Ultra 265/H.265/H.264
Live view/ Playback 16MP/ 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Hard Disk
SATA 2 SATA interface
Capacity Up to 10TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm in 8-CH
Alarm out 2-CH
RS485 1
RS232 NA
PoE
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port ; Max 240W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC
Power Consumption: ≤ 20W (without HDD)
Consumption ( without HDD and PoE ) ≤ 20 W
Working Temperature +14°F~+131°F, (-10°C~+ 55°C) Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 15.0″×12.7″×2.1″ (380mm × 322mm × 53mm)
Weight ( without HDD ) ≤ 5.73lb (2.6Kg)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
General Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart
VCA Detection by Camera Face Detection, Face Comparison, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave
Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire
Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body
Search, General Search, People Counting Report
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion
Prevention (SIP), Face
Detection, Face
Comparison, Vehicle
Detection, UMD, Video
Metadata, Traffic
Monitoring by Camera		 Total 8-ch
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 16 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. View your cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using MyRevoCloud. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.

Specs and design can change without previous notice
