SKU: RU42ABNDL-2
Limited time offer

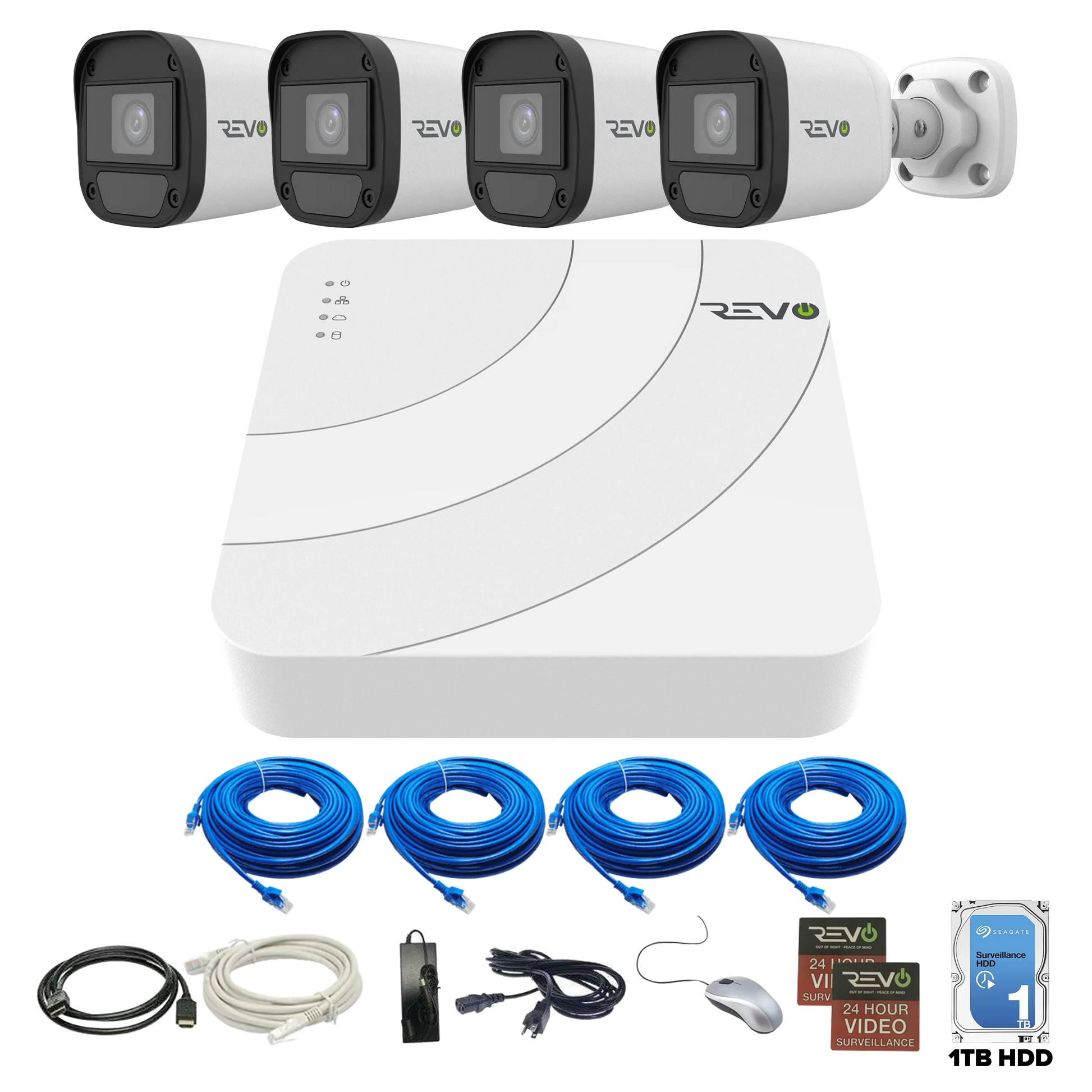

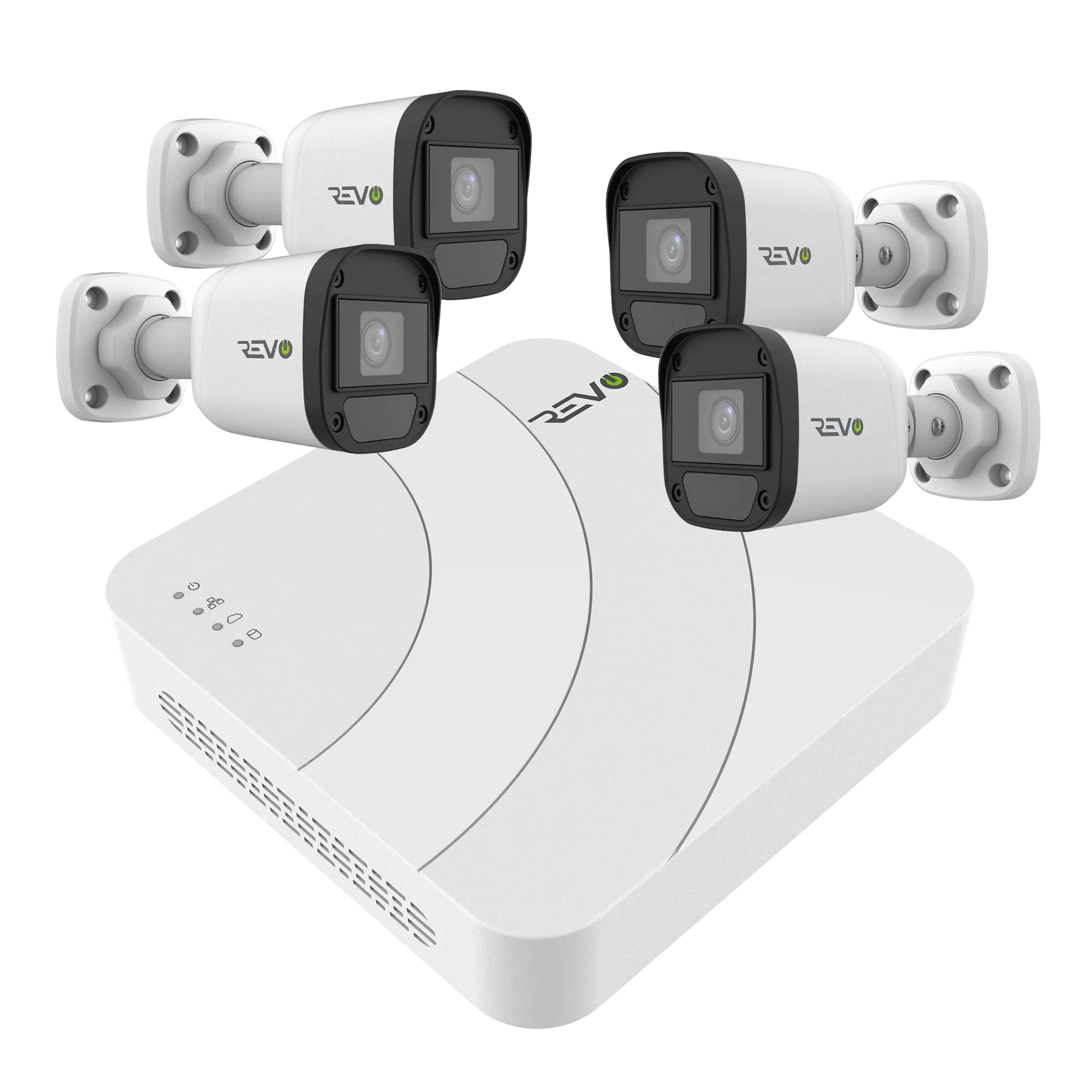

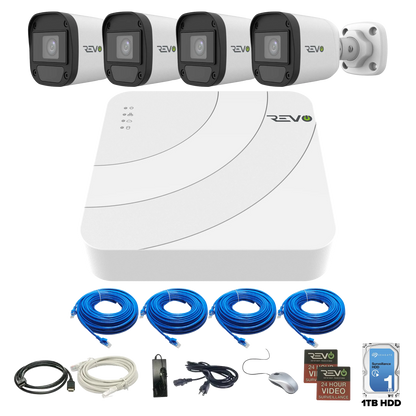

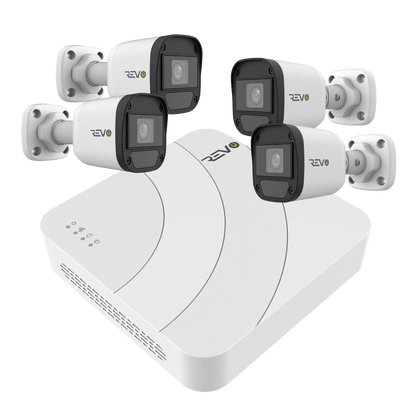

REVO ULTRA Blue Series 4 CH IP Video Surveillance System, 4 CH 4K NVR, 1TB HDD, 4x 4 Megapixel Indoor/Outdoor IR Bullet Cameras - Remote Access via Smart Phone, Tablet, PC & MAC
REVO ULTRA Blue Series 4 CH IP Video Surveillance System, 4 CH 4K NVR, 1TB HDD, 4x 4 Megapixel Indoor/Outdoor IR Bullet Cameras - Remote Access via Smart Phone, Tablet, PC & MAC
Couldn't load pickup availability
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
Save more with bundle deals!

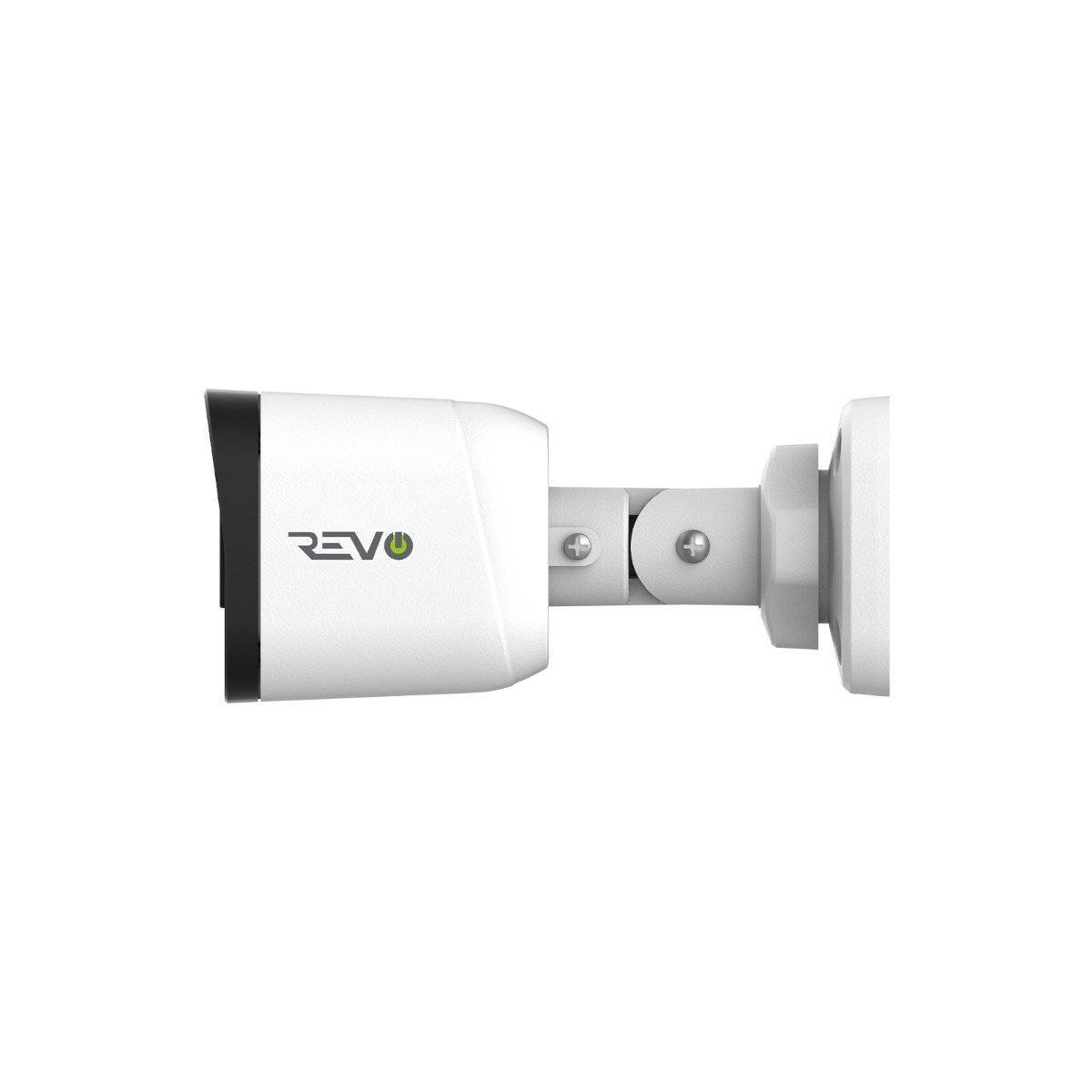

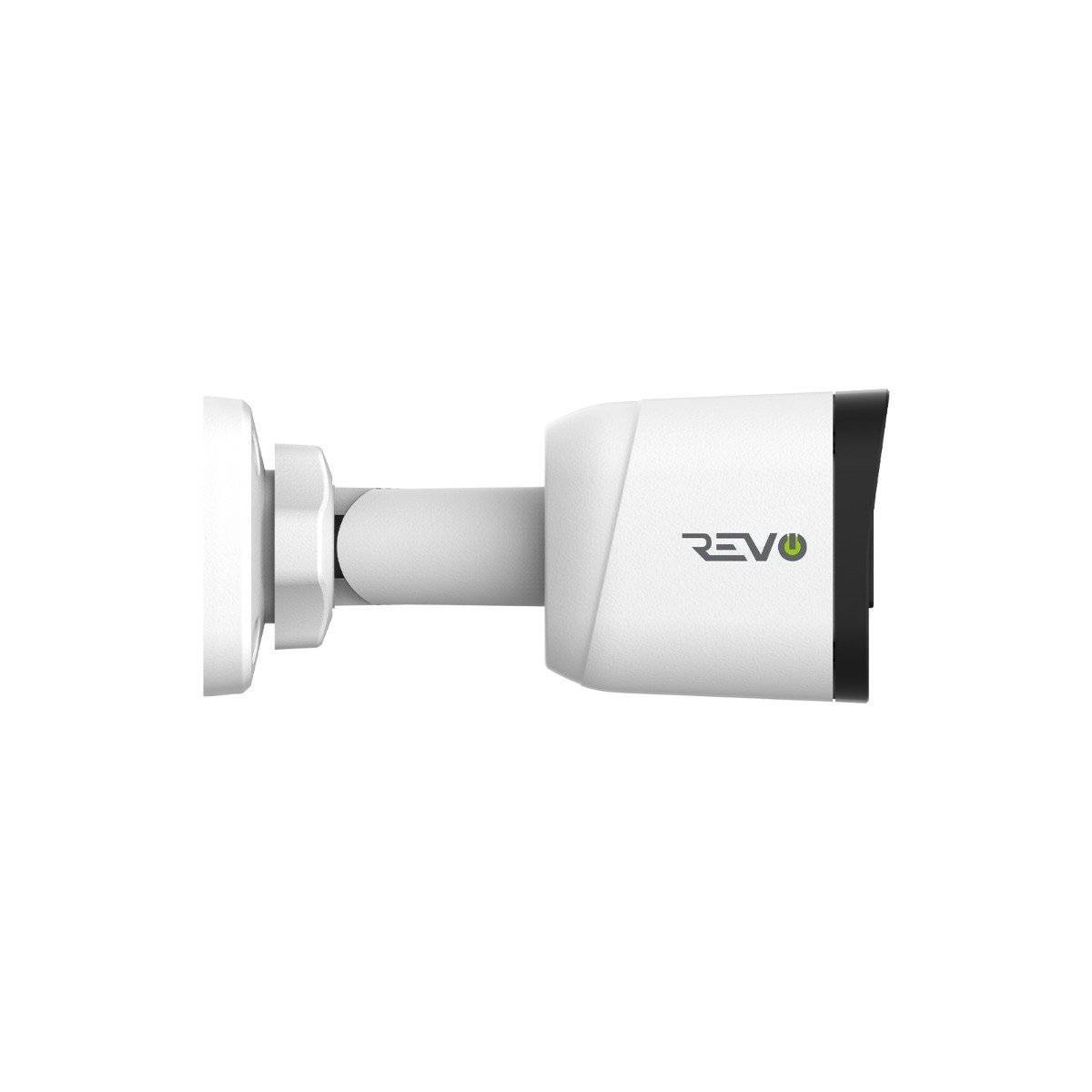

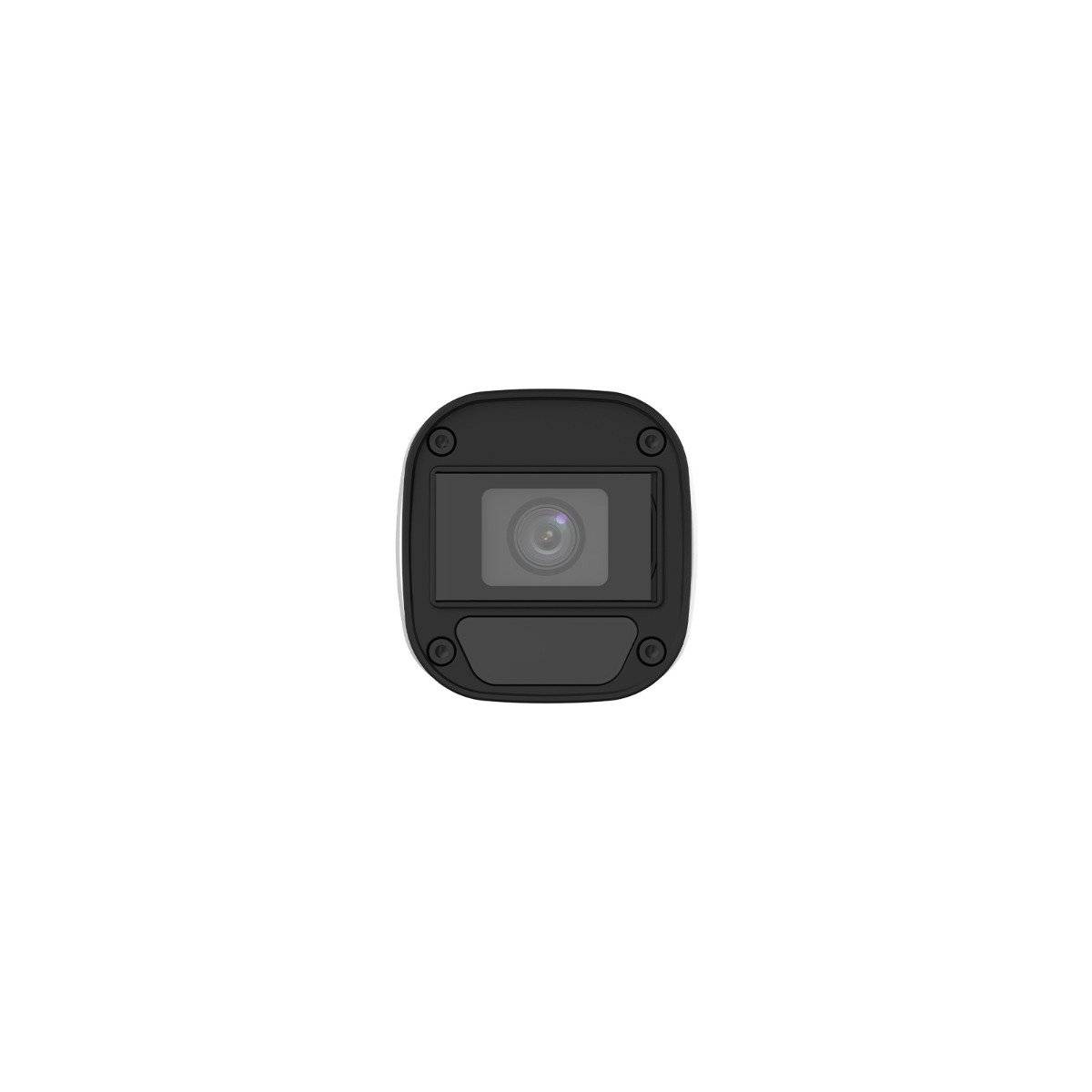

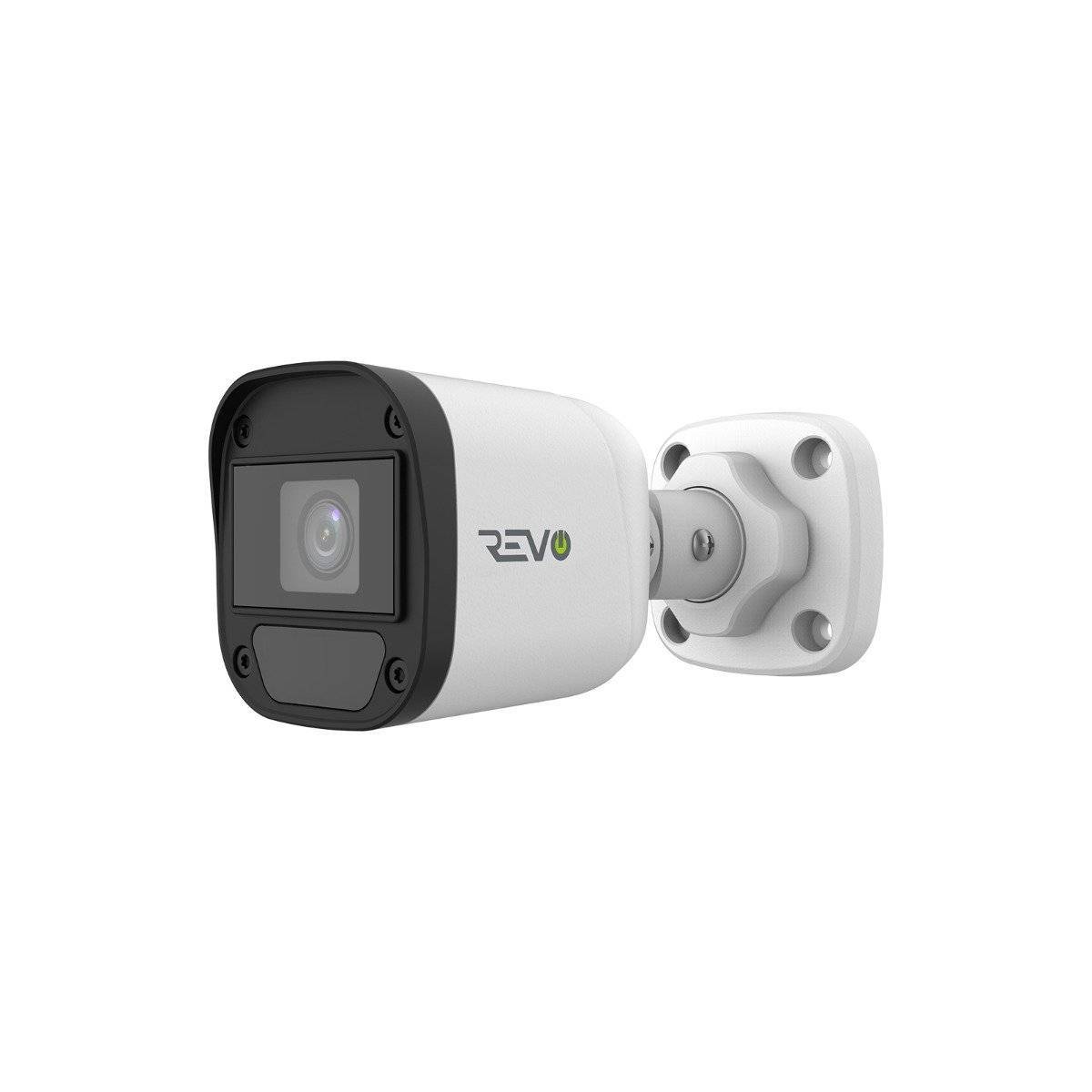

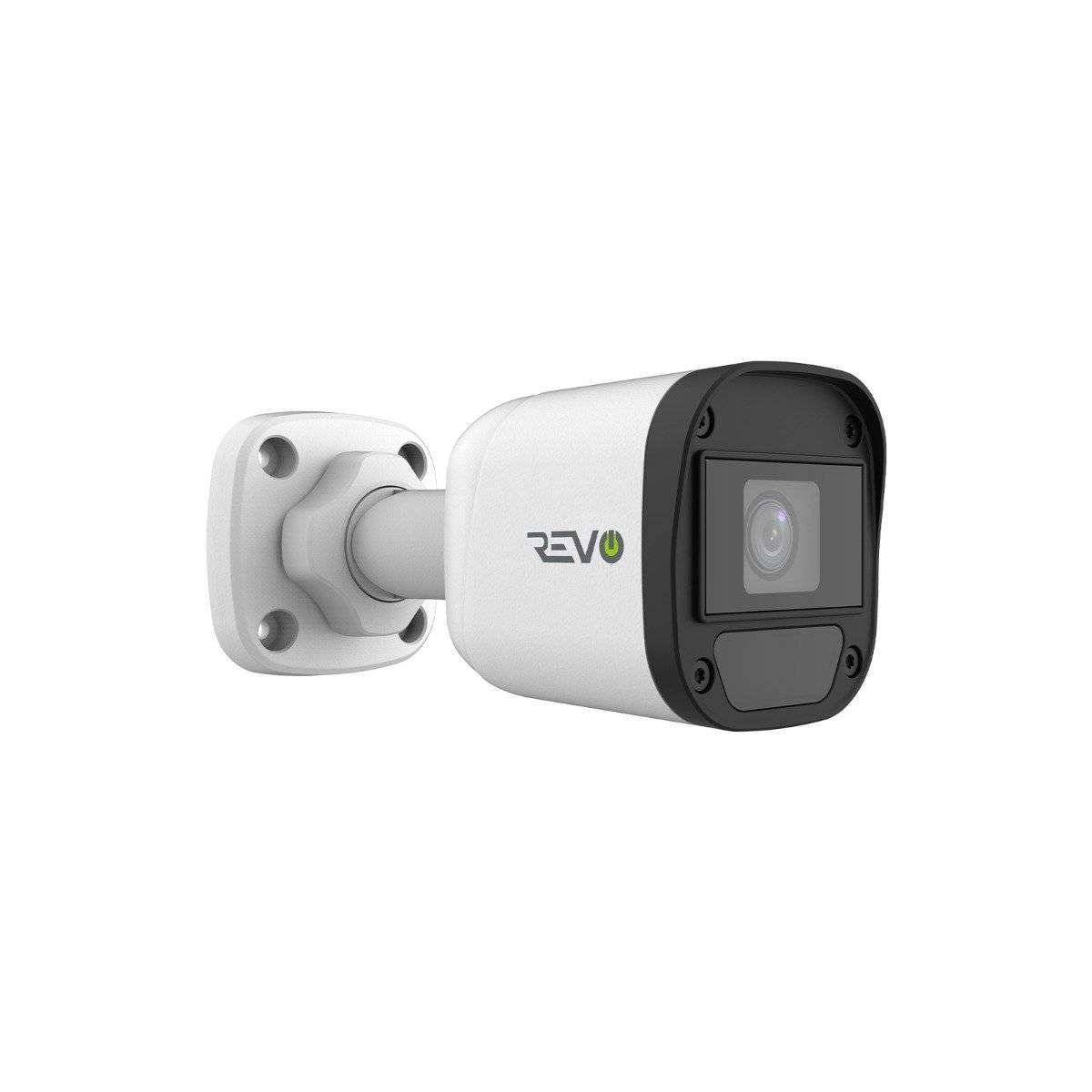

RUCB2M-1 1080p IR Bullet Camera
| Camera | |
|---|---|
| Sensor | 1/2.8″ , 4.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 79.7° |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55dB |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 1920×1080 |
| Video Compression | H.264/MJPEG |
| Frame Rate | 1080p (1920×1080): Max. 30 fps; 720p (1280×720): Max. 30 fps ; D1 (720×576): Max. 30fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC, or PoE (IEEE802.3 af Power Consumption: Max 6.4 W with IR on |
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |

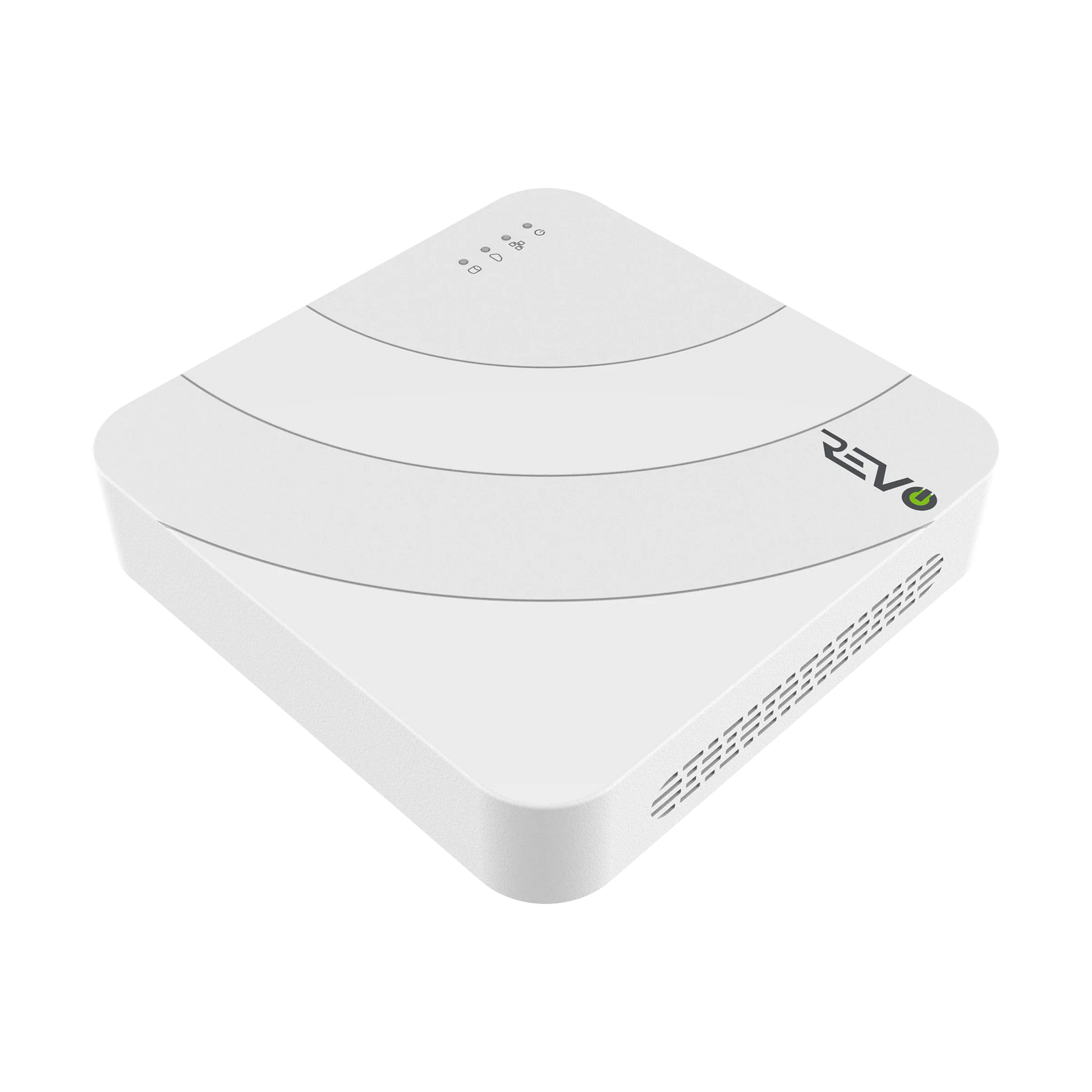

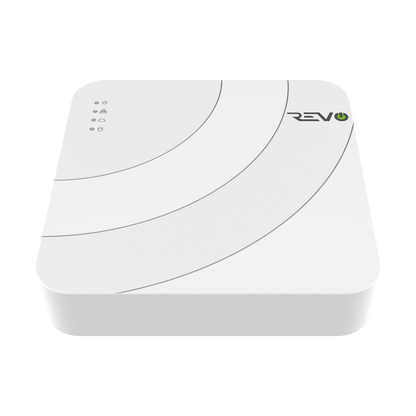

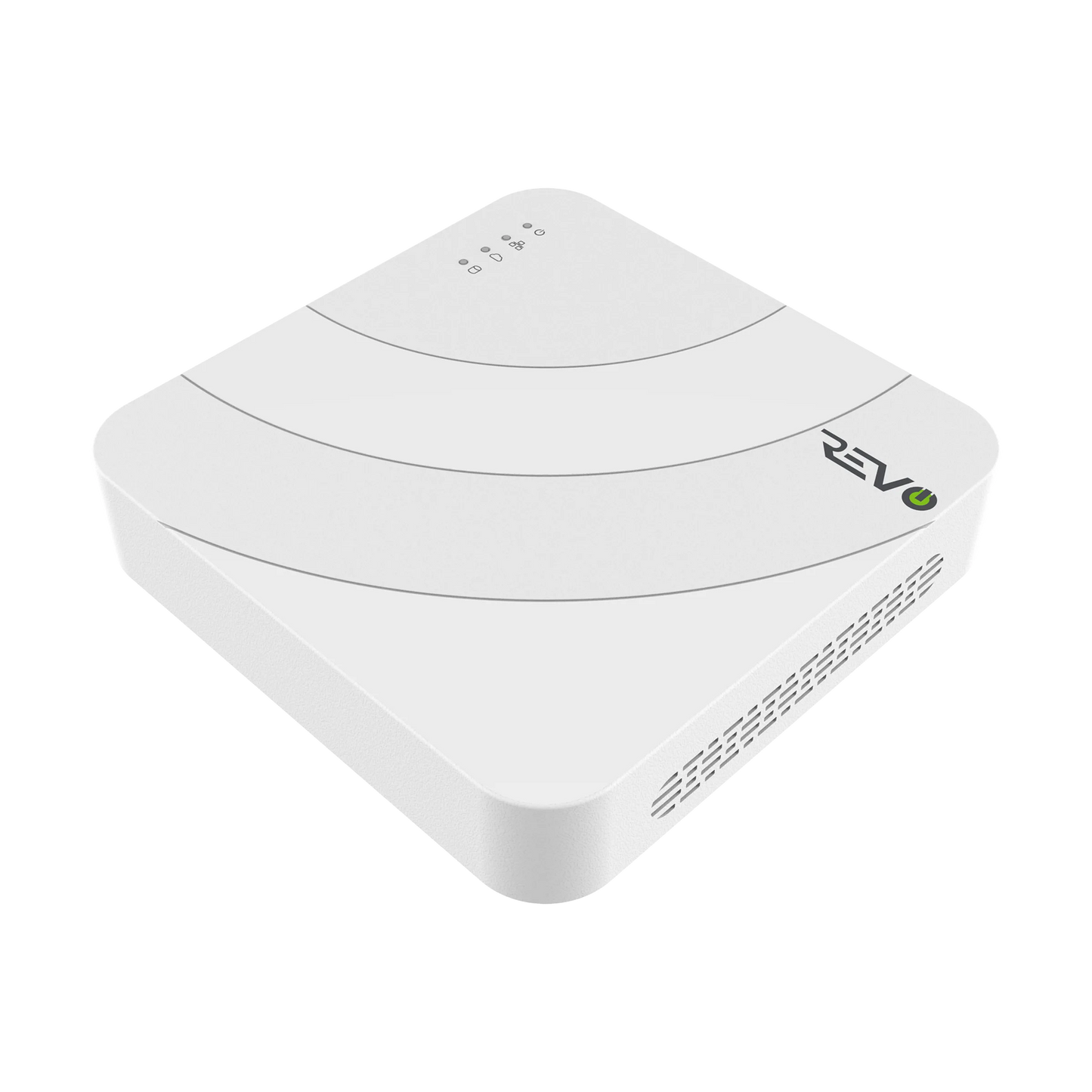

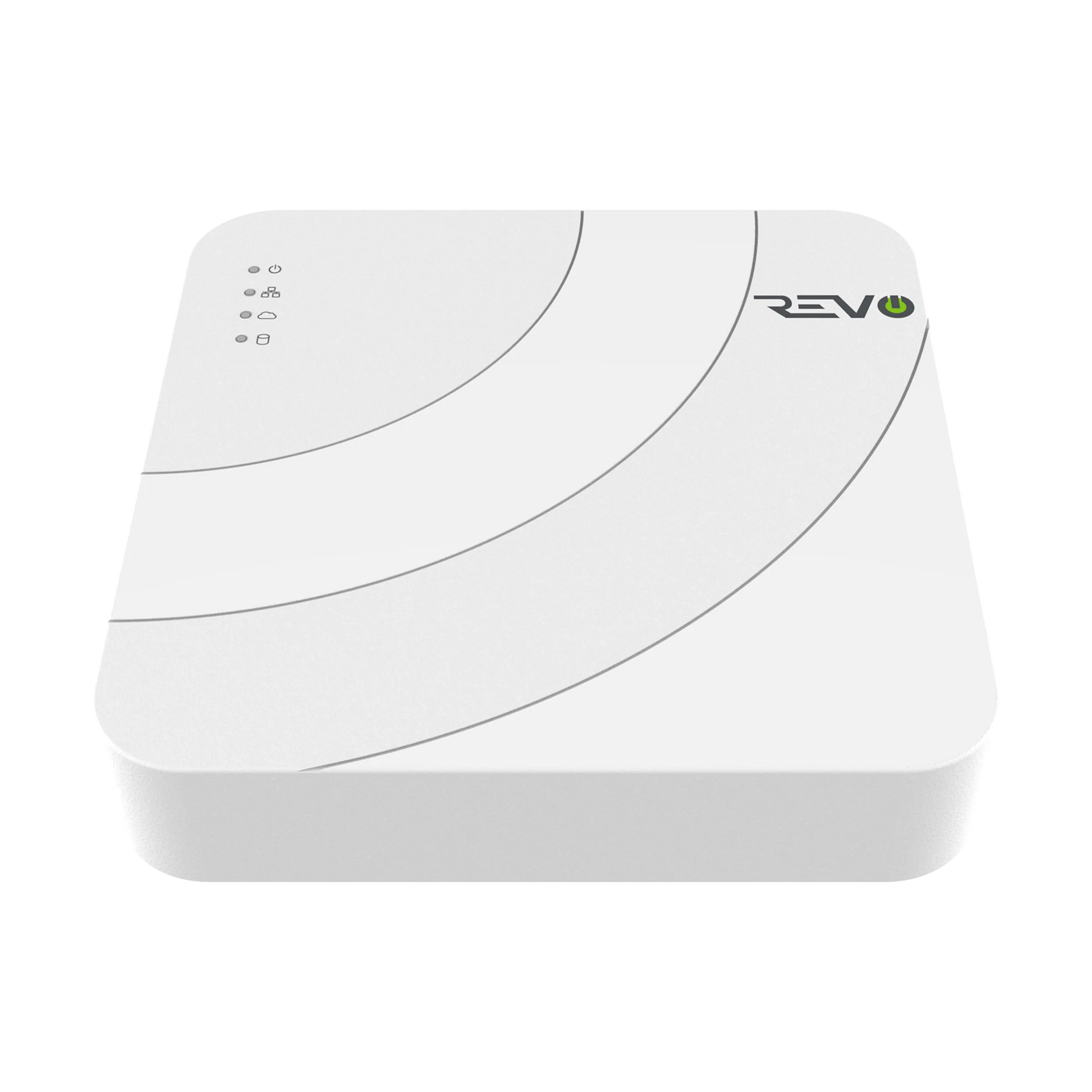

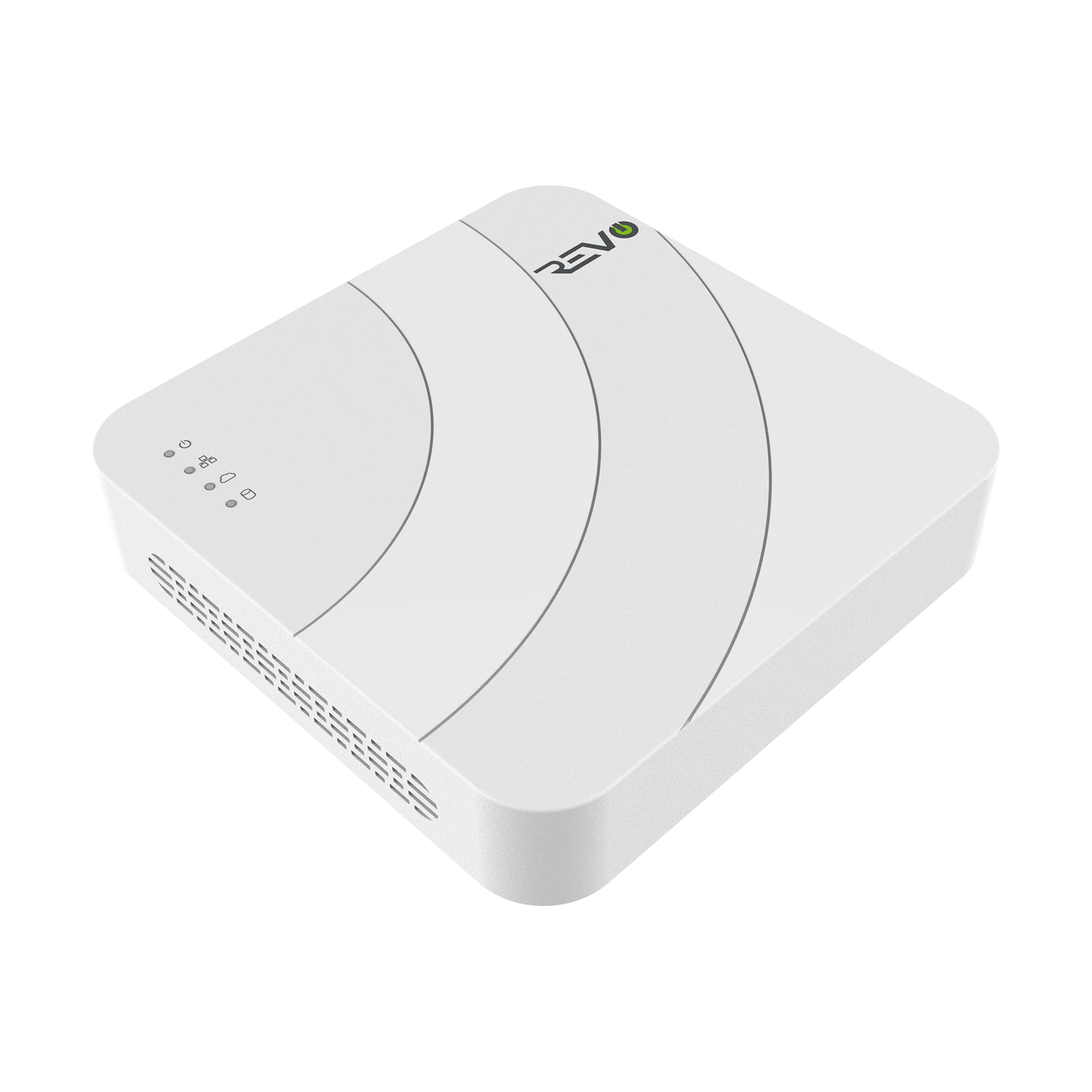

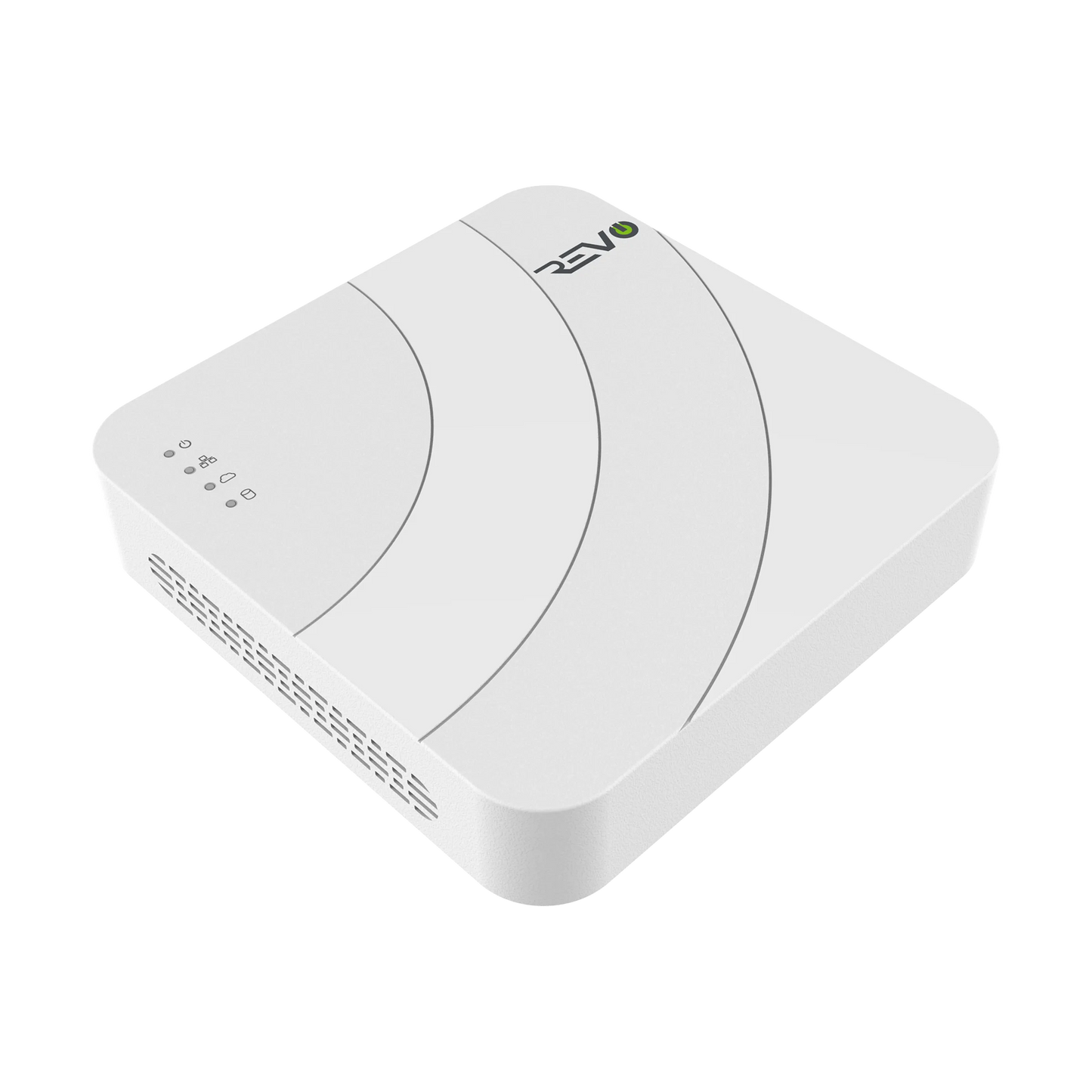

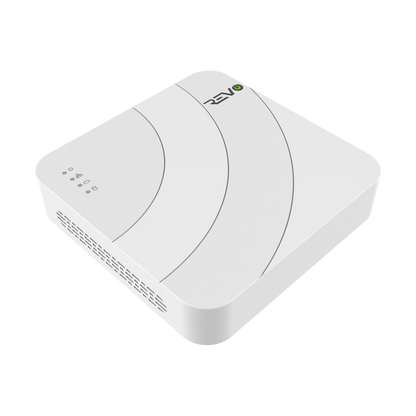

DVR-RU4NVR2 4 Channel Digital Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 4-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
|---|---|
| Incoming bandwidth | 60Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Decoding | |
|---|---|
| Compression | H.265/H.264 |
| Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25 |
| Software | |
|---|---|
| Computer Operating System | Windows, Mac OS |
| Internet Viewing | HomeSafe View App |
| Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
| Hard Disk | |
|---|---|
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
|---|---|
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| PoE | |
|---|---|
| Interface | 4 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30 W for single port Max 54W in total (13.5 W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
|---|---|
| Power Supply | 48V DC |
| Consumption ( without HDD and PoE ) | ≤ 8 W |
| Working Temperature | +14°F ~ +131°F (-10°C ~ + 55°C) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 42 x 205 x 205mm (1.7’’ x 8.1’’ x 8.1’’) |
| Weight ( without HDD ) | 1.3 lb (0.59kg) |
"With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the best that Revo offers. Its unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology. The RU42ABNDL-2 is a complete, plug-and-play HD surveillance system with 4 channel NVR, 1TB, and 4x Four Megapixel HD Indoor/Outdoor Bullet cameras. The REVO ULTRA NVR is powerful featuring state-of-the-art H.265 Compression and 4K video output. Revo Ultra cameras feature optical grade, IR anti-reflection glass, massive 4 Megapixel Sensors, and double the resolution of standard 1080p. They also come equipped with Smart commercial grade “OSRAM” LEDs. They strongly and evenly illuminate the scene up to 100' in total darkness. Night vision video quality is unmatched. The cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F. S.M.A.R.T. technology enables the system to monitor its own health and alert the user of any malfunction. The polished look and intuitive feel of the Ultra's interface is a joy for everyday use whether you're using the NVR itself, the Mobile App, Computer Software, or Browser. Setup is a snap with PoE and Cat 5e cable. One cable carries everything between the Revo Ultra camera and NVR. "
Key Features
5MP Crystal Clear
See every detail in stunning clarity
60ft Night Vision
IR night vision in complete darkness
IP67 Weatherproof
Built to handle any weather condition
NDAA Compliant
Trusted and government approved
Built-in Microphone
Captures audio alongside video
60ft Cable Included
Ready to install right out of the box
Specs and design can change without previous notice
