SKU: RU8NVR3X-1T - RU8NVR3X-2T

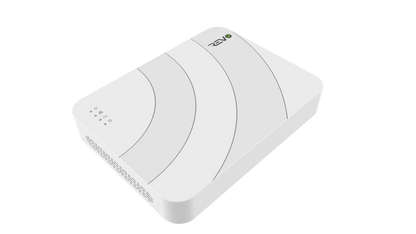

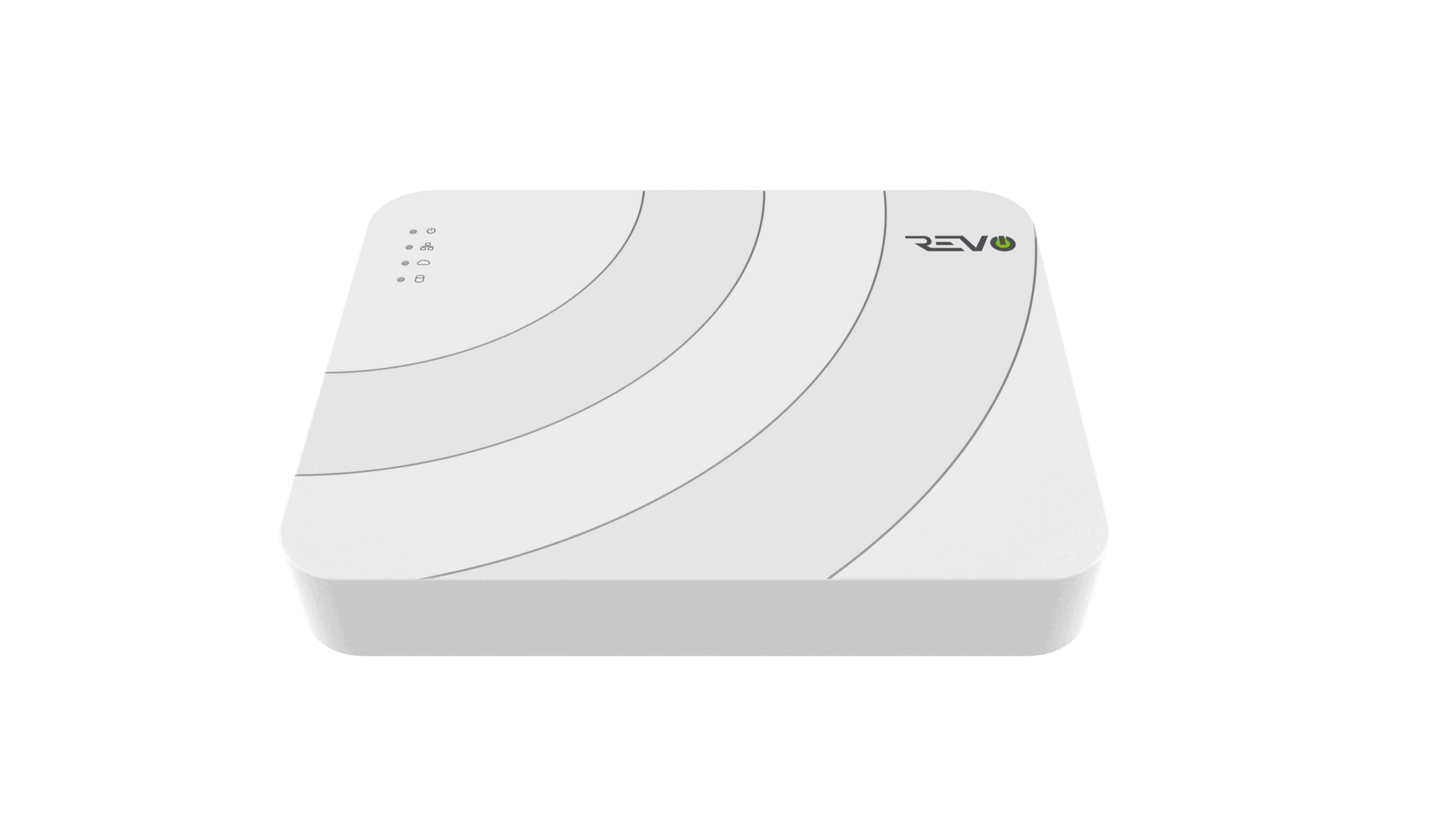

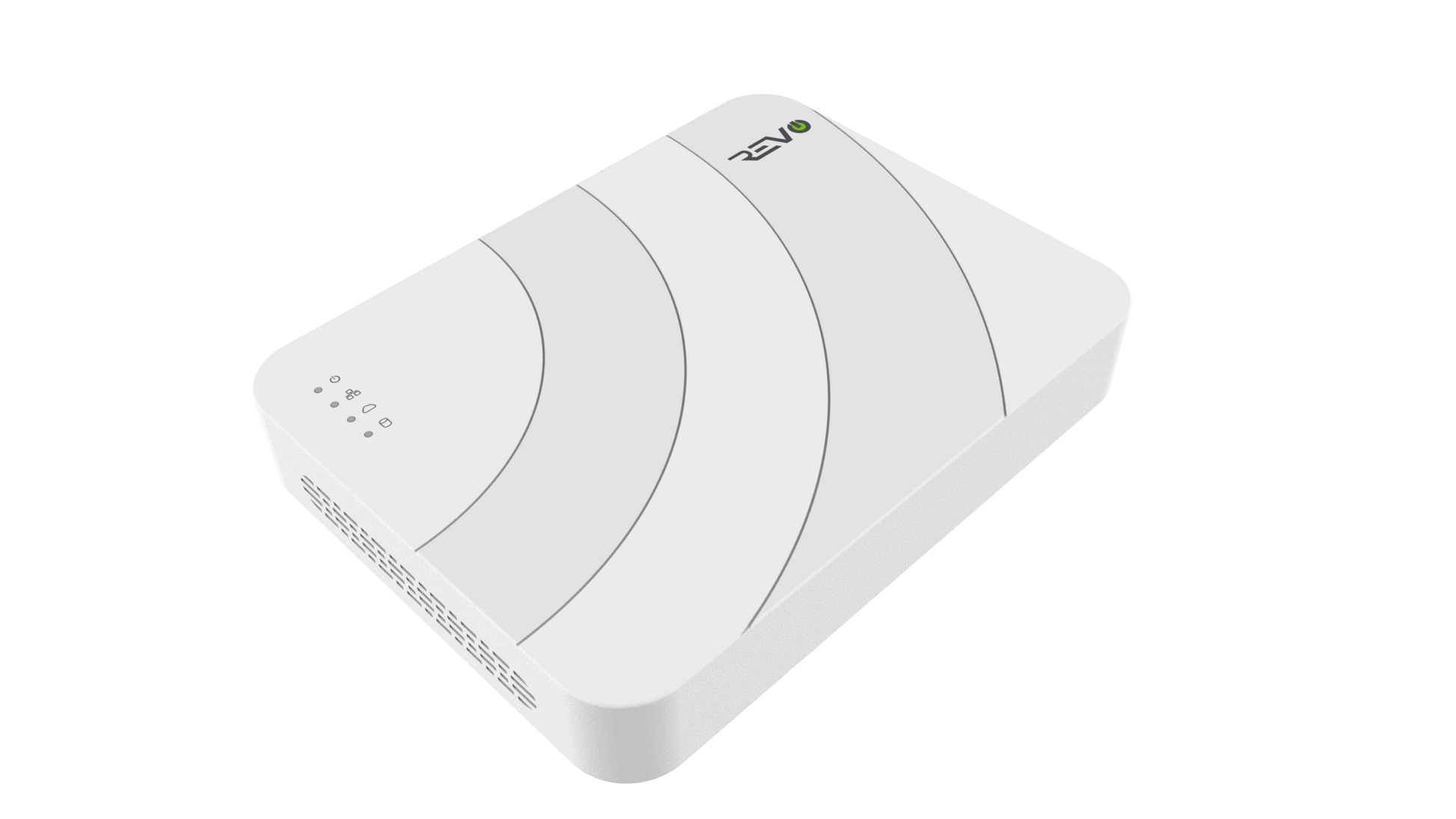

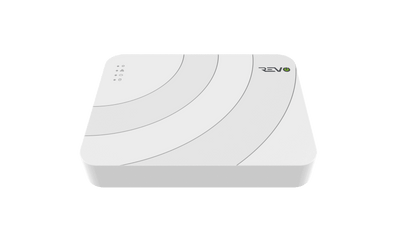

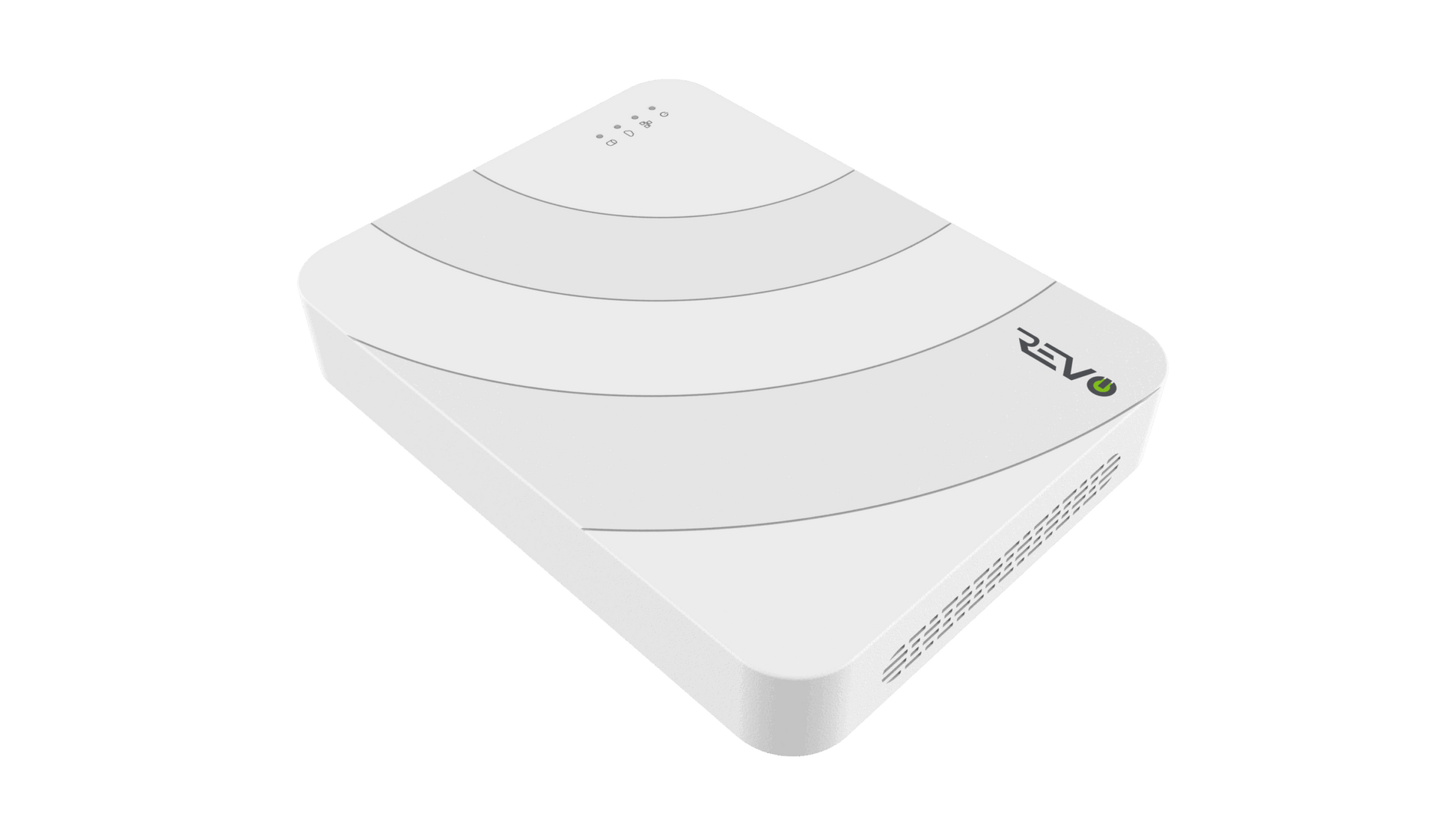

REVO ULTRA 3rd Generation 8CH 1 SATA 8K NVR
REVO ULTRA 3rd Generation 8CH 1 SATA 8K NVR
In stock
Regular price
$388.08
Sale price
$388.08
Regular price
Quantity
Couldn't load pickup availability
Guaranteed Safe Checkout
Free delivery
over $100
Same day
dispatch
2-year
warranty
Key Features
Also Available in a complete security bundle
This camera is available in a complete security system with recorder, storage, and multiple cameras — everything you need for protection.
VIEW BUNDLE OPTIONS
Save more with bundle deals!
DVR-RU4NVR3X 4/8 Channel Network Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 8-ch |
| RCA Audio Input | 1-ch |
| Network | |
|---|---|
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote connection | 128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output |
VGA: 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1024×768/60Hz HDMI: 4K(3840×2160)/60Hz, 4K(3840×2160)/30Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Live view Display | 1/4/6/8/9 |
| RCA Audio Output | 1-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
|---|---|
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability |
Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30 |
| Resolution Capability |
Each channel supports up to 8192 pixels (width) and 4096 pixels (height) |
| Audio Compression | G.711A, G.711U |
| Two-way Audio | |
|---|---|
| Audio Input/Output | 1-ch, RCA |
| Snapshot | |
|---|---|
| FTP/Schedule/Event Snapshot | 1-ch, RCA |
| Recording | |
|---|---|
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 8-ch |
| Smart (VCA) | |
|---|---|
| VCA Detection by IPC |
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring |
| VCA Search |
Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | Total 8-ch(Face Detection, SIP, UMD |
| Alarm | |
|---|---|
| General Alarm |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert/Alarm | |
|---|---|
| Alerts |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Hard Disk | |
|---|---|
| SATA | 1 SATA interface |
| Capacity | Up to 18 TB for each HDD (depends on environment and HDD size) |

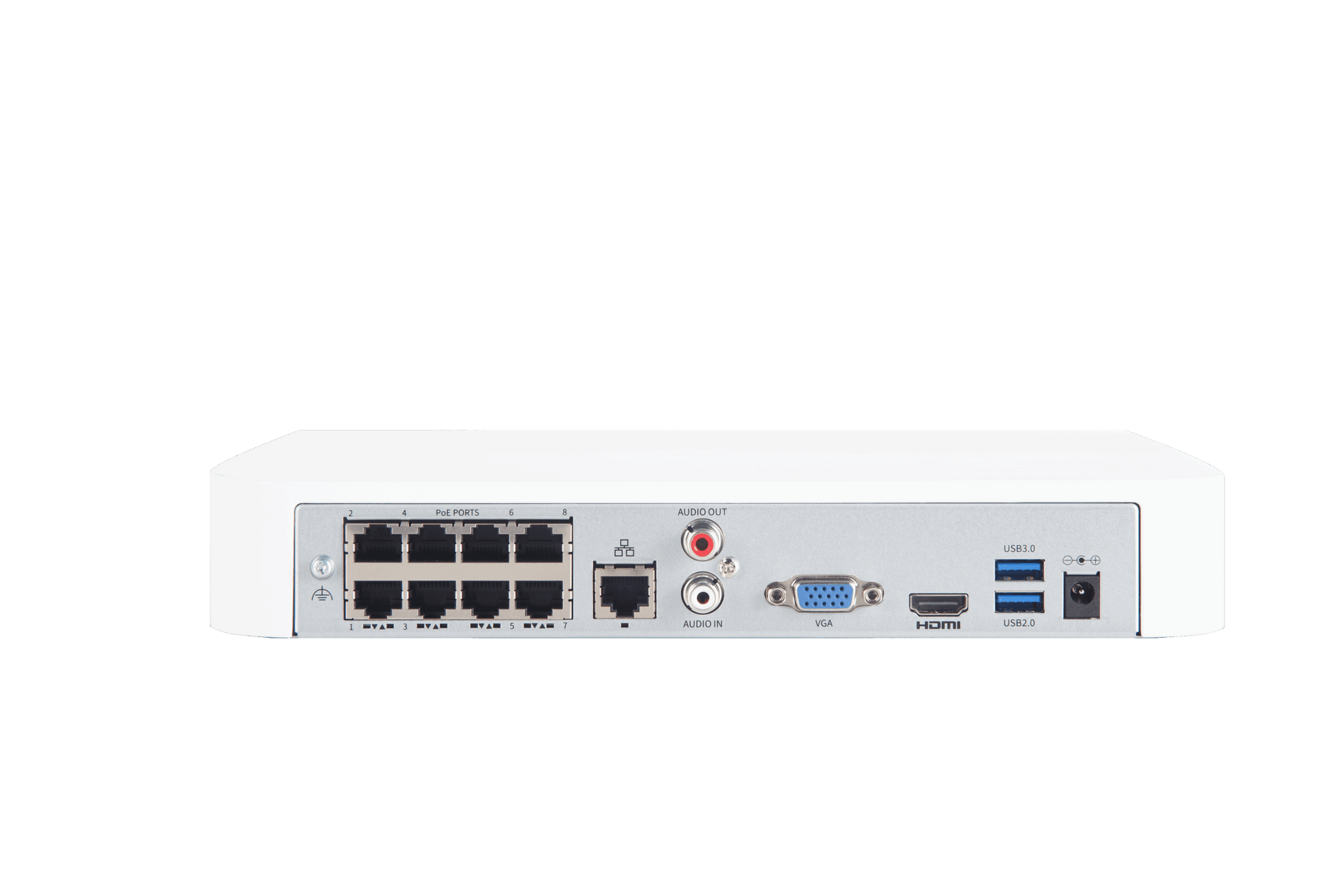

| External Interface | |
|---|---|
| Network Interface | 4 RJ45 10/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE | |
|---|---|
| Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port, Max 50W in total |
| Supported Standard | IEEE 802.3af, IEEE 802.3af |
| General | |
|---|---|
| Power Supply | 48V DC |
| Consumption (without HDD) | ≤10W |
| Working Temperature | +14°F ~ +131°F (-10°C ~ +55°C) |
| Working Humidity | ≤90% RH (non-condensing) |
| Dimensions | 8.1″ × 8.3″ × 1.8″ (205mm × 212mm × 46mm) |
| Weight (without HDD) | 1.76 lb (0.8kg) |
| Certification | FCC, UL, CE, RoHS |
With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra's unique design complements any home or business. The Revo Ultra's superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 1 SATA 8CH REVO ULTRA 8K NVR features state of the art 8K Video Output, H.265 Compression, and support up to 8K Cameras. View your cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using myrevocloud. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you'd like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.
Specs and design can change without previous notice
