FREE delivery Technical Specifications

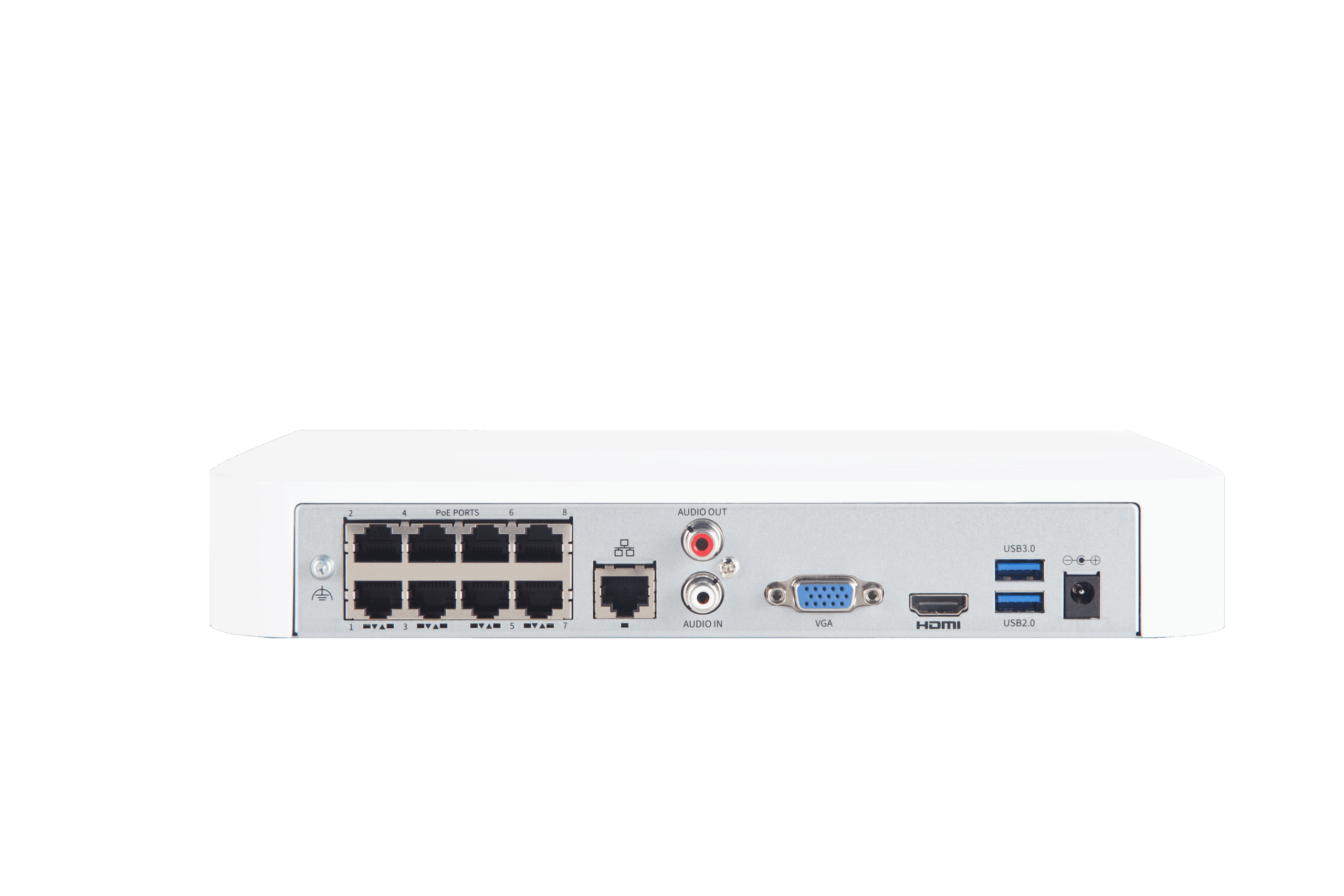

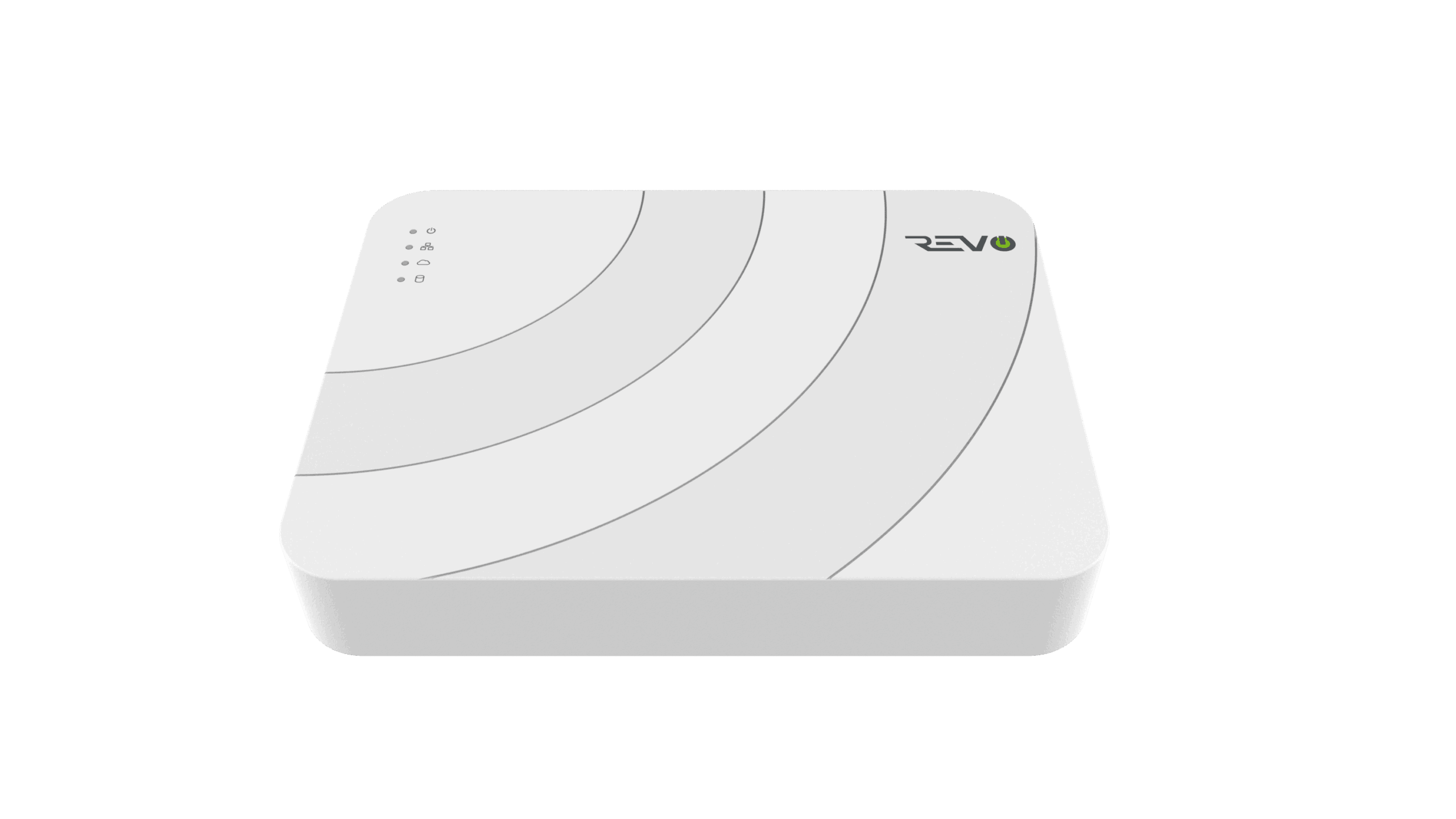

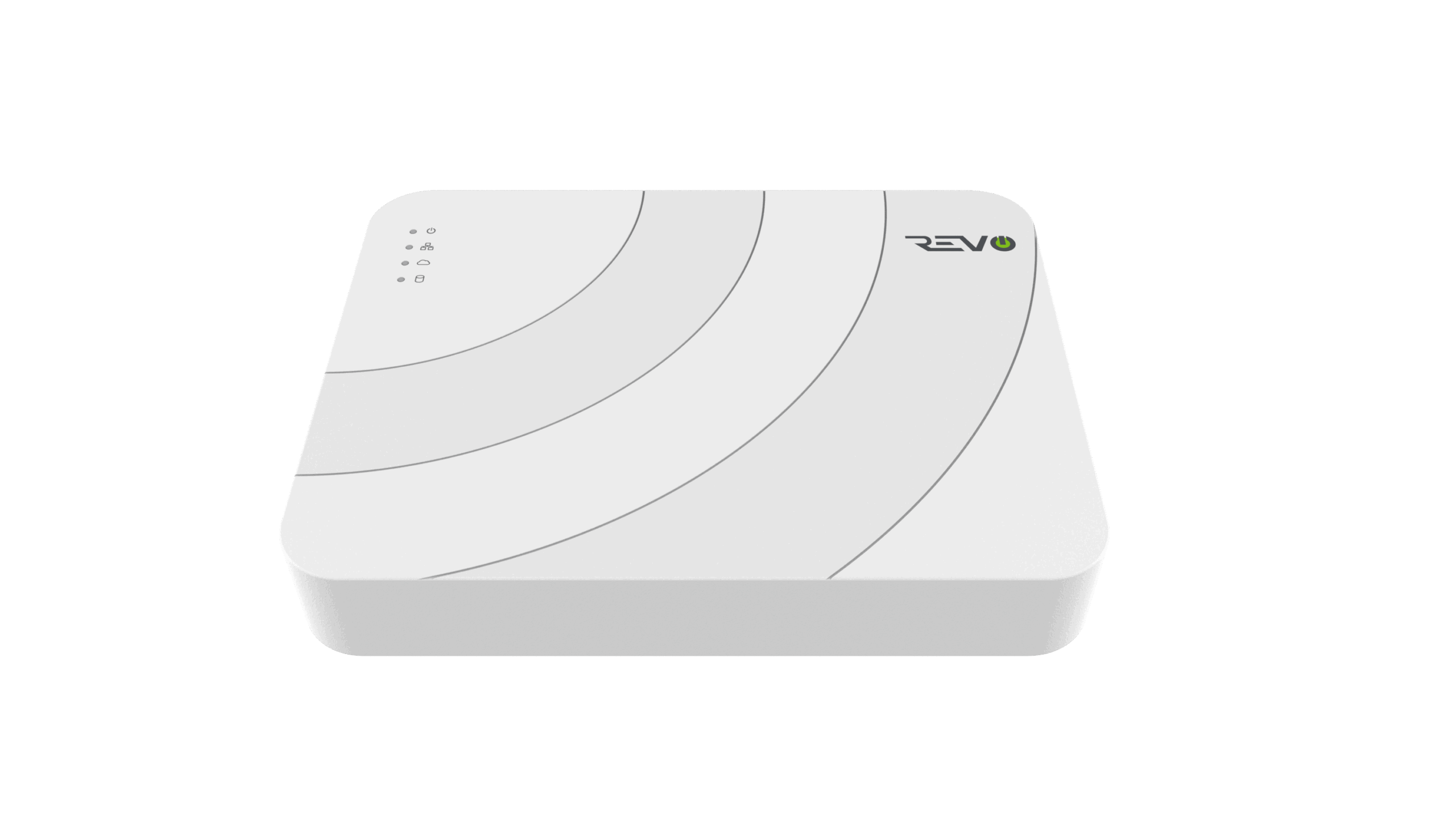

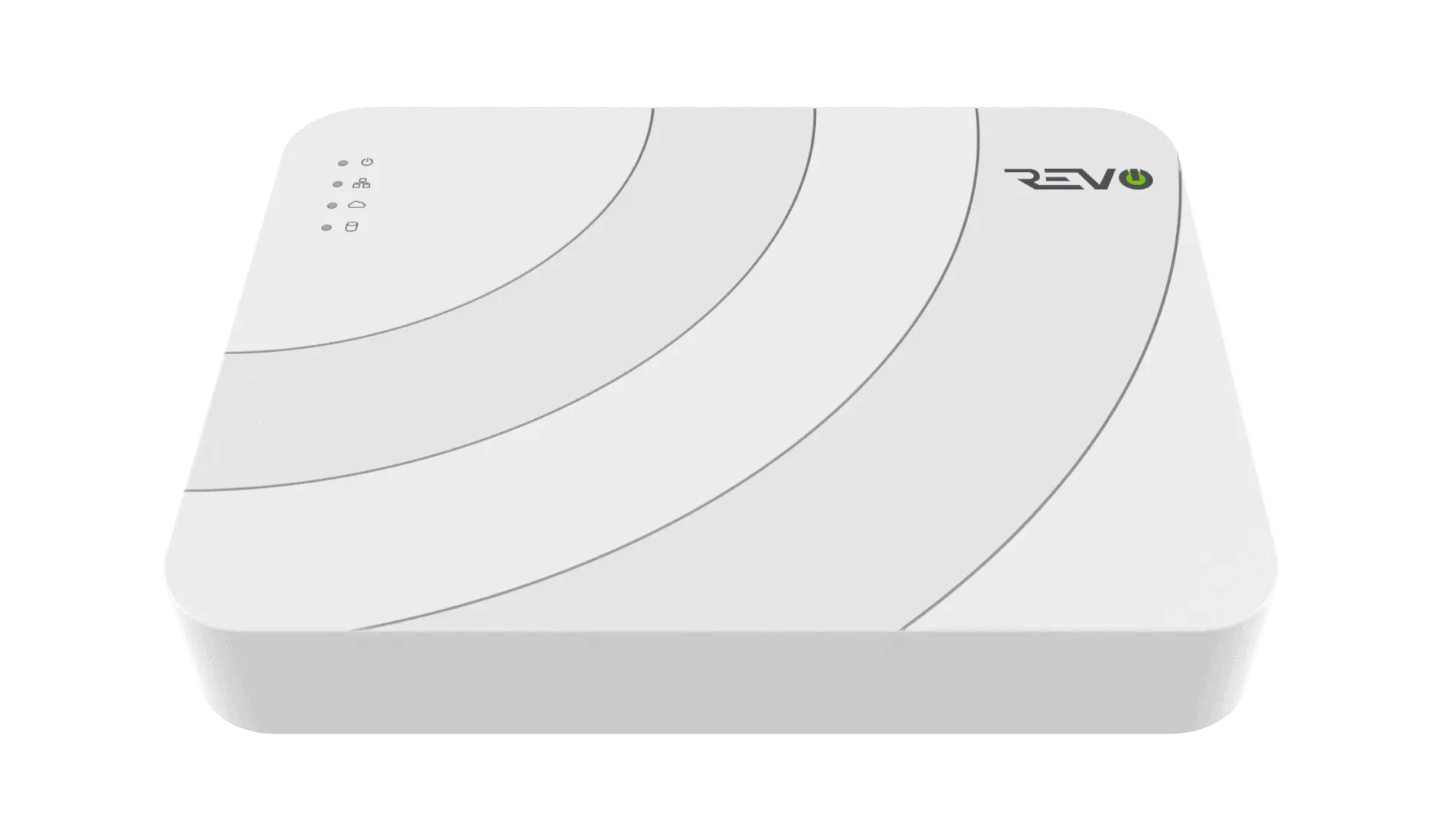

DVR-RU4NVR3X 4/8 Channel Network Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 8-ch |
| RCA Audio Input | 1-ch |
| Network | |
|---|---|
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote connection | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | VGA: 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1024×768/60Hz HDMI: 4K(3840×2160)/60Hz, 4K(3840×2160)/30Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Live view Display | 1/4/6/8/9 |
| RCA Audio Output | 1-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
|---|---|
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x [email protected]: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30 |
| Resolution Capability | Each channel supports up to 8192 pixels (width) and 4096 pixels (height) |
| Audio Compression | G.711A, G.711U |
| Two-way Audio | |
|---|---|
| Audio Input/Output | 1-ch, RCA |
| Snapshot | |
|---|---|
| FTP/Schedule/Event Snapshot | 1-ch, RCA |
| Recording | |
|---|---|
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 8-ch |
| Smart (VCA) | |
|---|---|
| VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring |
| VCA Search | Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | Total 8-ch(Face Detection, SIP, UMD |
| Alarm | |
|---|---|
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert/Alarm | |
|---|---|
| Alerts | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Hard Disk | |
|---|---|
| SATA | 1 SATA interface |
| Capacity | Up to 18 TB for each HDD (depends on environment and HDD size) |
| External Interface | |
|---|---|
| Network Interface | 4 RJ45 10/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE | |
|---|---|
| Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port, Max 50W in total |
| Supported Standard | IEEE 802.3af, IEEE 802.3af |
| General | |
|---|---|
| Power Supply | 48V DC |
| Consumption (without HDD) | ≤10W |
| Working Temperature | +14°F ~ +131°F (-10°C ~ +55°C) |
| Working Humidity | ≤90% RH (non-condensing) |
| Dimensions | 8.1″ × 8.3″ × 1.8″ (205mm × 212mm × 46mm) |
| Weight (without HDD) | 1.76 lb (0.8kg) |
| Certification | FCC, UL, CE, RoHS |
