NDAA Compliant

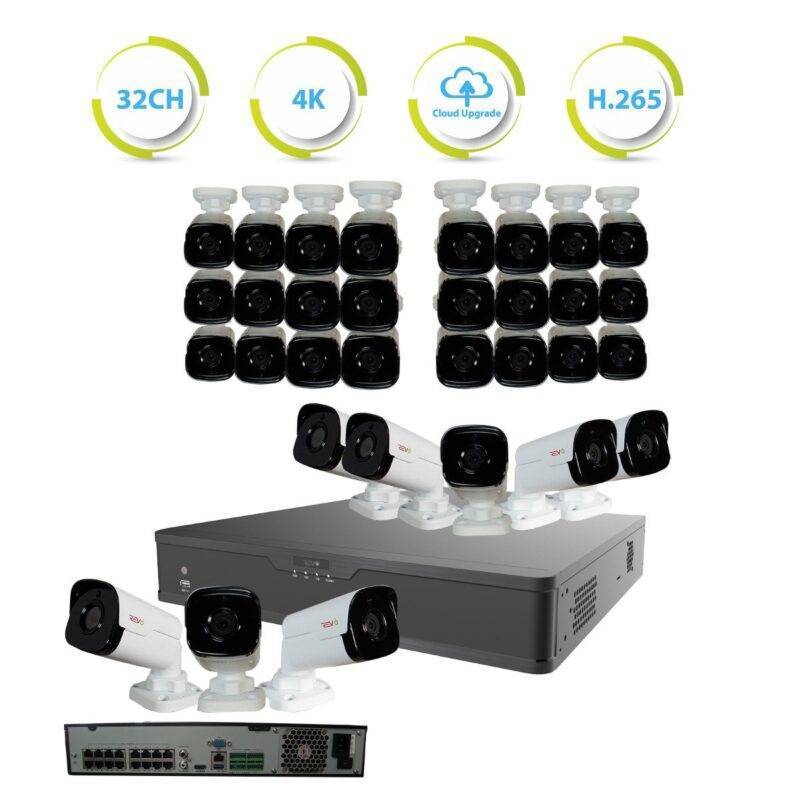

Ultra Plus HD 32 Ch. 8TB NVR Surveillance System with 32 Bullet Cameras

Name: Ultra Plus HD 32 Ch. 4TB NVR Surveillance System with 32 Bullet Cameras
SKU: RUP321B32G-8T
Price: 3638.24 USD
Availability: InStock
Rating: 5 (3 reviews)

SKU: RUP321B32G-8T

$3,638.24

FREE delivery

Same Day Dispatch

In stock

Core features

32 Ch. 8TB H.265 IP NVR with 16 RJ45 PoE Ports + 16 Ch. PoE Switch
4MP Indoor/Outdoor IP Bullet Cameras with 100’ Night Vision (32)
100’ Cat 5e Cable Included (32)
1-ch VGA and 1-Ch HDMI (4K)
Supports up to 12MP Cameras
Supports easy firmware upgrade via Cloud (Recorder & Cameras)
32TB Max Hard Drive Capacity
Corridor View Mode – Perfect for hallways, doors, windows.
Two-Step Smartphone View Setup – iPhone and Android
myrevocloud – Access your Ultra NVR from virtually any Internet Explorer browser
Revo Ultra EZStation Computer Software – Conveniently view multiple units at once

Delivery & Returns

For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.

Technical Specifications

DVR-RUP32NVR1 32 Channel Digital Video Recorder

Video and Audio
IP Video Input	32-ch
Two-way audio Input	1-ch, RCA

Network
Incoming bandwidth	320Mbps
Outgoing bandwidth	320Mbps
Remote connection	128

Video/Audio Output
HDMI/VGA Output	HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch

Decoding
Compression	H.265/H.264
Live view/ Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30

Software
Computer Operating System	Windows, Mac OS
Internet Viewing	HomeSafe View App
Handheld Device Supported	iOS, Android, 3G/4G Smartphones & Tablets

Hard Disk
SATA	4 SATA interface
Capacity	up to 8TB for each disk

External Interface
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet Interface
Serial Interface	1 x RS485
USB Interface	Front panel: 1 x USB2.0 Rear panel: 1 x USB3.0
Alarm in	16-CH
Alarm out	4-CH
Power Output	12 VDC

PoE
Interface	16 independent 100 Mbps PoE network interfaces
Max Power	Max 30 W for single port Max 200W in total (12.5 W for each)
Supported Standard	IEEE 802.3at

General
Power Supply	100 ~ 240 VAC
Consumption ( without HDD and PoE )	≤ 20 W
Working Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity	10% ~ 90%
Dimensions	86 × 442 × 425mm ( 3.4” × 17.4” × 16.7” )
Weight ( without HDD )	≤ 11.55 lb (5.24 Kg)

RUCB36-1 4MP IR Bullet Camera

Camera
Sensor	1/3″, 4.0 megapixel, progressive scan, CMOS
Lens	[email protected] Angle of view(H): 90.5°
Shutter	Auto/Manual, 1/6~1/8000 s
Min. Illumination	Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 30m (98 ft) IR range
S/N	>55dB
WDR	120dB
Noise Reduction	2D/3D

Video
Max. Resolution	2592×1520
Video Compression	H.264/MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
OSD	Up to 8 OSDs
Motion Detection	Up to 2 areas
Privacy Mask	Up to 4 areas

Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration	API

Interface
Network	1 RJ45 10M/100M Base-TX Ethernet

General
Power	12 V DC, or PoE (IEEE802.3 af 2.0 W (6.4 W with IR on)
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection	IP66

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Enjoy additional professional and premium-residential features with Revo Ultra Plus™. The Revo Ultra’s superb video quality is based on IP, or Internet Protocol, technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. Revo Ultra Plus™ NVRs feature state of the art 4K Video Output, H.265 Compression, support up to 12MP Cameras and up to an astounding 32TB of Hard Drive Capacity. View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using myrevocloud, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you’d like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. Pre-event recording includes video before motion is detected providing valuable context leading up to the incident. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
