With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Enjoy additional professional and premium-residential features with Revo Ultra Plus™. The Revo Ultra’s superb video quality is based on IP technology. The “RUP161BNDL-11” is a complete plug and play HD surveillance system with 16 CH Professional Grade NVR, 4TB & 8x 4MP HD Indoor/outdoor Motorized Audio Capable Turret Cameras. Revo Ultra Plus™ NVRs feature state of the art 4K Video Output, H.265 Compression, support up to 12MP Cameras and up to an astounding 32TB of HDD Capacity (4TB Pre-installed). The “RUCT2812-1” Turret Camera features 4X optical Zoom, IR anti reflection glass, massive 4 Megapixel Sensors, double the resolution of standard 1080p. The 2.8 to 12mm automatic lens allows convenient adjustment of the field of view of the camera. They also come equipped with professional grade “OSRAM” LEDs. They strongly illuminate the scene up to an unprecedented 150’ in total darkness. The “RUCT2812-1” has a built-in microphone for audio streaming and recording. The cameras are built for the outdoors capable of handling temperatures as hot as 140F and as cold as -40F. The “RUCT2812-1” steps up its weather resistant with an IP67 rating. The polished look and intuitive feel of the Ultra’s interface is a joy for everyday use whether you’re using the NVR itself, the Mobile App, Computer Software or Browser.
NDAA Compliant

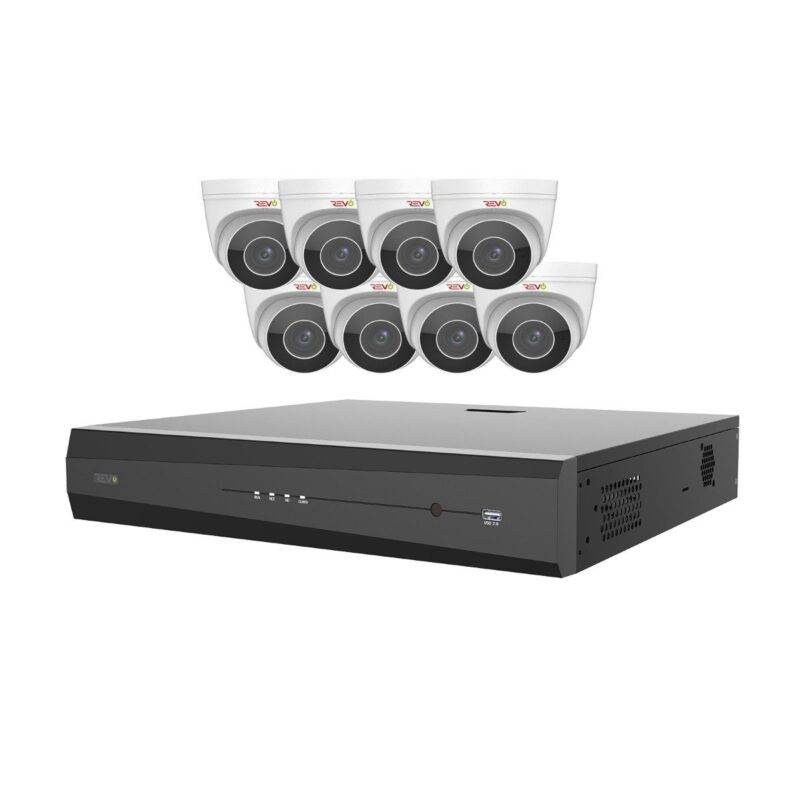

Ultra HD Plus 16 Ch. NVR Surveillance System with 8 Audio Capable Motorized Cameras
SKU: RUP161BNDL-11
Original price was: $2,094.74.$1,885.26Current price is: $1,885.26.
-10%
FREE delivery
Same Day Dispatch
In stock
Core features
- 16 Ch. 4K IP NVR with 16 RJ45 PoE Ports
- 4 TB pre-installed HDD
- 4MP Motorized Varifocal Turret Cameras with built-in Microphone (8)
- 1-ch HDMI, 1ch VGA. HDMI at up to 4K(3840×2160) resolution (Connect up to 3 monitors)
- H.265 Compression
- Supports easy firmware upgrade via Cloud
- 100’ CAT5e Cable (8)
- Two-Step Smartphone View Setup via “REVO ULTRA” app – iPhone and Android
- Myrevocloud.com – Access your Ultra NVR from virtually any Internet Explorer browser
Delivery & Returns
For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.
Additional information
| Weight | 40.0 kg |
|---|---|
| Open Box | No |
| Select a Warranty | 1 Year (Included), 2 Year |
| Upc | 045924598240 |
| Type | ip |
| Audio Recording | Yes |
| Disk Space | 4 TB |
Technical Specifications
DVR-RUP16NVR1 16 Channel Digital Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 16-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
|---|---|
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 320Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | HDMI/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Decoding | |
|---|---|
| Compression | H.265/H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30 |
| Software | |
|---|---|
| Computer Operating System | Windows, Mac OS |
| Internet Viewing | HomeSafe View App |
| Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
| Hard Disk | |
|---|---|
| SATA | 4 SATA interface |
| Capacity | up to 8TB for each disk |
| External Interface | |
|---|---|
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Serial Interface | 1 x RS485 |
| USB Interface | Front panel: 1 x USB2.0 Rear panel: 1 x USB3.0 |
| Alarm in | 16-CH |
| Alarm out | 4-CH |
| Power Output | 12 VDC |
| PoE | |
|---|---|
| Interface | 8 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30 W for single port Max 200W in total (12.5 W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
|---|---|
| Power Supply | 100 ~ 240 VAC |
| Consumption ( without HDD and PoE ) | ≤ 20 W |
| Working Temperature | +14°F ~ +131°F |
| Working Humidity | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 86 × 442 × 425mm ( 3.4” × 17.4” × 16.7” ) |
| Weight ( without HDD ) | ≤ 11.55 lb (5.24 Kg) |
| Weight ( without HDD ) | ≤ 5.34 lb (2.42 Kg) |
RUCT2812-1 4MP WDR (Motorized) VF Eyeball Network IR Camera
| Camera | |
|---|---|
| Sensor | 1/3″, progressive scan, 4.0 megapixel, CMOS |
| Lens | 2.7~12 mm,AF automatic focusing and motorized zoom lens |
| Angle of view(H) | 91.0°~27.0° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.01 Lux (F1.4, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
|---|---|
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
|---|---|
| Behavior Detection | Intrusion, cross line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
|---|---|
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|---|---|
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 8.16W |
| Dimensions (Ø x H) | Φ129 x 110 mm (Ø5.08” x 4.3”) |
| Weight | 0.67 kg (1.48lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
Videos
Disclaimer
Specs and design can change without previous notice
