With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra’s unique design complements any home or business. The Revo Ultra’s superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 8 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. The 8 indoor/outdoor bullet cameras feature, optical grade glass, 3D Digital Noise Reduction, massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. IR arrays illuminate the scene up to an unprecedented 100′ in total darkness. Revo Ultra cameras are able to handle temperatures as hot as 140F and as cold as -31F. View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you’d like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.

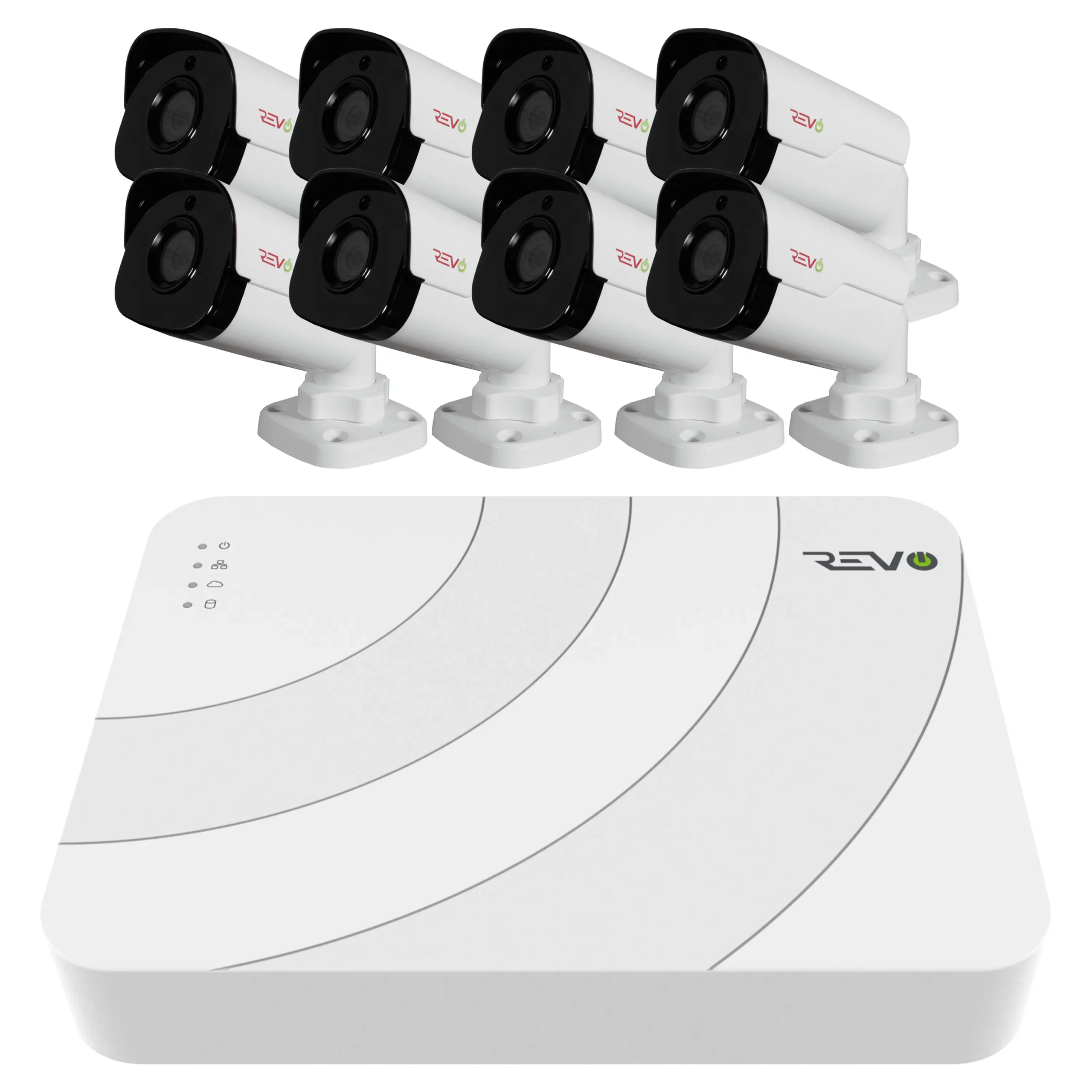

Ultra HD Camera security system with 8 Channel NVR Surveillance
SKU: RU81B8G-2T
Original price was: $881.99.$793.79Current price is: $793.79.
-10%FREE delivery
Same Day Dispatch
In stock
Core features
- 8 Ch. 2TB IP NVR with 8 RJ45 PoE Ports
- 4MP Bullet Cameras with 100’ Night Vision (8)
- 100’ Cat 5e Cable Included (8)
- H.265 Compression
- 4K HDMI output (Easy to connect to a 4K monitor or TV)
- Corridor View Mode – Perfect for hallways, doors, windows.
- Two-Step Smartphone View Setup – iPhone and Android
- Myrevocloud.com – Access your Ultra NVR from virtually any Internet Explorer browser
Delivery & Returns
For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.
Additional information
Weight | 35.0 kg |
---|---|
Open Box | No |
Select a Warranty | 1 Year (Included), 2 Year |
Brand | REVO |
Upc | 812237019034 |
Quick Features | 4 Megapixel HD Resolution, cameras included, Night Vision, Supports up to 8 channels, 1080p Full HD Resolution, Packed with XXTB Hard Drive |
Product Manual | |
Type | ip |
Disk Space | 2 TB |
Technical Specifications
RUCB36-1 4MP IR Bullet Camera
Camera | |
---|---|
Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
Lens | 3.6mm@F1.8 Angle of view(H): 90.5° |
Shutter | Auto/Manual, 1/6~1/8000 s |
Min. Illumination | Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
IR Range | Up to 30m (98 ft) IR range |
S/N | >55dB |
WDR | 120dB |
Noise Reduction | 2D/3D |
Video | |
---|---|
Max. Resolution | 2592×1520 |
Video Compression | H.264/MJPEG |
Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
Video Streaming | Triple |
9:16 Corridor Mode | Supported |
ROI | Supported |
OSD | Up to 8 OSDs |
Motion Detection | Up to 2 areas |
Privacy Mask | Up to 4 areas |
Network | |
---|---|
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
Compatible Integration | API |
Interface | |
---|---|
Network | 1 RJ45 10M/100M Base-TX Ethernet |
General | |
---|---|
Power | 12 V DC, or PoE (IEEE802.3 af 2.0 W (6.4 W with IR on) |
Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
Weight | 0.45 kg (0.99 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
Ingress Protection | IP66 |
DVR-RU8NVR2 8 Channel Digital Video Recorder
Video and Audio | |
---|---|
IP Video Input | 8-ch |
Two-way audio Input | 1-ch, RCA |
Network | |
---|---|
Incoming bandwidth | 60Mbps |
Outgoing bandwidth | 64Mbps |
Remote connection | 128 |
Video/Audio Output | |
---|---|
HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 8-ch |
Decoding | |
---|---|
Compression | H.265/H.264 |
Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25 |
Software | |
---|---|
Computer Operating System | Windows, Mac OS |
Internet Viewing | HomeSafe View App |
Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
Hard Disk | |
---|---|
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
External Interface | |
---|---|
Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 2 x USB2.0 |
PoE | |
---|---|
Interface | 4 independent 100 Mbps PoE network interfaces |
Max Power | Max 30 W for single port Max 54W in total (13.5 W for each) |
Supported Standard | IEEE 802.3at |
General | |
---|---|
Power Supply | 52V DC |
Consumption ( without HDD and PoE ) | ≤ 8 W |
Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
Working Humidity | 10% ~ 90% |
Dimensions | 270 × 205 × 42 mm ( 1.7” × 10.6” × 8.1” ) |
Weight ( without HDD ) | ≤ 0.62 Kg ( 1.50 lb ) |
Videos
Disclaimer
Specs and design can change without previous notice
