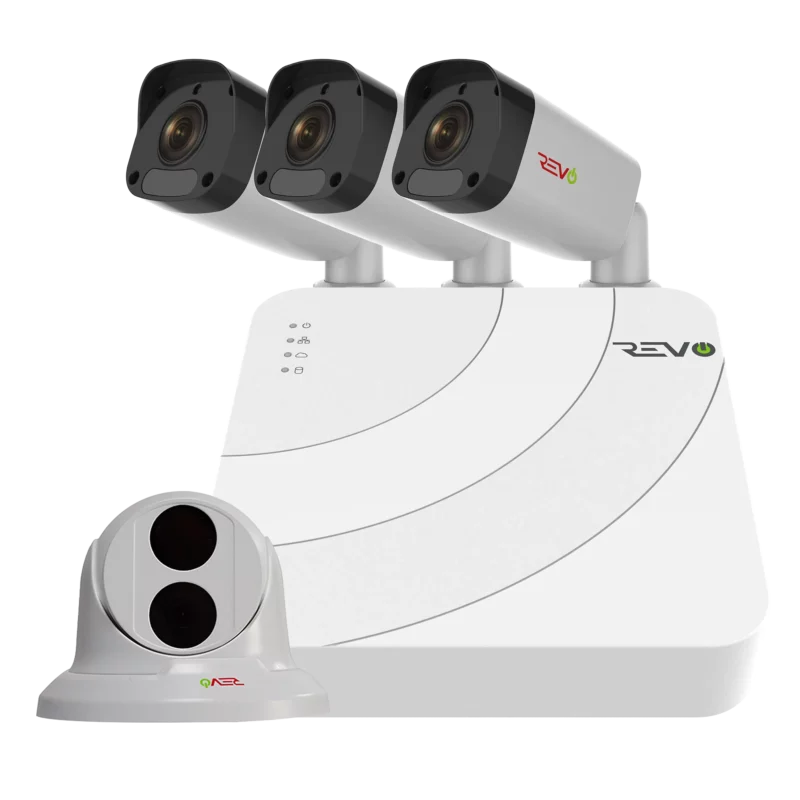

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra’s unique design complements any home or business. The Revo Ultra’s superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The RU42NEBNDL1 system features a high powered 4CH H.265 NVR, 3 Indoor/Outdoor Bullet and 1 Turret Cameras. The cameras feature 3D Digital Noise Reduction, massive 4 Megapixel Sensors – double the resolution of standard 1080p HD. Smart IR LEDs illuminate the scene up to an impressive 80′ in total darkness. The cameras are built for the outdoors, handling temperatures as hot as 140F and as cold as -31F, rain or shine. View your Revo Ultra 4MP system from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you’d like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
NDAA Compliant
Ultra HD 4 Ch. 1TB NVR Home Surveillance System with 4 4MP Security Cameras
SKU: RU42NEBNDL1
Original price was: $496.11.$446.50Current price is: $446.50.
-10%
FREE delivery
Same Day Dispatch
In stock
Core features
- 4 Ch. 4K, H.265 IP NVR with 4 RJ45 PoE Ports
- 1 TB Video Surveillance Grade HDD
- 4MP Indoor/Outdoor Bullet and Turret Cameras (4)
- True WDR provides optimum picture clarity in challenging lighting conditions
- 4K HDMI output (Easy to connect to a 4K monitor or TV)
- Software updates via Cloud (Recorder & Cameras)
- 100’ Cat 5e Cable Included (4)
Delivery & Returns
For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.
Additional information
| Weight | 28.0 kg |
|---|---|
| Specifications | Spec Sheet Coming Soon! |
| Select a Warranty | 1 Year (Included), 2 Year |
| Open Box | No |
| Upc | 810062450480 |
| Type | ip |
| Disk Space | 1 TB |
Technical Specifications
RUCT36-1 4MP IR Fixed Dome Camera
| Camera | |
|---|---|
| Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 77.6° |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR | 30m (98 ft) IR range |
| AWB(Auto white balance) | Auto/manual |
| Gain Control | Auto/manual |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 2592×1520 |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| 9:16 Corridor Mode | Supported |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC, or PoE (IEEE802.3 af) Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight | 0.33 kg (0.73 lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
RUCB2M-1 1080p IR Bullet Camera
| Camera | |
|---|---|
| Sensor | 1/2.8″ , 4.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 79.7° |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55dB |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
|---|---|
| Max. Resolution | 1920×1080 |
| Video Compression | H.264/MJPEG |
| Frame Rate | 1080p (1920×1080): Max. 30 fps; 720p (1280×720): Max. 30 fps ; D1 (720×576): Max. 30fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | API |
| Interface | |
|---|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|---|---|
| Power | 12 V DC, or PoE (IEEE802.3 af Power Consumption: Max 6.4 W with IR on |
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
DVR-RU4NVR2 4 Channel Digital Video Recorder
| Video and Audio | |
|---|---|
| IP Video Input | 4-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
|---|---|
| Incoming bandwidth | 60Mbps |
| Outgoing bandwidth | 64Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
|---|---|
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Decoding | |
|---|---|
| Compression | H.265/H.264 |
| Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25 |
| Software | |
|---|---|
| Computer Operating System | Windows, Mac OS |
| Internet Viewing | HomeSafe View App |
| Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
| Hard Disk | |
|---|---|
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
|---|---|
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| PoE | |
|---|---|
| Interface | 4 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30 W for single port Max 54W in total (13.5 W for each) |
| Supported Standard | IEEE 802.3at |
| General | |
|---|---|
| Power Supply | 48V DC |
| Consumption ( without HDD and PoE ) | ≤ 8 W |
| Working Temperature | +14°F ~ +131°F (-10°C ~ + 55°C) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 42 x 205 x 205mm (1.7’’ x 8.1’’ x 8.1’’) |
| Weight ( without HDD ) | 1.3 lb (0.59kg) |
Videos
Disclaimer
Specs and design can change without previous notice
