NDAA Compliant

Sale!

Ultra HD 16 Ch. 4TB NVR Home Surveillance System with 8 4MP IP Bullet Cameras

SKU: RU162B8G-4T

$1,050.19

-20%

FREE delivery

Same Day Dispatch

Ultra HD 16 Ch. 4TB NVR Home Surveillance System with 8 4MP IP Bullet Cameras $1,050.19

Storage: No selection

More options

Clear

Add to wishlist

Core features

16 Ch. 4K H.265 IP NVR with built-in 16 RJ45 PoE Ports
4MP Indoor/Outdoor IP Bullet Cameras (8)
4TB Video Surveillance Grade HDD
Hassle free software upgrade via Cloud
4K Recording Capability
4K Video Output compatible with 4K monitors
100’ Cat 5e Cable (8)
Myrevocloud.com – Access your NVR from virtually any IE browser.
Two-Step Smartphone View Setup – iPhone and Android.
Revo Ultra Remote Computer Software – View multiple units at once

Delivery & Returns

For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.

Gallery
Description
Additional information
Technical Specifications
Videos
Disclaimer

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Its unique design complements any home or business. The Revo Ultra’s superb video quality is based on IP technology. The RU162B8G-4T is a complete, plug and play HD surveillance system with 16 channel NVR, 4TB and 8x Four Megapixel HD Indoor/Outdoor Bullet cameras. The REVO ULTRA NVR is powerful featuring state of the art H.265 Compression and 4K video output. Revo Ultra cameras features optical grade, IR anti reflection glass, massive 4 Megapixel Sensors, double the resolution of standard 1080p. They also come equipped with Smart commercial grade “OSRAM” LEDs. They strongly and evenly illuminate the scene up to an unprecedented 100′ in total darkness. Night vision video quality is unmatched. The cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F. S.M.A.R.T. technology enables the system to monitor its own health and alert the user of any malfunction. The polished look and intuitive feel of the Ultra’s interface is a joy for everyday use whether you’re using the NVR itself, the Mobile App, Computer Software or Browser. Setup is a snap with PoE and Cat 5e cable. One cable carries everything between the Revo Ultra camera and NVR.

Additional information

Weight	40.0 kg
Open Box: No selection	No
Storage: No selection	4 TB, 5 TB, 6 TB, 7 TB, 8 TB
Upc: No selection	812237010277
Type: No selection	ip
Disk Space: No selection	4 TB

Technical Specifications

RUCMD36-1 4MP Network IR Fixed Dome Camera

Camera
Sensor	1/3″, 4 megapixel, progressive scan, CMOS
Lens	3.6mm@F1.8 Angle of view(H): 77.6°
Min. Illumination	Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR
Shutter	Auto/Manual, 1/6~1/8000 s
Day/Night	IR-cut filter with auto switch (ICR)
IR	100 ft IR range
AWB(Auto white balance)	Auto/manual
Gain Control	Auto/manual
WDR	120dB
Noise Reduction	2D/3D

Video
Max. Resolution	2592×1520
Video Compression	H.265/H.264/MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
OSD	Up to 8 OSDs
9:16 Corridor Mode	Supported
Motion Detection	Up to 2 areas
Privacy Mask	Up to 4 areas

Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration	API

Interface
Network	10M/100M Base-TX Ethernet

General
Power	12 V DC±25%, PoE (IEEE 802.3af) Power consumption: 3.5 W (5.5W with IR on)
Dimensions (Ø x H)	Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight	0.45 kg (0.99 lb)
Operating Conditions	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection	IP66

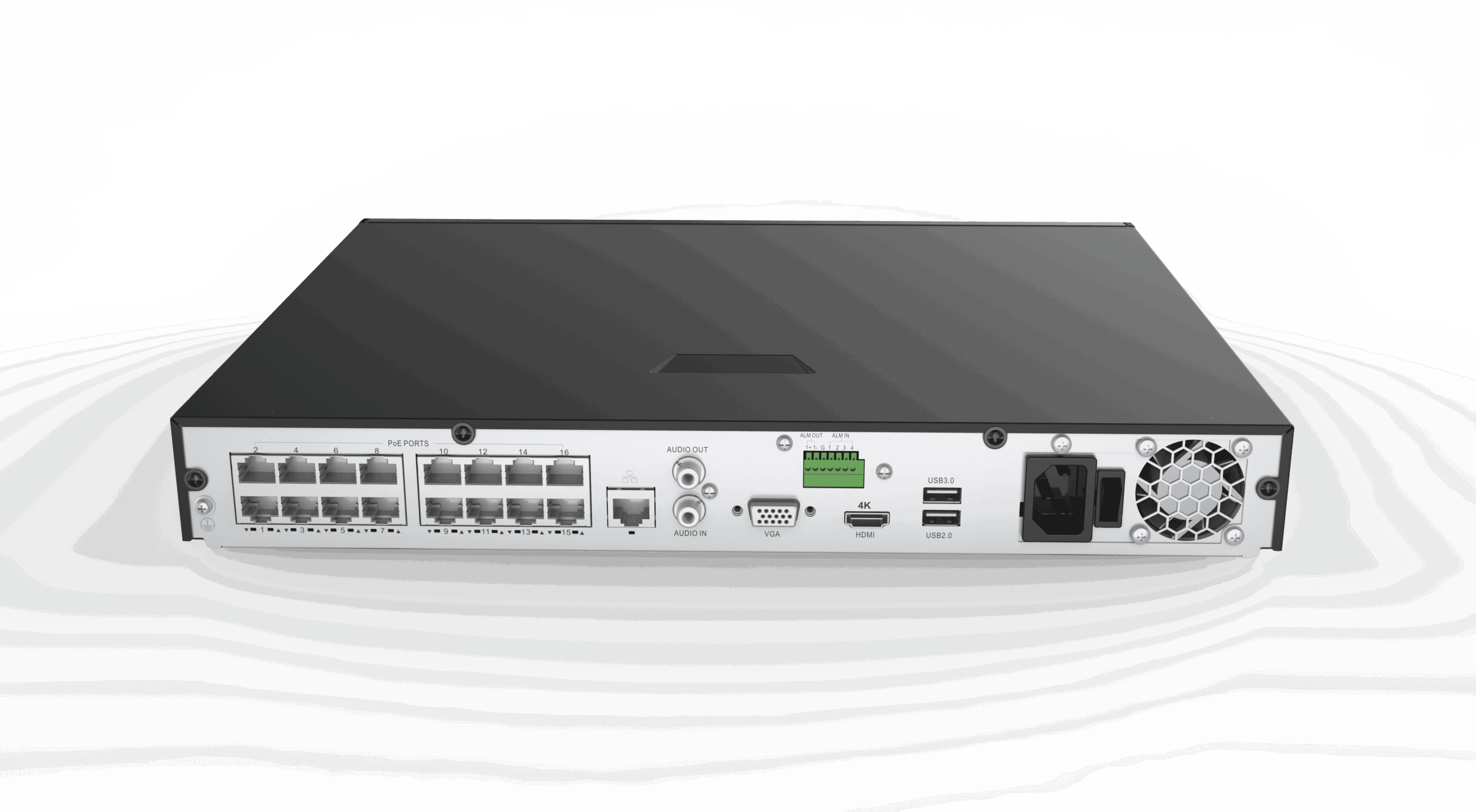

DVR-RU16NVR2 16 Channel Digital Video Recorder

Video and Audio
IP Video Input	16-ch
Two-way audio Input	1-ch, RCA

Network
Incoming bandwidth	160Mbps
Outgoing bandwidth	320Mbps
Remote connection	128

Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch

Decoding
Compression	H.265/H.264
Live view/ Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@30

Software
Computer Operating System	Windows, Mac OS
Internet Viewing	HomeSafe View App
Handheld Device Supported	iOS, Android, 3G/4G Smartphones & Tablets

Hard Disk
SATA	2 SATA interface
Capacity	up to 8TB for each disk

External Interface
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0 Rear panel: 1 x USB3.0
Alarm in	4-CH
Alarm out	4-CH

PoE
Interface	16 independent 100 Mbps PoE network interfaces
Max Power	Max 30 W for single port Max240W in total (15 W for each)
Supported Standard	IEEE 802.3at

General
Power Supply	100 ~ 240 VAC
Consumption ( without HDD and PoE )	≤ 20 W
Working Temperature	+14°F ~ +131°F
Working Humidity	10% ~ 90%
Dimensions	380mm x 315mm x 46mm ( 14.95” × 12.4” × 1.81” )
Weight ( without HDD )	≤ 5.34 lb (2.42 Kg)

Videos

**Revo America** – How to create my Revo account

**Revo America** – How To Setup Your Revo NVR

**Revo America** – How To View Your Cameras Remotely

**Revo America** – How To Network Your Revo NVR

**Revo America** – How To Connect Cameras To The NVR

**Revo America** – How To Add NVR To myrevocloud Account

Disclaimer

Specs and design can change without previous notice
