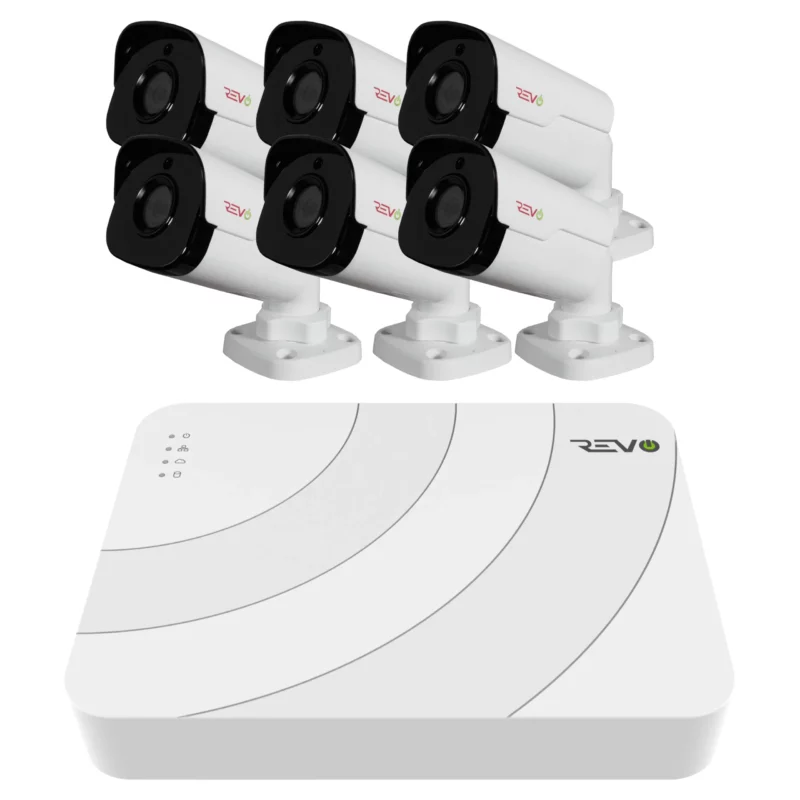

Ultra HD Audio Capable 8 Ch. 2TB NVR Surveillance System with 6 4 Megapixel Cameras

SKU: RU82B6GA-2T

CUSTOM BADGE!

$771.74

(4 customer reviews)

checkmark FREE delivery

checkmark Same Day Dispatch

In stock

Add to Cart

8 channel complete surveillance systems,
Ultra HD Audio Capable 8 Ch. 2TB NVR Surveillance System with 6 4 Megapixel Cameras $771.74

Free shipping on all orders over $100

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Core features
  • 8 Ch. IP NVR with 8 RJ45 PoE Ports
  • Pre-installed 2 TB Video Surveillance Grade HDD
  • 4MP Bullet Camera with built-in microphone (6)
  • 100’ Cat 5e Cable Included (6)
  • H.265 Compression
  • 4K HDMI output (Easy to connect to a 4K monitor or TV)
  • Supports easy firmware upgrade via Cloud (Recorder & Cameras)
  • Two-Step Smartphone View Setup – iPhone and Android
  • Myrevocloud.com – Access your Ultra NVR from IE
Delivery & Returns

For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.

8 channel complete surveillance systems,
Ultra HD Audio Capable 8 Ch. 2TB NVR Surveillance System with 6 4 Megapixel Cameras
$771.74

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the perfect solution for your micro market.

The Revo Ultra’s superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 8 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. The 6 Indoor/Outdoor bullet cameras feature, optical grade glass, 3D Digital Noise Reduction, massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. IR arrays illuminate the scene up to an unprecedented 100′ in total darkness. The “RUCB36-1A” Bullet camera has a built-in microphone for audio streaming and recording.

View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com.. Want to view and manage multiple Revo Ultra units at different locations from a single computer? With Revo ULTRA REMOTE Software, design your own custom layout of which cameras you’d like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.

Additional information

Weight 32.0 kg
Open Box

No

Select a Warranty

1 Year (Included), 2 Year

Upc

045924598219

Type

ip

Audio Recording

Yes

Disk Space

2 TB

Technical Specifications

...

RUCB36-1 4MP IR Bullet Camera

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 3.6mm@F1.8 Angle of view(H): 90.5°
Shutter Auto/Manual, 1/6~1/8000 s
Min. Illumination Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 30m (98 ft) IR range
S/N >55dB
WDR 120dB
Noise Reduction 2D/3D
Video
Max. Resolution 2592×1520
Video Compression H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Motion Detection Up to 2 areas
Privacy Mask Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af
2.0 W (6.4 W with IR on)
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection IP66


...

DVR-RU8NVR2 8 Channel Digital Video Recorder

Video and Audio
IP Video Input 8-ch
Two-way audio Input 1-ch, RCA
Network
Incoming bandwidth 60Mbps
Outgoing bandwidth 64Mbps
Remote connection 128
Video/Audio Output
HDMI/VGA Output VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Decoding
Compression H.265/H.264
Live view/ Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25
Software
Computer Operating System Windows, Mac OS
Internet Viewing HomeSafe View App
Handheld Device Supported iOS, Android, 3G/4G Smartphones & Tablets
Hard Disk
SATA 1 SATA interface
Capacity up to 6TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
PoE
Interface 4 independent 100 Mbps PoE network interfaces
Max Power Max 30 W for single port Max 54W in total (13.5 W for each)
Supported Standard IEEE 802.3at
General
Power Supply 52V DC
Consumption ( without HDD and PoE ) ≤ 8 W
Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity 10% ~ 90%
Dimensions 270 × 205 × 42 mm ( 1.7” × 10.6” × 8.1” )
Weight ( without HDD ) ≤ 0.62 Kg ( 1.50 lb )

Videos

How to create my Revo account
Revo America – How to create my Revo account
How To Setup Your Revo NVR
Revo America – How To Setup Your Revo NVR
How To View Your Cameras Remotely
Revo America – How To View Your Cameras Remotely
How To Network Your Revo NVR
Revo America – How To Network Your Revo NVR
How To Connect Cameras To The NVR
Revo America – How To Connect Cameras To The NVR
How To Add NVR To myrevocloud Account
Revo America – How To Add NVR To myrevocloud Account

Disclaimer

Specs and design can change without previous notice

4 reviews for Ultra HD Audio Capable 8 Ch. 2TB NVR Surveillance System with 6 4 Megapixel Cameras

  1. Sejad

    This is a really great product. I don’t need a security system anymore. The picture quality is amazing. The installation is simple, anybody can do it. My friend spent three times more money on his NVR and after he saw my camera he became upset with his NVR system. Lol I gave him the recommendation and advice to purchase the REVO. And now he doesn’t have to spend over $1500, instead he can spend a little over $500

  2. Tizzo

    I first purchased the RU41B4E-1T System to see how the quality and bang for my buck was before purchasing a higher end system from Revo. First impressions were outstanding! Came with everything I needed to get the install done and the final results were above my expectations in terms of overall satisfaction. So then I purchased the RU162B8E-2T System to expand on and the results were mixed with this purchase. The NVR and cameras were excellent quality and felt professional. However, the data cable that comes with typical systems like this are indeed fake, misadvertised, and/or misleading. The Cat 5e cables are not double shielded nor are they up to UL standards. They lack the number of twists and are made of stranded Aluminum!! The quality of this cable could damage or possibly degrade the overall performance of the system. My best advice would be to buy bulk bare copper Cat 6 or higher cabling and install it for the cameras and networking. Especially if it is PoE cameras like my system. The NVR and cameras are solid and basically your money is paying for that equipment alone. Everything else is courtesy equipment that they give you to get your system started. Use the best quality products with the NVR and cameras and they should go a long way for your return investment.

  3. annie

    Installing this NVR system was smooth. I thoroughly followed the instructions in the box and installed it successfully. The other features that I like are its camera quality and ability to capture clear images in the night.

  4. Adrian

    The remote monitoring feature really comes in handy as I have to travel a lot because of work. I have installed it in my home and thinking of using Revo systems for my office as well.
