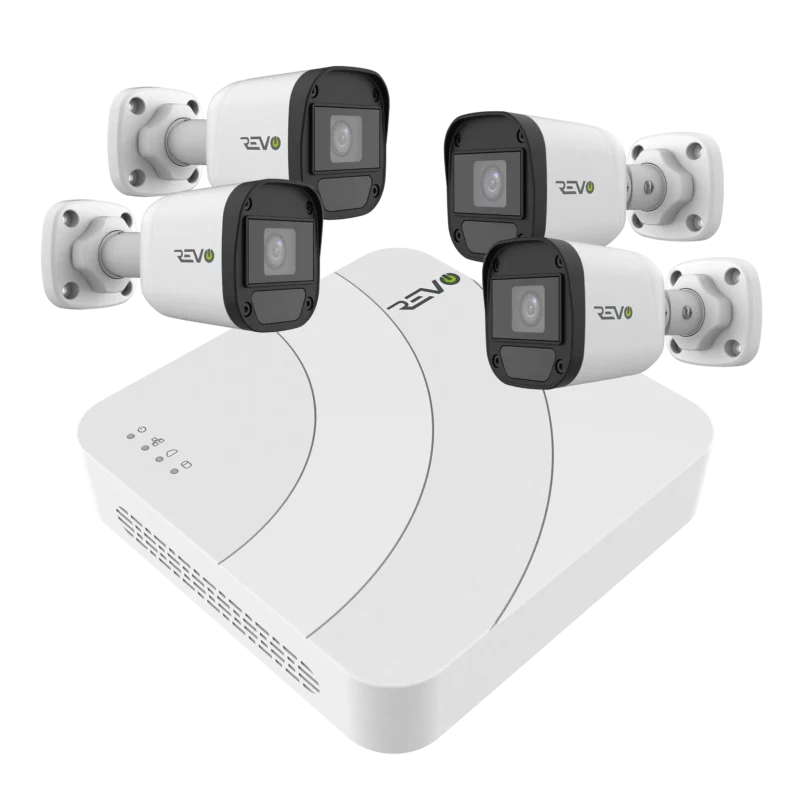

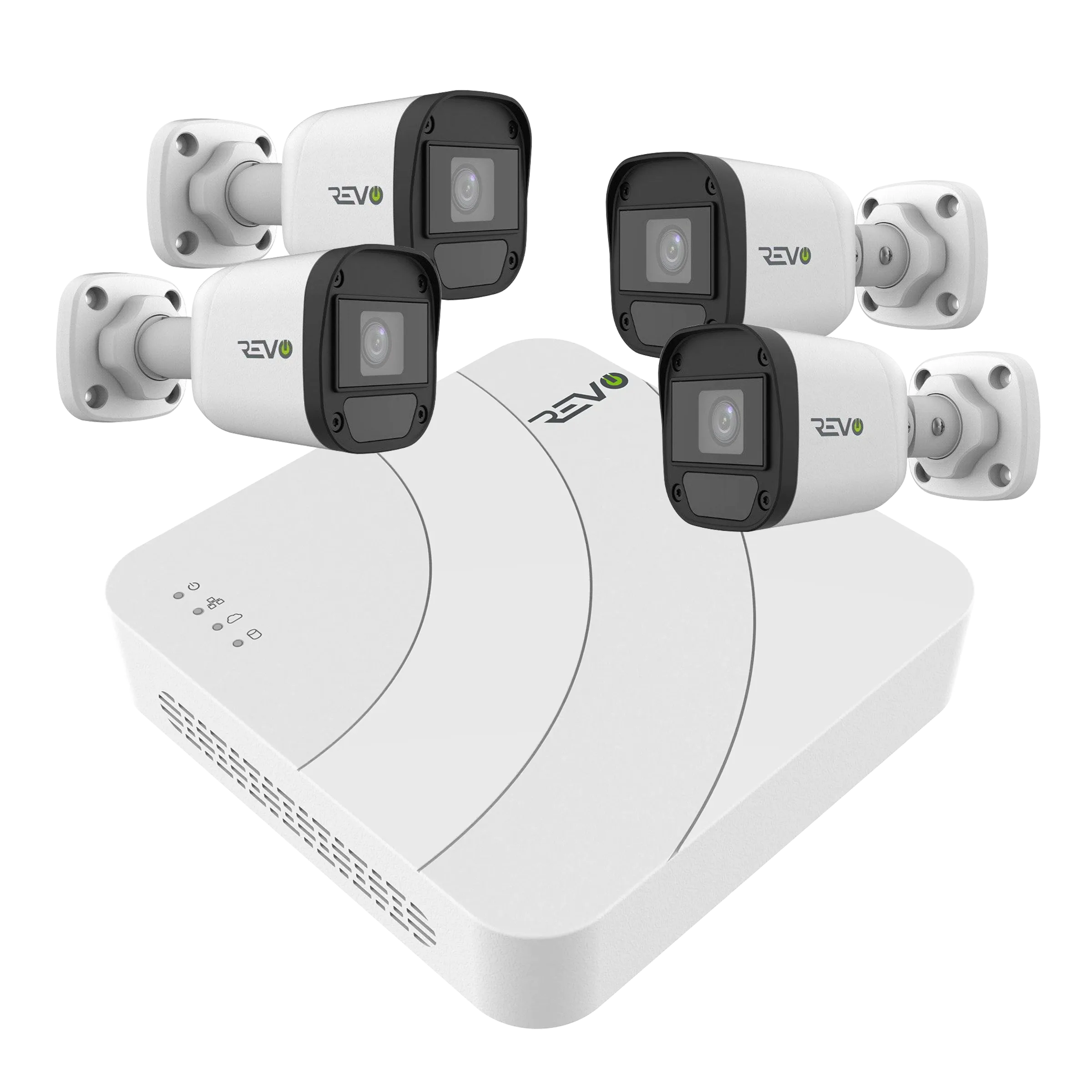

Revo Ultra Blue Series 4 CH IP Video Surveillance System, 4 CH 4K NVR, 1TB HDD, 4X 4 Megapixel Indoor/Outdoor IR Bullet Cameras – Remote Access Via SMART Phone, Tablet, Pc & Mac

Name: Revo 4 Ch. IP Video Surveillance System - Best DIY Home Camera System
SKU: RU42ABNDL-2
Price: 396.89 USD
Availability: InStock
Rating: 4.666666666666667 (3 reviews)

SKU: RU42ABNDL-2

CUSTOM BADGE!

Original price was: $440.99.Current price is: $396.89.

-10%

checkmark FREE delivery

checkmark Same Day Dispatch

In stock

Add to wishlist

Core features

4 Ch. 4K H.265 IP NVR with built-in 4 RJ45 PoE Ports
4MP Indoor/Outdoor IP Bullet Cameras (4)
1TB Video Surveillance Grade HDD
Hassle free software upgrade via Cloud
4K Recording Capability
4K Video Output compatible with 4K monitors
100’ Cat 5e Cable (4)
Myrevocloud.com – Access your NVR from virtually any IE browser.
Two-Step Smartphone View Setup – iPhone and Android.
Revo Ultra Remote Computer Software – View multiple units at once

Delivery & Returns

For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.

Gallery
Description
Additional information
Technical Specifications
Videos
Disclaimer

“With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the best that Revo offers. Its unique design complements any home or business. The Revo Ultra’s superb video quality is based on IP technology. The RU42ABNDL-2 is a complete, plug-and-play HD surveillance system with 4 channel NVR, 1TB, and 4x Four Megapixel HD Indoor/Outdoor Bullet cameras. The REVO ULTRA NVR is powerful featuring state-of-the-art H.265 Compression and 4K video output. Revo Ultra cameras feature optical grade, IR anti-reflection glass, massive 4 Megapixel Sensors, and double the resolution of standard 1080p. They also come equipped with Smart commercial grade “OSRAM” LEDs. They strongly and evenly illuminate the scene up to 100′ in total darkness. Night vision video quality is unmatched. The cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F. S.M.A.R.T. technology enables the system to monitor its own health and alert the user of any malfunction. The polished look and intuitive feel of the Ultra’s interface is a joy for everyday use whether you’re using the NVR itself, the Mobile App, Computer Software, or Browser. Setup is a snap with PoE and Cat 5e cable. One cable carries everything between the Revo Ultra camera and NVR. “

Additional information

Weight	25.0 lbs
Open Box	No
Select a Warranty	1 Year (Included), 2 Year
Upc	045924598875
Type	ip
Disk Space	1 TB

Technical Specifications

RUCB2M-1 1080p IR Bullet Camera

Camera
Sensor	1/2.8″ , 4.0 megapixel, progressive scan, CMOS
Lens	3.6mm@F1.8 Angle of view(H): 79.7°
Shutter	Auto/Manual, 1/6~1/8000 s
Min. Illumination	Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 30m (98 ft) IR range
S/N	>55dB
WDR	120dB
Noise Reduction	2D/3D

Video
Max. Resolution	1920×1080
Video Compression	H.264/MJPEG
Frame Rate	1080p (1920×1080): Max. 30 fps; 720p (1280×720): Max. 30 fps ; D1 (720×576): Max. 30fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
OSD	Up to 8 OSDs
Motion Detection	Up to 2 areas
Privacy Mask	Up to 4 areas

Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration	API

Interface
Network	1 RJ45 10M/100M Base-TX Ethernet

General
Power	12 V DC, or PoE (IEEE802.3 af Power Consumption: Max 6.4 W with IR on
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection	IP66

DVR-RU4NVR2 4 Channel Digital Video Recorder

Video and Audio
IP Video Input	4-ch
Two-way audio Input	1-ch, RCA

Network
Incoming bandwidth	60Mbps
Outgoing bandwidth	64Mbps
Remote connection	128

Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	8-ch

Decoding
Compression	H.265/H.264
Live view/ Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25

Software
Computer Operating System	Windows, Mac OS
Internet Viewing	HomeSafe View App
Handheld Device Supported	iOS, Android, 3G/4G Smartphones & Tablets

Hard Disk
SATA	1 SATA interface
Capacity	up to 6TB for each disk

External Interface
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0

PoE
Interface	4 independent 100 Mbps PoE network interfaces
Max Power	Max 30 W for single port Max 54W in total (13.5 W for each)
Supported Standard	IEEE 802.3at

General
Power Supply	48V DC
Consumption ( without HDD and PoE )	≤ 8 W
Working Temperature	+14°F ~ +131°F (-10°C ~ + 55°C)
Working Humidity	10% ~ 90%
Dimensions	42 x 205 x 205mm (1.7’’ x 8.1’’ x 8.1’’)
Weight ( without HDD )	1.3 lb (0.59kg)
